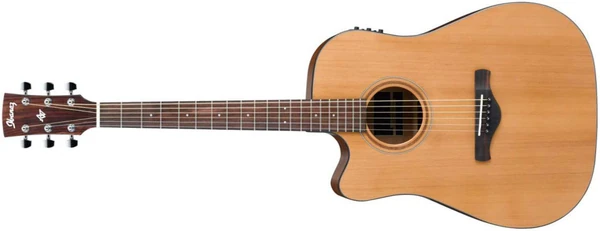

2016 AW65LECE LG
AW65LECE Natural Low Gloss Red copyright sprite

The AW65LECE is a left-handed Artwood series acoustic/ electric guitar model introduced by Ibanez in 2015. It is made in China.

The AW65ECE features a dreadnought body shape with a Venetian cutaway with a solid cedar top on mahogany back and sides with a low gloss finish. The soundhole is round with a wooden rosette. The mahogany neck has a 20-fret rosewood fingerboard with small white dot position markers. Components include an ivory plastic saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a plastic nut and chrome Ibanez tuning machines. Electronics consist of a Fishman Sonicore pickup connected to an Ibanez AEQ210TF preamp with onboard tuner powered by a 9V battery and a ¼" output.

The AW65ECE is a right-handed version. The AW65L is a similar non-electric model without the cutaway. The AW54LCE is a similar model with a mahogany/ okoume top.

The AW65LECE was discontinued in 2016.

Specifications

Specifications for AW65LECE
Years: 2015–2016
Areas: Europe
Made in: China
Finishes: Natural Low Gloss (LG)
Body
Body type:
Acoustic
Body shape:
Dreadnought w/ Venetian cutaway
Dimensions:
  Length: 508mm/ 20"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"
Top:

  Material: Solid cedar
  Finish: Low Gloss
  Binding: Black & white

Back/sides:

  Material: Mahogany
  Finish: Low Gloss

Soundhole shape:
Round
Soundhole rosette:
Wooden
Neck
Neck profile:
AW
Neck material:
Mahogany
Neck joint:
Dovetail
Scale length:
651mm / 25⅝"
Fingerboard:
Rosewood
Inlays:
Small white dot
Frets:
20
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
Ibanez AEQ210TF
Output jack(s):
¼" (integrated w/ battery box)
Battery:
9V
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage (black)
Saddle:
72mm x 2.9mm ivory plastic
Hardware color:
Chrome
Strings (factory):
D'Addario EXP11 .012–.053

Images

Additional details

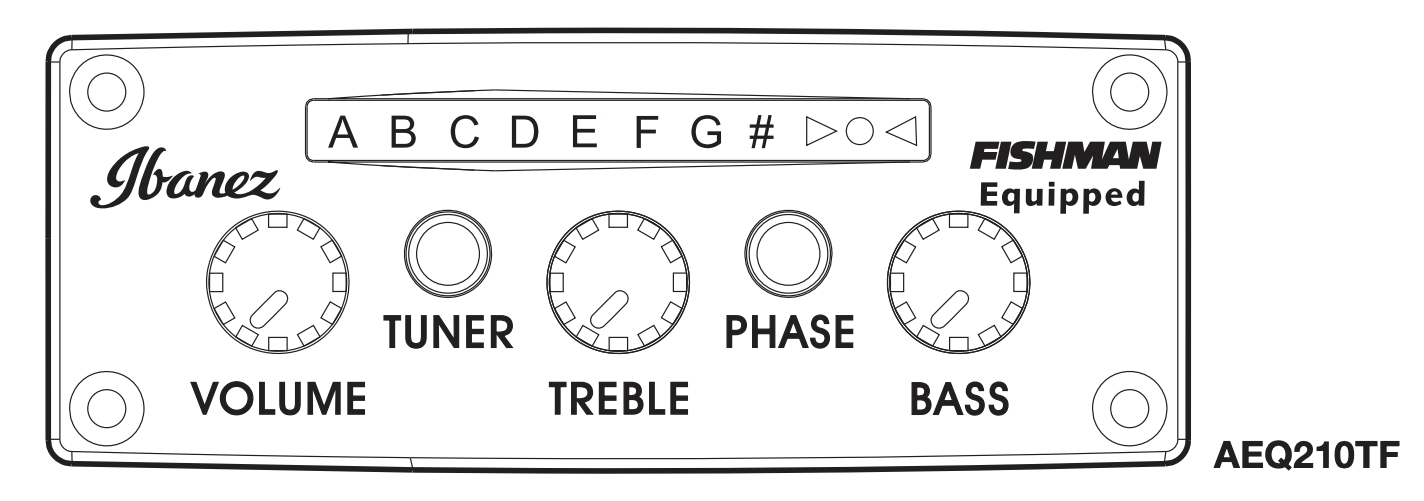

AEQ210TF preamp diagram
AEQ210TF preamp diagram
