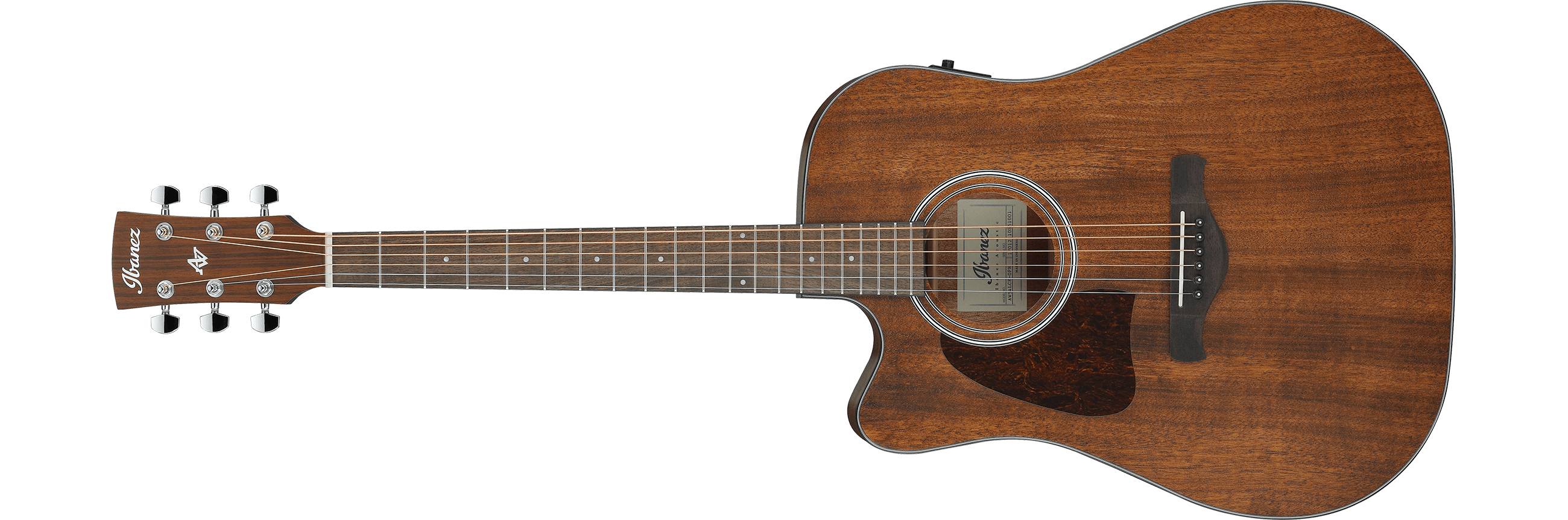

2019 AW54LCE OPN 1X 03
AW54LCE Open Pore Natural 2019 (more images) Red copyright sprite

The AW54LCE is a left-handed Artwood series acoustic/electric guitar model introduced by Ibanez in mid 2017. The AW54LCE is made in China.

The AW54LCE features a dreadnought body shape with a Venetian cutaway with a solid mahogany top with X bracing and mahogany back and sides with an open pore finish. The soundhole is round with a simple black and white acrylic rosette. It has an open pore finished mahogany neck with a 20-fret rosewood fingerboard with small white dot position markers. Components include an ivory plastic saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a plastic nut, a red tortoise pickguard and chrome tuning machines. Electronics consist of a Fishman Sonicore pickup connected to an Ibanez AEQ-SP2 preamp with onboard tuner powered by a 9V battery and balanced ¼" and XLR outputs.

For 2018 the rosewood fretboard and bridge were replaced with ovangkol. For 2019 the mahogany top, back and sides were replaced with okuome, the mahogany neck was replaced with nyatoh, the pickup was replaced with an Ibanez T-bar undersaddle pickup and the preamp was replaced with an Ibanez AEQ-TP2.

The AW54CE is a right-handed version. The AW54L is a similar non-electric model without the cutaway.

Specifications

Specifications for AW54LCE
Years: 2017–2020
Areas: Asia & Africa 2019 / Europe 2019 / North & South America and Oceania 2019 / USA
Made in: China
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Dreadnought w/ Venetian cutaway
Dimensions:
  Length: 508mm/ 20"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"
Top:

  Material: 2017–2018: Solid mahogany
    2019–2020: Solid okuome
  Bracing: X
  Finish: Open pore
  Binding: Black & white

Back/sides:

  Material: 2017–2018: Mahogany
    2019–2020: Okuome
  Finish: Open pore

Soundhole shape:
Round
Soundhole rosette:
Black & white acrylic
Neck
Neck profile:
AW
Neck material:
2017–2018: 1-piece mahogany
2019–2020: 1-piece nyatoh
Neck finish:
Open pore
Neck joint:
Dovetail
Scale length:
651mm/ 25⅝"
Fingerboard:
2017: Rosewood
2018–2020: Ovangkol
Inlays:
Small white dot
Frets:
20
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Components
Pickup:
2017–2018: Fishman Sonicore
2019–2020: Ibanez T-bar undersaddle
Preamp:
2017–2018: Ibanez AEQ-SP2 w/ onboard tuner
2019: Ibanez AEQ-TP2 w/ onboard tuner
Output jack(s):
Balanced XLR & ¼"
Battery:
9V
Bridge:
2017: Rosewood
2018–2020: Ovangkol (11mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dot)
Saddle:
Ivory plastic compensated (72mm x 2.9mm)
Hardware color:
Chrome
Pickguard:
Red tortoise
Strings (factory):
2017–2018: .012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
2019: .012/.016/.024/.032/.042/.053 (D'Addario EXP16)
2020 .012/.016/.024/.032/.042/.053 (D'Addario XTAPB1253)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional images/ details

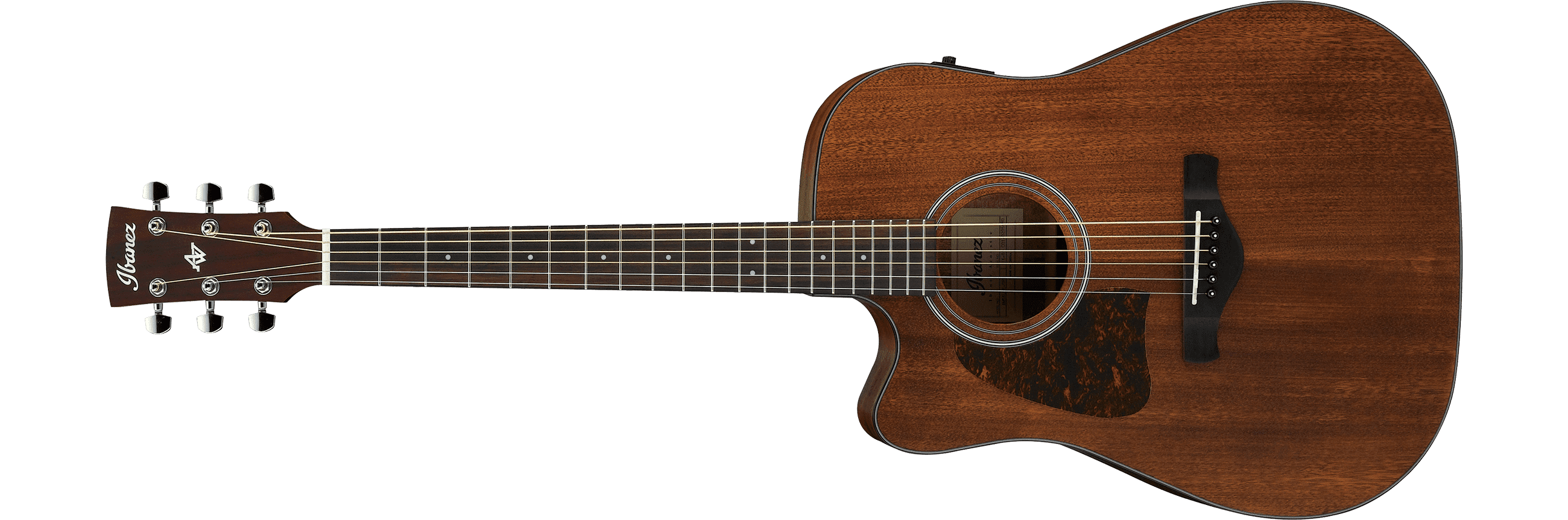

2018 AW54LCE OPN 1X 02 en 1
2018 model

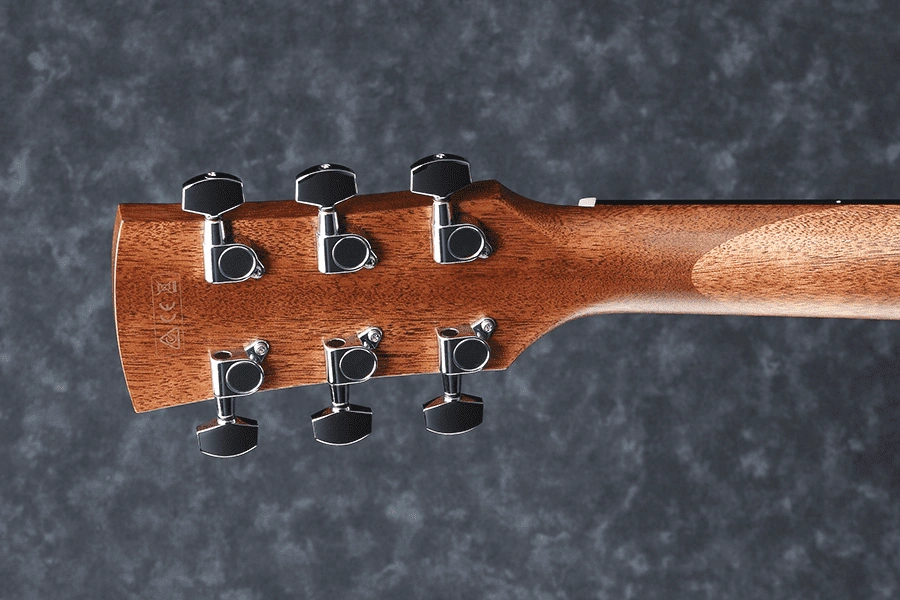

2018 AW54CE OPN 1X 04 headstock-rear
Headstock & tuners (2018)
2018 AW54LCE OPN 1X 02 sub en 1 rear-body
Rear body (2018)
AEQ-SP2 preamp
AEW-SP2 preamp
XLR quarter-inch output
XLR & ¼" balanced output
AEQ-SP2 preamp diagram
AEQ-SP2 preamp diagram
AEQ-TP2 preamp diagram
AEQ-TP2 preamp diagram
