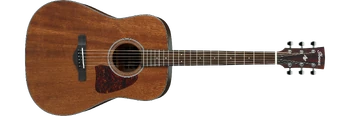

AW54 (2023) Open Pore Natural Red copyright sprite

The AW54 is an Artwood series acoustic guitar model introduced by Ibanez for 2014. The AW54 was made in China through 2021; production moved to Indonesia for the 2022 model.

The AW54 features a dreadnought body shape with a solid mahogany top with X bracing on laminated mahogany sides and back with an open pore finish. The soundhole is round with a simple black and white acrylic rosette. It has an open pore finished mahogany neck with a 20-fret rosewood fingerboard with small white dot position markers. Components include an ivory plastic saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a plastic nut, a tortoise pickguard and chrome tuning machines.

For 2018 the rosewood fretboard and bridge were replaced with ovangkol. For 2019 the mahogany top, back and sides were replaced with okoume and the mahogany neck was replaced with nyatoh. For 2022 the fretboard and bridge were replaced with laurel and the body and neck dimensions were changed slightly.

The AW54L is a left-handed version. The AW54CE is a similar acoustic/electric model with a cutaway body. The AW54MINI and AW54JR are slightly downsized shorter scale versions.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AW54
Name: AW54
Year(s) offered: 2014–2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: China (2014–2021) / Indonesia (2022–2024)
Price: MSRP: US$299.99 (2014)[1]
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Length:
    2014–2021: 508mm/ 20"
    2022–2024: 511mm/ 20⅛"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"
Top:
  Material: 2014–2018: Solid mahogany
                2019–2024: Solid okoume
  Bracing: X
  Finish: Open pore
  Binding: Black & white
Back/sides:
  Material: 2014–2018: Mahogany
                2019–2024: Okoume
  Finish: Open pore
Soundhole shape:
Round
Soundhole rosette:
Black & white acrylic
Neck
Neck profile:
2014–2021: AW
2022: AW54
2024: AW
Neck material:
2014–2018: 1-piece mahogany
2019–2024: 1-piece nyatoh
Neck finish:
Open pore
Neck joint:
Dovetail
Scale length:
2014–2021: 651mm/ 25⅝"2022–2024: 648mm/ 25½"
Fingerboard:
2014–2017: Rosewood
2018–2021: Ovangkol
2022–2024: Laurel
Inlays:
Small white dot
Frets:
20 nickel silver
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast (18:1 gear ratio)
Components
Bridge:
2014–2017: Rosewood
2018–2021: Ovangkol
2022–2024: Laurel (11mm string spacing)
Bridge pins:
Ibanez Advantage bridge pins (black w/ white dot)
Saddle:
72mm x 2.9mm ivory plastic
Hardware color:
Chrome
Pickguard:
Tortoise
Strings (factory):
2014–2019: .012/.016/.024/.032/.042/.053 (D'Addario EXP16)
2020–2024: .012/.016/.024/.032/.042/.053 (D'Addario XTAPB1253)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
2018 AW54 OPN
AW54 (2018)

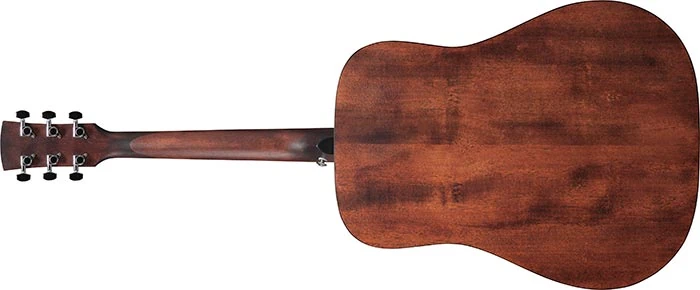

2023 AW54 OPN 1P 02 back
Rear view
2023 AW54 OPN 1P 02 front-3-4
Front ¾ view

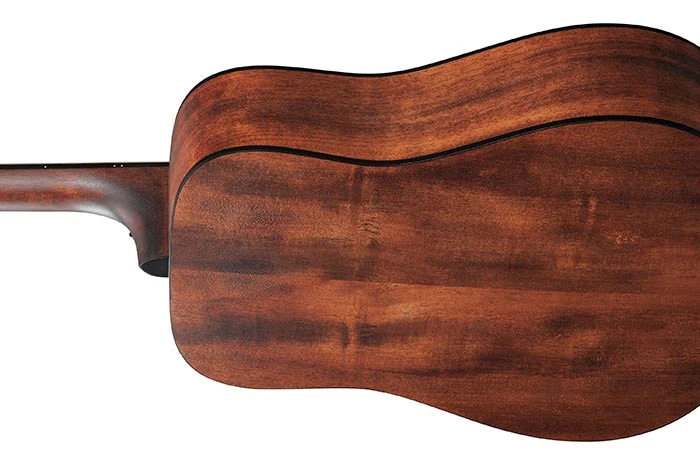

2023 AW54 OPN 1P 02 body-back
Back and top side

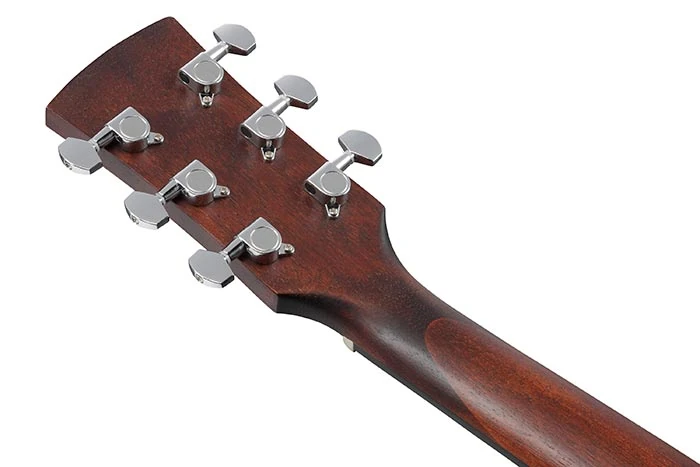

2023 AW54 OPN 1P 02 headstock-rear
Headstock and tuners

Video[]

Ibanez AW54OPN Artwood series
