2014 AW535CE NT 1X 01

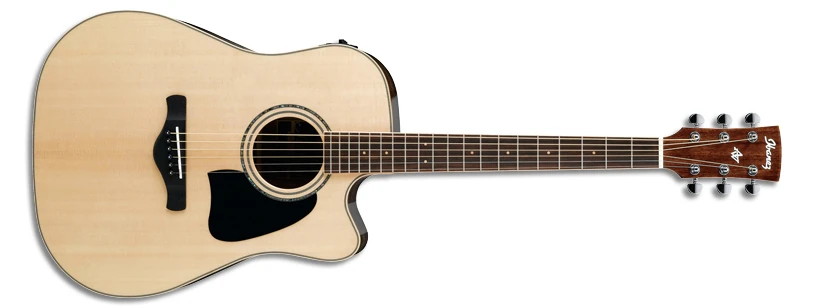

AW535CE Natural High Gloss (more images) Red copyright sprite

The AW535CE is an Artwood series acoustic-electric guitar model introduced by Ibanez for 2014. It was made in China.

The AW535CE features a dreadnought body shape with a soft Venetian cutaway constructed of a solid Sitka spruce top with maple binding on rosewood sides and a three piece rosewood and flamed maple back with wooden mosaic inlay and a gloss finish. The soundhole is round with an abalone rosette and a black pickguard. It has a mahogany neck with a 20-fret rosewood fingerboard with maple binding and maple dot position markers. Components include a compensated bone saddle in a rosewood bridge with Ibanez Advantage bridge pins, a bone nut, and chrome Grover die cast tuning machines with half-moon buttons.

Electronics consist of a Fishman Sonicore under saddle pickup connected to an Ibanez AEQ-SP2 pre-amp with an on-board tuner powered by a 9V battery and feeding balanced XLR and ¼" stereo outputs.

The AW535 is a related acoustic only model without the cutaway. The AC535CE is a related model with a grand concert body.

The AW535CE was discontinued after 2015.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AW535CE
Name: AW535CE
Year(s) offered: 2014–2015
Sold in: Americas & Oceania / USA
Made in: China
Price: MSRP: US$749.99 (2014)[1]
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought w/ soft Venetian cutaway
Dimensions:
  Length: 508mm/ 20"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"
Top:
  Material: Solid Sitka spruce
  Bracing: X
  Finish: Gloss
  Binding: Maple
Back:
  Material: 3-piece rosewood/ flamed maple/ rosewood
  Strip inlay: Wooden mosaic
  Finish: Satin
Sides:


  Material: Rosewood

Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
AW
Neck material:
1-piece mahogany
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
651mm/ 25⅝"
Fingerboard:
Rosewood w/ Maple binding
Inlays:
Maple dot
Frets:
20 nickel silver
Nut:
Bone (43mm)
Machine heads:
Grover GH302 die cast w/ half-moon buttons
Electronics/ Components
Pickup:
Fishman Sonicore under saddle
Preamp:
Ibanez AEQ-SP2 w/ on-board tuner
Output jack(s):
XLR & ¼" stereo (balanced)
Battery:
9V
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dot)
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Black
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

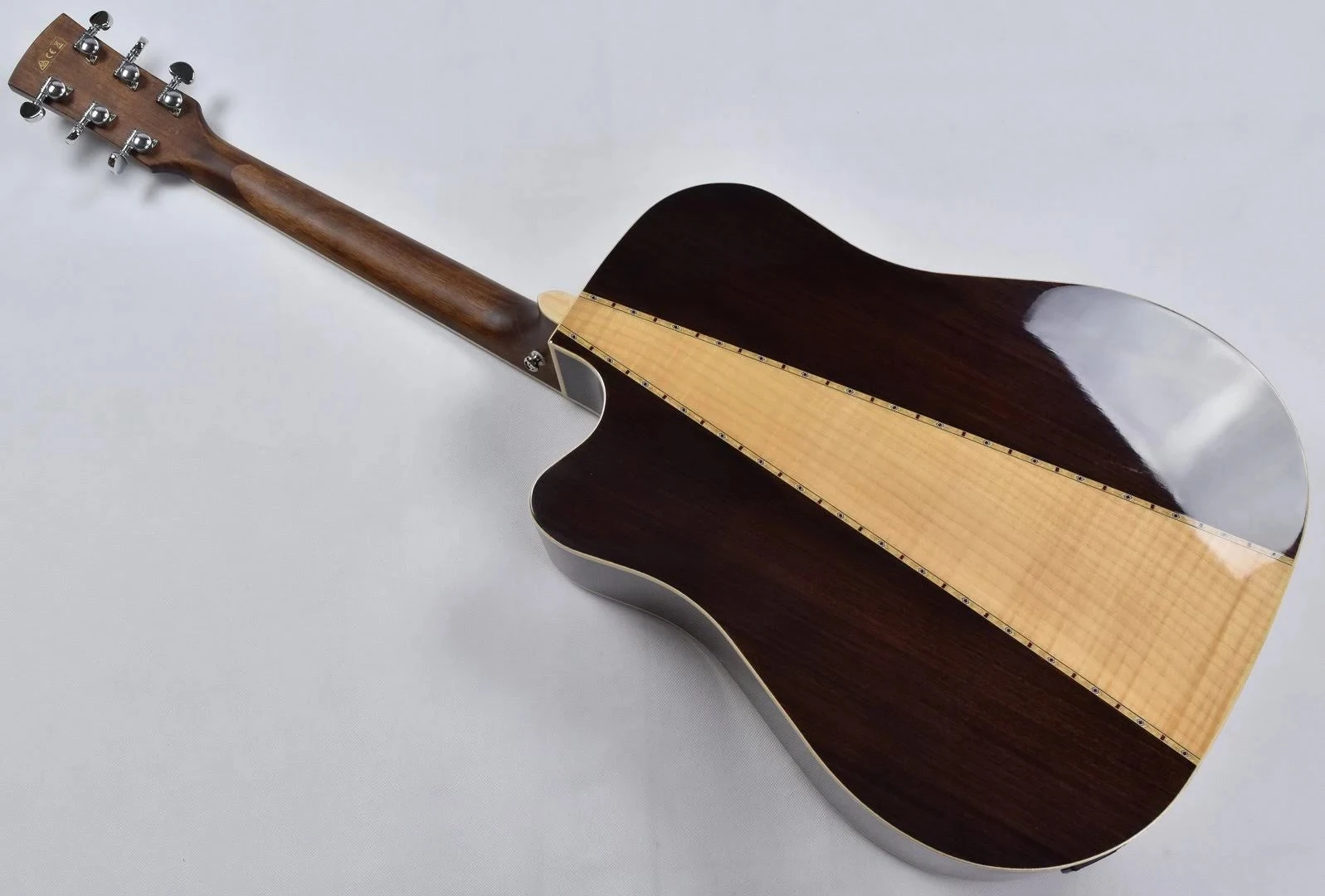

2014 AW535CE back
Rosewood and flamed maple back
AEQ-SP2 preamp
AEW-SP2 preamp

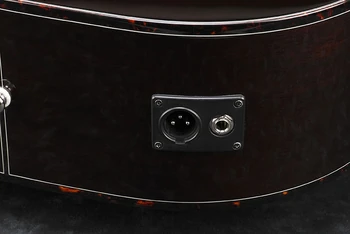

XLR quarter-inch output
XLR & ¼" balanced output
AEQ-SP2 preamp diagram
AEQ-SP2 preamp diagram
