For the other models with the same name, see AW500 (disambiguation).
2014 AW500 NT 1X 01

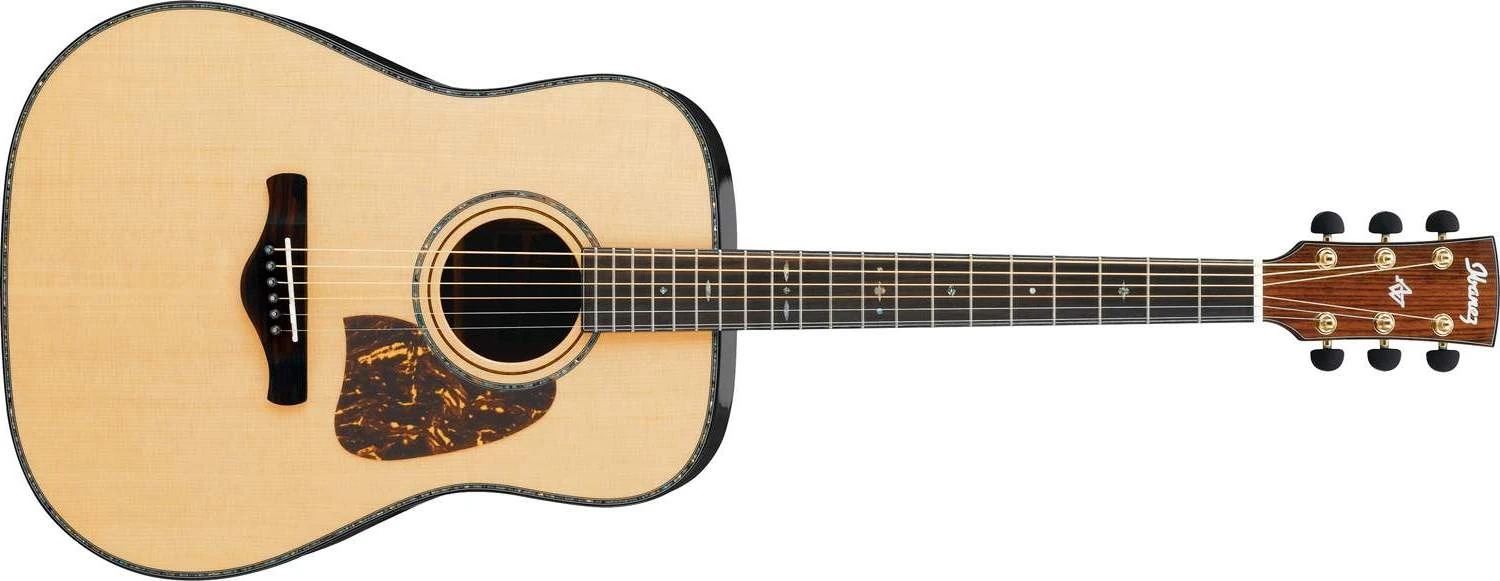

AW500 Natural High Gloss (more images) Red copyright sprite

The AW500 is an Artwood series acoustic guitar model introduced by Ibanez for 2014. It was made in China.

The AW500 features a dreadnought body shape with a solid Sitka spruce top with abalone purfling and rosewood binding on rosewood sides and back with a gloss finish. The soundhole is round with an abalone and wooden rosette and a yellow brown tortoise pickguard. It has a mahogany neck with a 20-fret rosewood fingerboard with special abalone position markers. Components include a compensated bone saddle in a rosewood bridge with black bridge pins with abalone dots, a bone nut, and gold die cast tuning machines with black buttons.

The AW500K is a similar model with koa back and sides. The AW535 is a related model with a three piece rosewood and flamed maple back. The AW400 is a related model with mahogany back and sides among some other differences.

The AW500 was discontinued after 2015.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AW500 (2014–2015)
Name: AW500 (2014–2015)
Year(s) offered: 2014–2015
Sold in: Americas & Oceania / Asia & Africa / Europe
Made in: China
Price: SMAP: €449.00 (2015)[1]
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 508mm/ 20"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"
Top:
  Material: Solid Sitka spruce
  Bracing: X
  Finish: Gloss
  Binding: Abalone purfling & rosewood binding
Back/sides:
  Material: Rosewood
  Finish: Satin
Soundhole shape:
Round
Soundhole rosette:
Abalone/ wooden
Neck
Neck profile:
AW
Neck material:
1-piece mahogany
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
651mm/ 25⅝"
Fingerboard:
Rosewood
Inlays:
Abalone special
Frets:
20 nickel silver
Nut:
Bone (43mm)
Machine heads:
Ibanez die cast w/ black buttons
Components
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Black plastic w/ abalone dots
Saddle:
Bone compensated
Hardware color:
Gold
Pickguard:
Yellow brown tortoise
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
