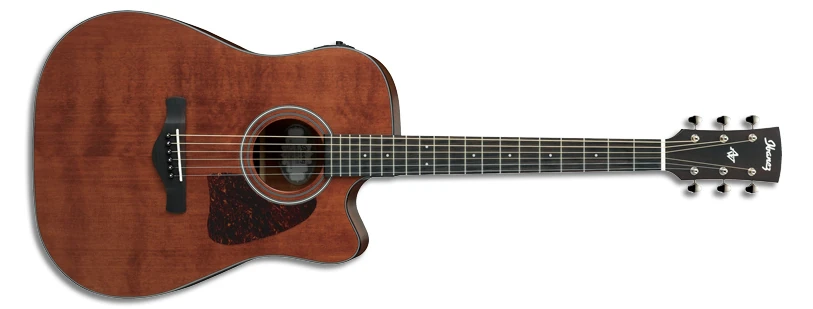

2015 AW450CE RTB 1X 02
AW450CE (more images) Red copyright sprite

The AW450CE is an Artwood series acoustic guitar model introduced by Ibanez for 2014. It was made in China and was sold only in the USA.

The AW450CE features a dreadnought body shape with a soft Venetian cutaway constructed of a solid cedar top with tortoise shell binding and gloss finish on mahogany sides and back with a satin finish. The soundhole is round with a black and white acrylic rosette and a red tortoise pickguard. It has a mahogany neck with a 20-fret rosewood fingerboard with small white dot position markers. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut, and chrome Grover open gear tuning machines with butterbean buttons.

Electronics consist of a Fishman Sonicore under saddle pickup connected to an Ibanez AEQ-SP2 pre-amp with an on-board tuner powered by a 9V battery and feeding balanced XLR and ¼" stereo outputs.

The AW450 is an acoustic only version without the cutaway. The AW400CE is a similar model with a solid Sitka spruce top.

The AW450CE was discontinued in 2016.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AW450CE
Name: AW450CE
Year(s) offered: 2014–2016
Sold in: USA
Made in: China
Price: MSRP: US$599.99 (2014)[1]
Finishes: Natural High Gloss (NT) 2014–2015 / Rustic Brown (RTB)
Body
Body type:
Acoustic
Body shape:
Dreadnought w/ soft Venetian cutaway
Dimensions:
  Length: 508mm/ 20"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"
Top:
  Material: Solid cedar
  Finish: Gloss
  Binding: Tortoise shell
Back/sides:
  Material: Mahogany
  Finish: Satin
Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
AW
Neck material:
1-piece mahogany
Neck finish:
Satin
Neck joint:
Dovetail at 14th fret
Scale length:
651mm/ 25⅝"
Fingerboard:
Rosewood
Inlays:
Small white dot
Frets:
20 nickel silver
Nut:
Bone (43mm)
Machine heads:
Grover open gear w/ butterbean buttons
Electronics/ Components
Pickup:
Fishman Sonicore under saddle
Preamp:
Ibanez AEQ-SP2 w/ on-board tuner
Output jack(s):
XLR & ¼" stereo (balanced)
Battery:
9V
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dots)
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
4-ply: Red tortoise/ white/ black/ white
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes

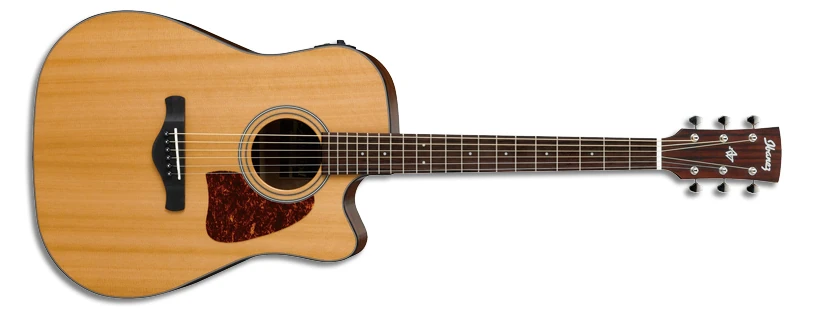

2014 AW450CE NT 1X 01
Natural High Gloss
Additional details
AEQ-SP2 preamp
AEW-SP2 preamp
XLR quarter-inch output
XLR & ¼" balanced output
AEQ-SP2 preamp diagram
AEQ-SP2 preamp diagram
