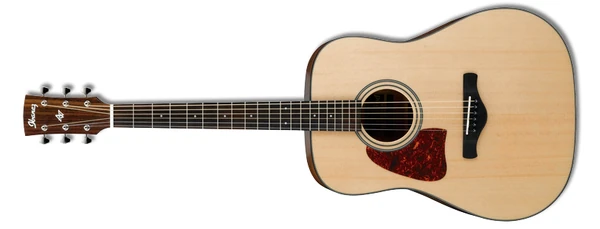

2014 AW400L NT 1X 01
AW400L Natural High Gloss Red copyright sprite

The AW400L is a left-handed Artwood series acoustic guitar model introduced by Ibanez for 2014. It was made in China and was sold only in the USA.

The AW400L features a dreadnought body shape with a solid Sitka spruce top with tortoise shell binding and gloss finish on mahogany back and sides with a satin finish. The soundhole is round with an abalone rosette. It has a mahogany neck with a 20-fret rosewood fingerboard with small white dot position markers. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut, a tortoise pickguard and chrome Grover open gear tuning machines with ivory buttons.

The AW400 is a right-handed version. The AW400LCE is an acoustic-electric version with a cutaway body.

The AW400L was discontinued in 2016.

Specifications[]

Specifications for AW400L
Name: AW400L
Year(s) offered: 2014–2016
Sold in: USA
Made in: China
Price: MSRP: US$449.99 (2014)
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 508mm/ 20"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"
Top:
  Material: Solid Sitka spruce
  Finish: Gloss
  Binding: Tortoise shell
Back/sides:
  Material: Mahogany
  Finish: Satin
Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
AW
Neck material:
1-piece mahogany
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
651mm/ 25⅝"
Fingerboard:
Rosewood
Inlays:
Small white dot
Frets:
20
Nut:
Bone
Machine heads:
Grover open gear w/ ivory (plastic) buttons
Components
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dots)
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Tortoise shell
Strings (factory):
.010/.014/.022/.032 (D'Addario J-66 80/20 bronze)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
