2011 AW370 NT 14 01

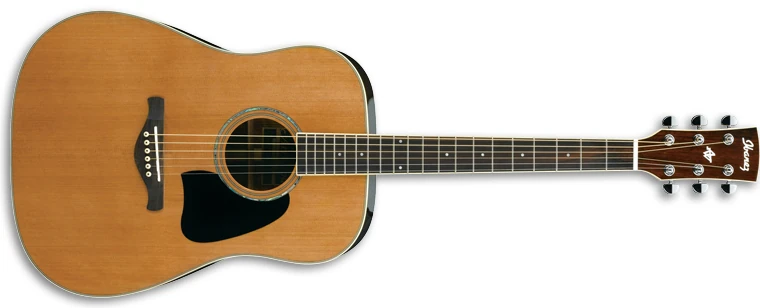

AW370 Natural High Gloss Red copyright sprite

The AW370 is an Artwood series acoustic guitar model introduced by Ibanez for 2011. It was made in China.

The AW370 features a dreadnought body shape with a solid cedar top on laminated rosewood sides and back with a gloss finish. The soundhole is round with an abalone rosette and a black pickguard. It has a mahogany neck with a satin finish and a 20-fret rosewood fingerboard with white dot position markers. Components include a compensated bone saddle in a rosewood bridge with white Ibanez Advantage bridge pins with black dots, a bone nut, and chrome Grover tuning machines.

For 2013 the body depth was increased slightly and the Grover tuners were supplanted by Ibanez die-cast units.

The AW370ECE is an acoustic-electric version with a cutaway body. The AW300 is a similar model with a solid Engelmann spruce top and mahogany back. The AW500 model with a solid Sitka spruce top and a yellow brown tortoise pickguard.

The AW370 was discontinued after 2015.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AW370
Name: AW370
Year(s) offered: 2011–2015
Sold in: Americas & Oceania 2013 / Europe
Made in: China
Price: SMAP: €319.00 (2011)[1]
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Dreadnought
Dimensions:
  Body length: 508mm/ 20"
  Width: 400mm/ 15¾"
  Depth: 2011–2012: 121mm/ 4¾"
                2013–2015: 127mm/ 5"
Top:
  Material: Solid cedar
  Bracing: X
  Finish: Gloss
  Binding: White
Back/sides:
  Material: Rosewood (laminated)
  Finish: Satin
Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
AW
Neck material:
1-piece mahogany
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
651mm/ 25⅝"
Fingerboard:
Rosewood
Inlays:
White dot
Frets:
20 nickel silver
Nut:
Bone (43mm)
Machine heads:
2011–2012: Grover GH302 die-cast
2013–2015: Ibanez die-cast
Components
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage bridge pins (white w/ black dot)
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Black
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

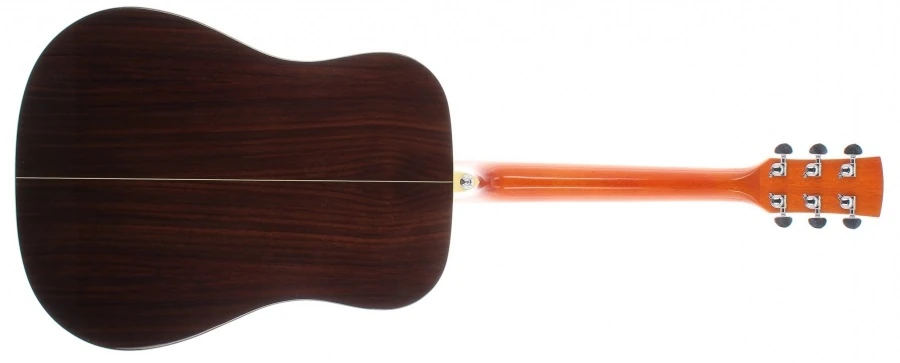

AW370 rear
Rear of body
