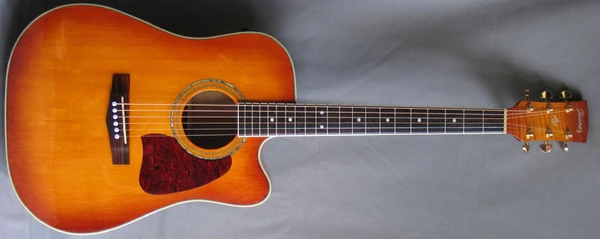

2004 AW200CE-VV

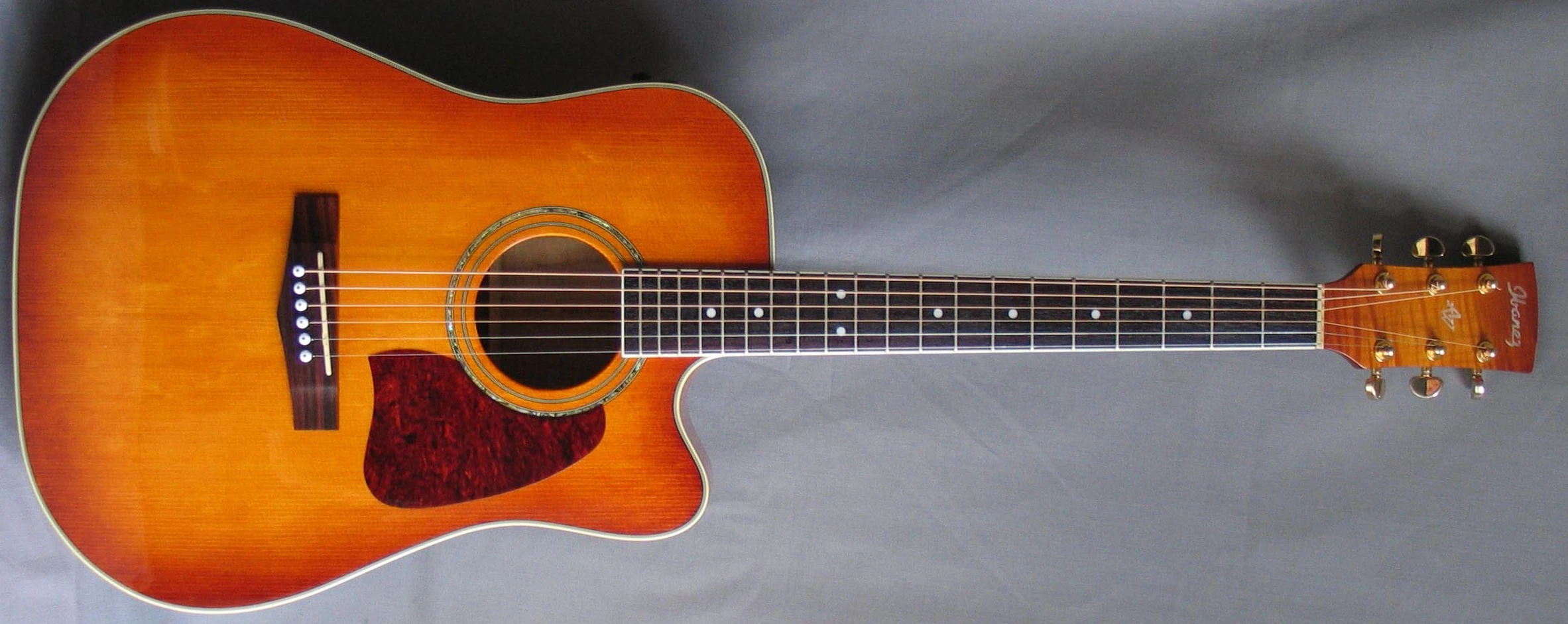

AW200CE Vintage Violin (more images) Red copyright sprite

The AW200CE is an Artwood series acoustic/electric guitar model introduced by Ibanez for 2000. It was made in South Korea by the Cor-Tek factory. It was replaced in 2005 for the very similar AW200ECE.

The AW200CE features a dreadnought body shape with a Venetian cutaway with a solid engelmann spruce top with X bracing and figured maple back and sides with high gloss finish. The soundhole is round with an abalone rosette. It has a mahogany neck with a 20-fret rosewood fingerboard with small white dot position markers. Components include an ivory plastic saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a plastic nut, a red tortoise pickguard and Gold grover tuning machines. Electronics consist of a Fishman Acoustic Matrix pickup connected to a Fishman Prefix Plus preamp with onboard tuner powered by a 9V battery and a ¼" output.

The AW200 is a similar non-electric model without the cutaway.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AW200CE
Name: AW200CE
Year(s) offered: 2000–2004
Sold in: Europe 2002-2004 / USA
Made in: South Korea
Finishes: Natural (NT) 2000-2002 / Vintage Violin 2002-2004
Body
Body type:
Acoustic
Body shape:
Dreadnought w/ Venetian cutaway
Dimensions:
  Length: 508mm/ 20"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"
Top:
  Material: Solid engelmann spruce top
  Bracing: X
  Finish: Open pore
  Binding: Black & white
Back/sides:
  Material: Figured maple
Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
AW
Neck material:
1-piece mahogany
Neck finish:
Open pore
Neck joint:
Dovetail
Scale length:
651mm/ 25⅝"
Fingerboard:
Rosewood
Inlays:
Small white dot
Frets:
20 nickel silver
Nut:
Ivory plastic (43mm)
Machine heads:
Gold grover
Electronics/ Components
Pickup:
Fishman Acoustic Matrix
Preamp:
Fishman Prefix Plus
Output jack(s):
¼" (integrated w/ battery box)
Battery:
9V
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage bridge pins (white w/ black dot)
Saddle:
72mm x 2.9mm ivory plastic
Hardware color:
Gold
Pickguard:
Red tortoise
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Available finishes

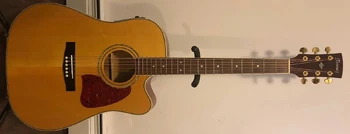

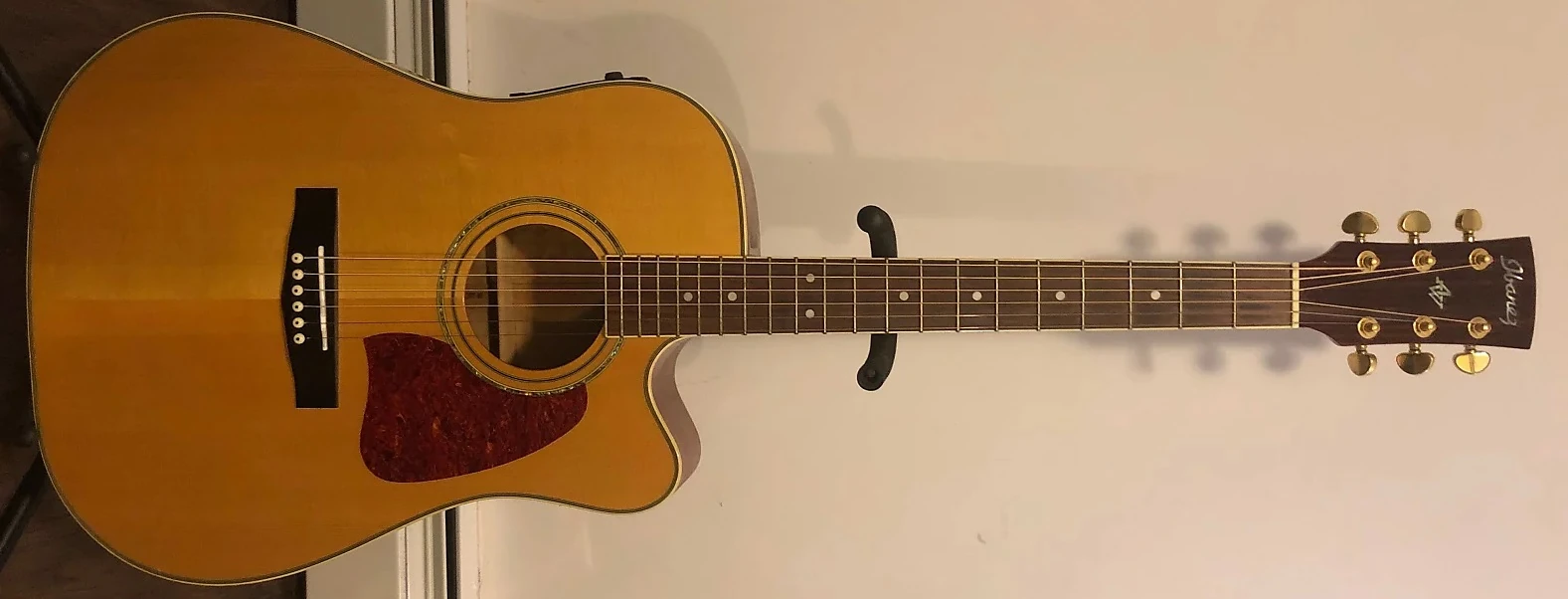

AW200CE-NT
Natural
Additional details

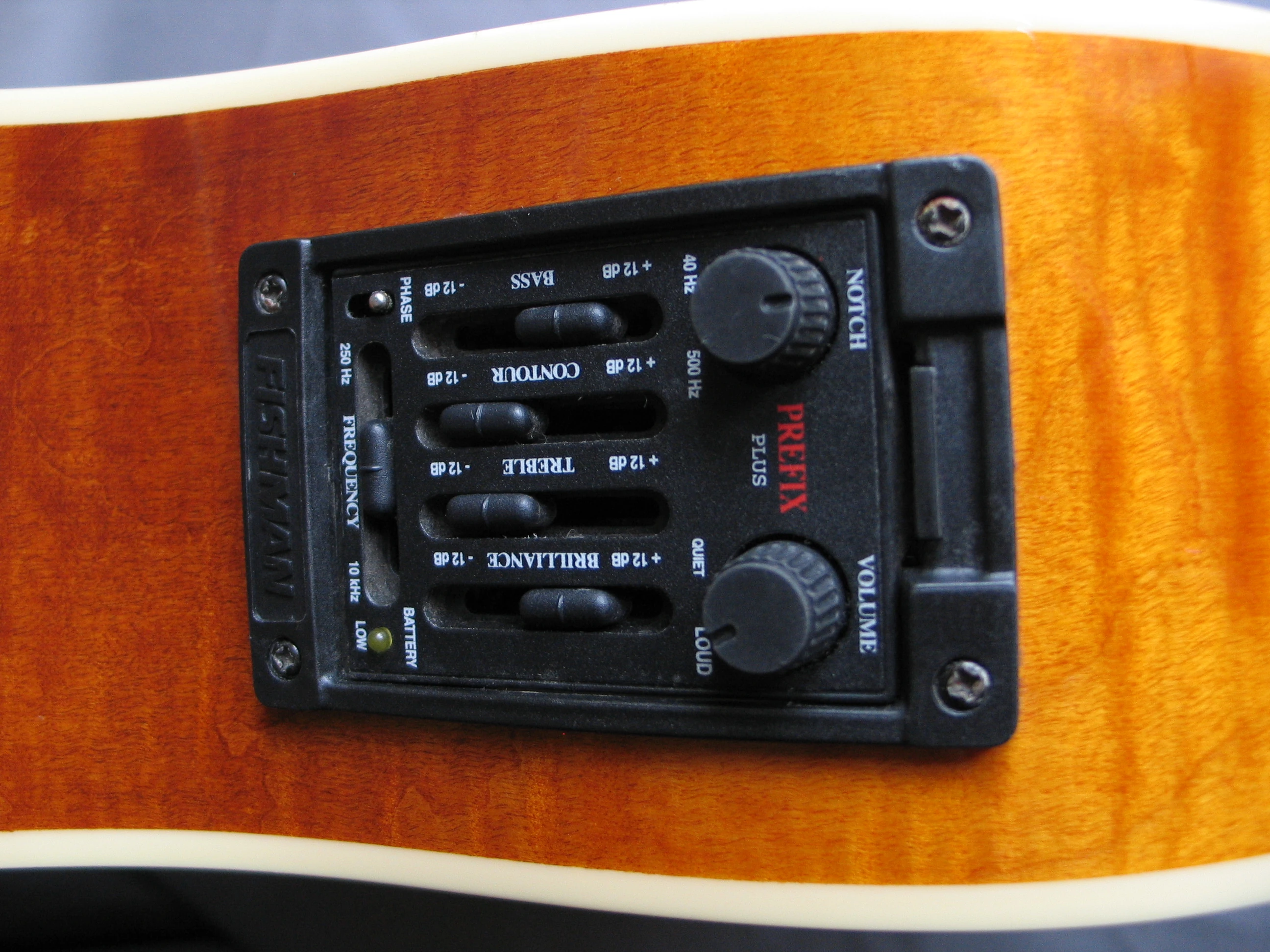

Fishman Prefix Plus
Fishman Prefix Plus (preamp)

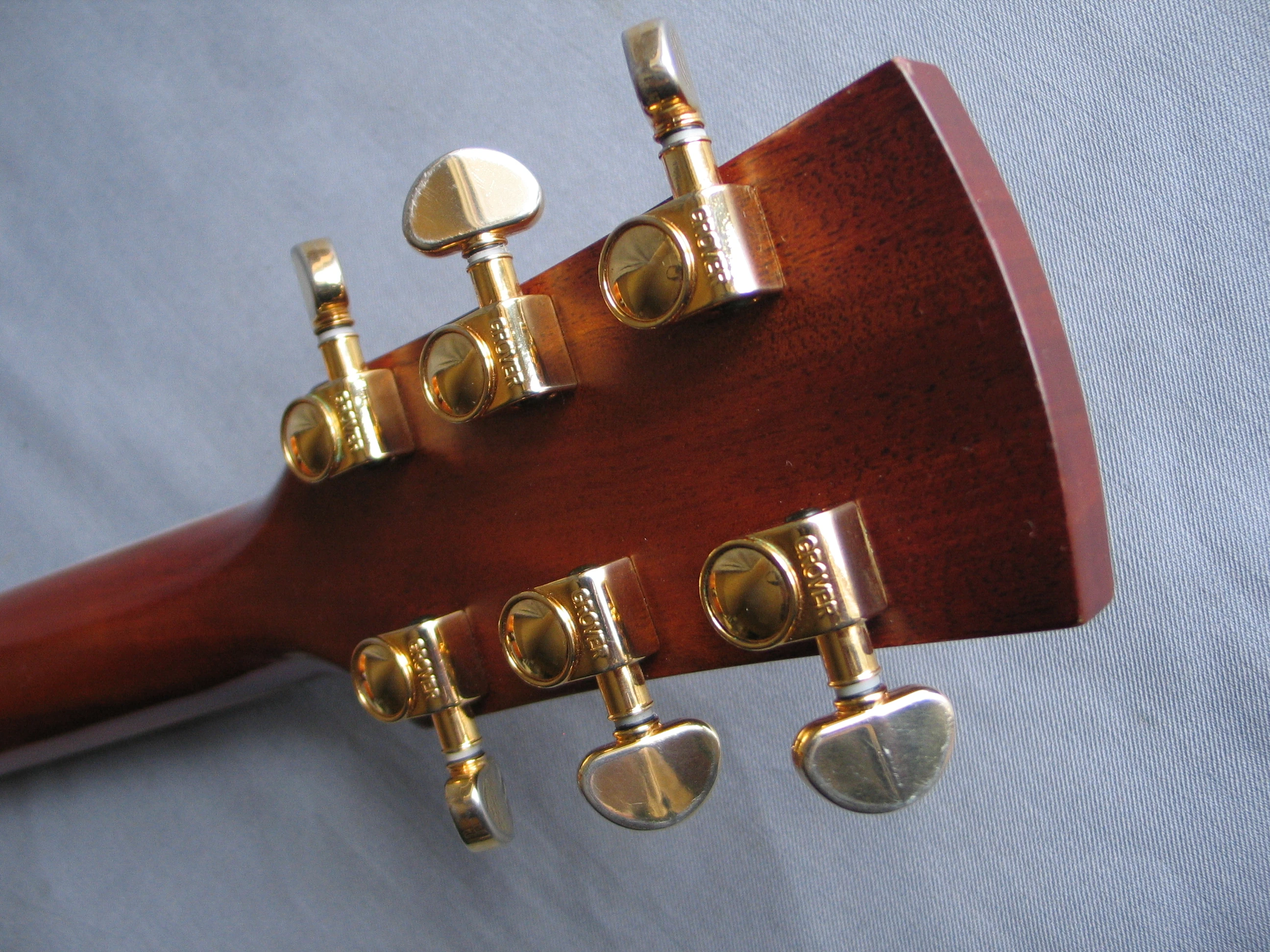

AW200CE-VV tuners
Gold grover (machine heads)

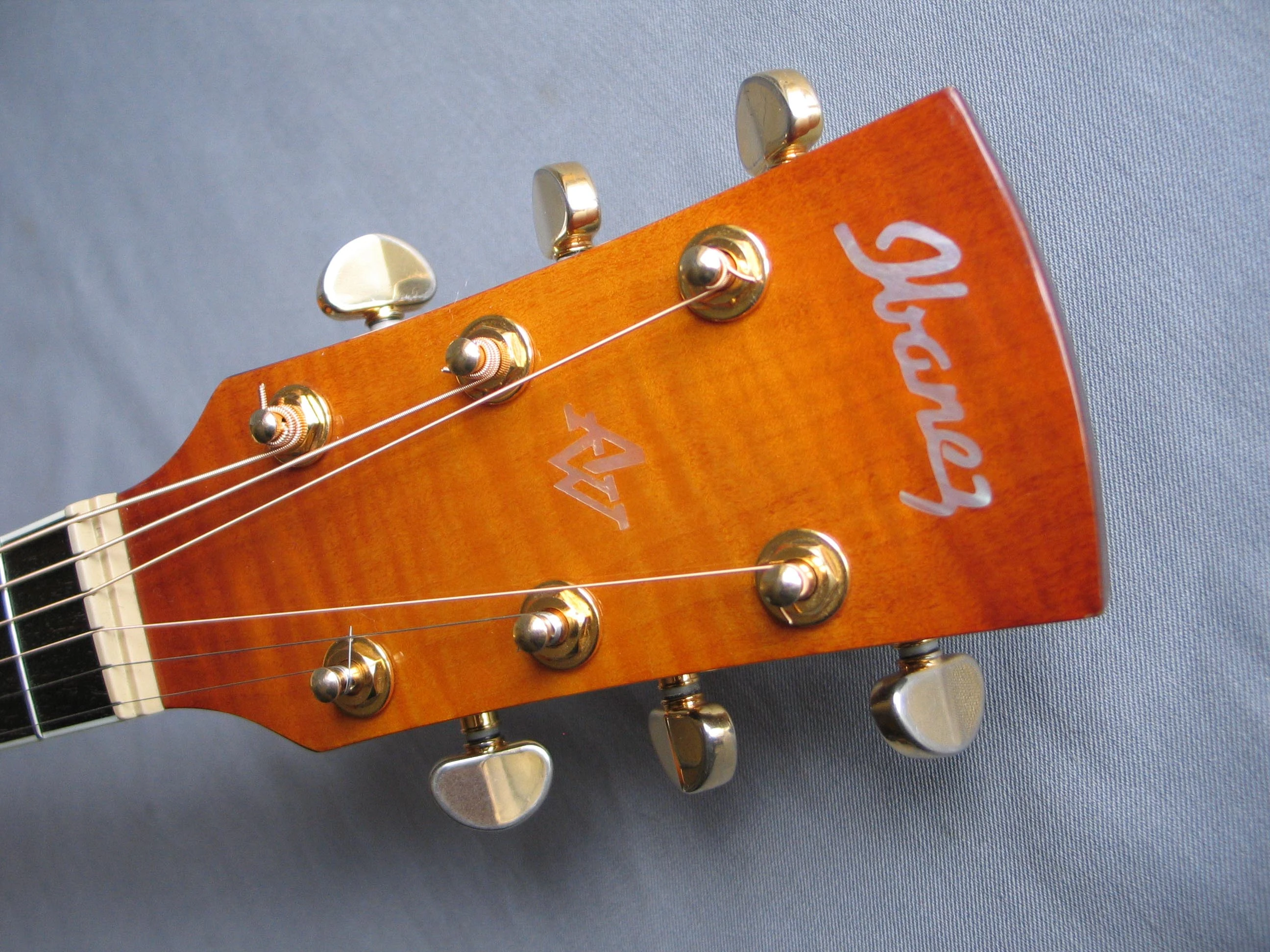

AW200CE-VV headstock
Headstock

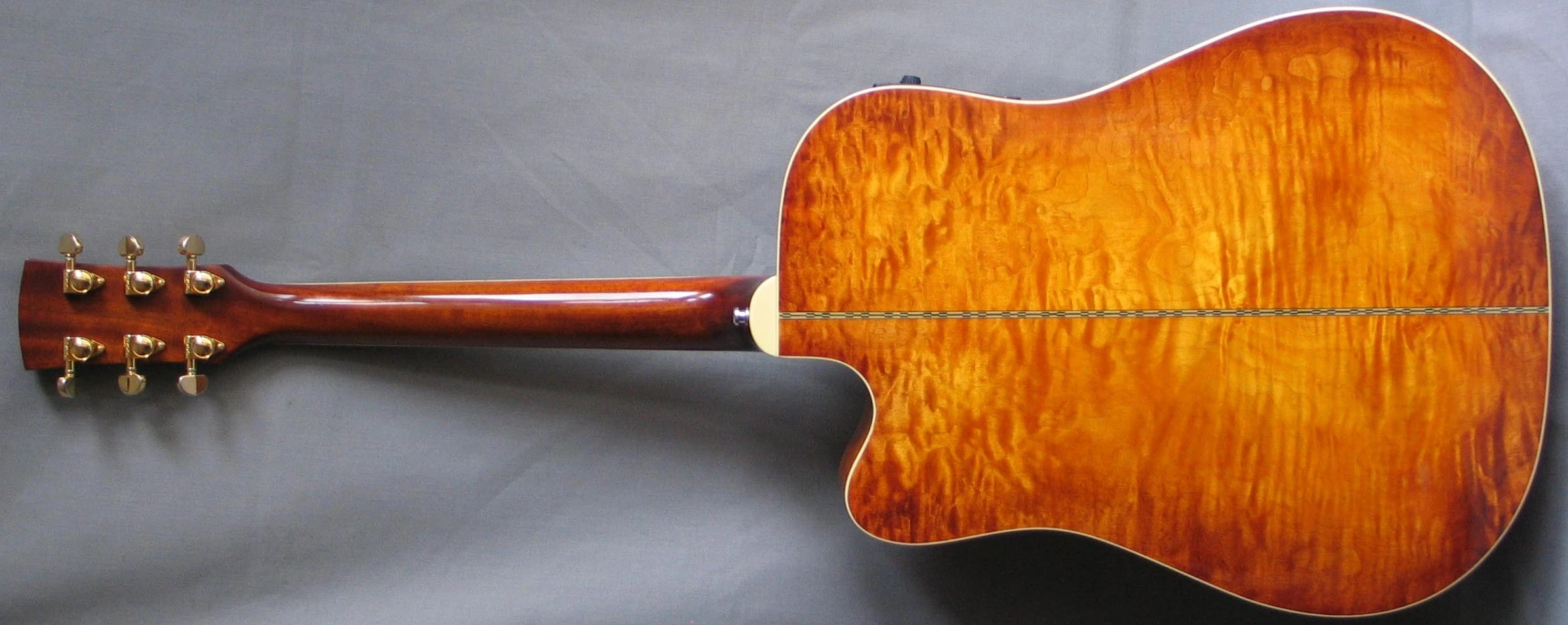

AW200CE-VV rear
Rear (VV finish)
