2022 AW1040CE WK 1X 01
AW1040CE Weathered Black Open Pore (more images) Red copyright sprite

The AW1040CE is an Artwood series acoustic/ electric guitar model introduced by Ibanez in mid-2022. It was produced in China.

The AW1040CE features a cutaway dreadnought body shape with a solid okoume top on okoume back and sides with an open pore finish. The soundhole is round with an abalone rosette and a red tortoise pickguard. It has a satin finished nyatoh neck with a 20-fret ovangkol fingerboard with black binding and small white dot position markers. Components include a compensated bone saddle in an ovangkol bridge with black Ibanez Advantage bridge pins, a bone nut, and chrome Ibanez die-cast tuning machines. Electronics consist of an Ibanez Custom Electronics preamp with volume and tone controls, a T-bar undersaddle pickup and ¼" endpin output.

The AW247CE is a similar model with a different preamp.

The AW10140CE was discontinued after 2024.

Specifications[]

Related content: Artwood series | Models-icon
Specifications for AW1040CE
Name: AW1040CE
Year(s) offered: 2022–2024
Sold in: Americas & Oceania / Asia & Africa / Europe
Made in: China
Finishes: Open Pore Natural (OPN) / Weathered Black Open Pore (WK)
Body
Body type:
Acoustic
Body shape:
Dreadnought w/ Venetian cutaway
Dimensions:
  Body length: 508mm/ 20"
  Width: 401mm/ 15¾"
  Depth: 127mm/ 5"
Top:
  Material: Solid okoume
  Finish: Open pore
  Binding: White & black multi
Back/sides:
  Material: Okoume
  Finish: Open pore
Soundhole shape:
Round
Soundhole rosette:
Abalone
Neck
Neck profile:
AW
Neck material:
1-piece nyatoh
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
651mm/ 25⅝"
Fingerboard:
Ovangkol w/ black binding
Inlays:
Small white dot
Frets:
20 nickel silver
Nut:
Bone
Machine heads:
Ibanez die-cast (18:1 gear ratio)
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario XTAPB1253)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ components
Pickup:
Ibanez T-bar undersaddle
Preamp:
Ibanez Custom Electronics w/ volume and tone control
Output jack(s):
¼" endpin
Battery:
9V
Bridge:
Ovangkol
Bridge pins:
Ibanez Advantage bridge pins (black w/ white dot)
Saddle:
Bone compensated (11mm string spacing)
Hardware color:
Chrome
Pickguard:
Red tortoise

Images[]

Other finishe

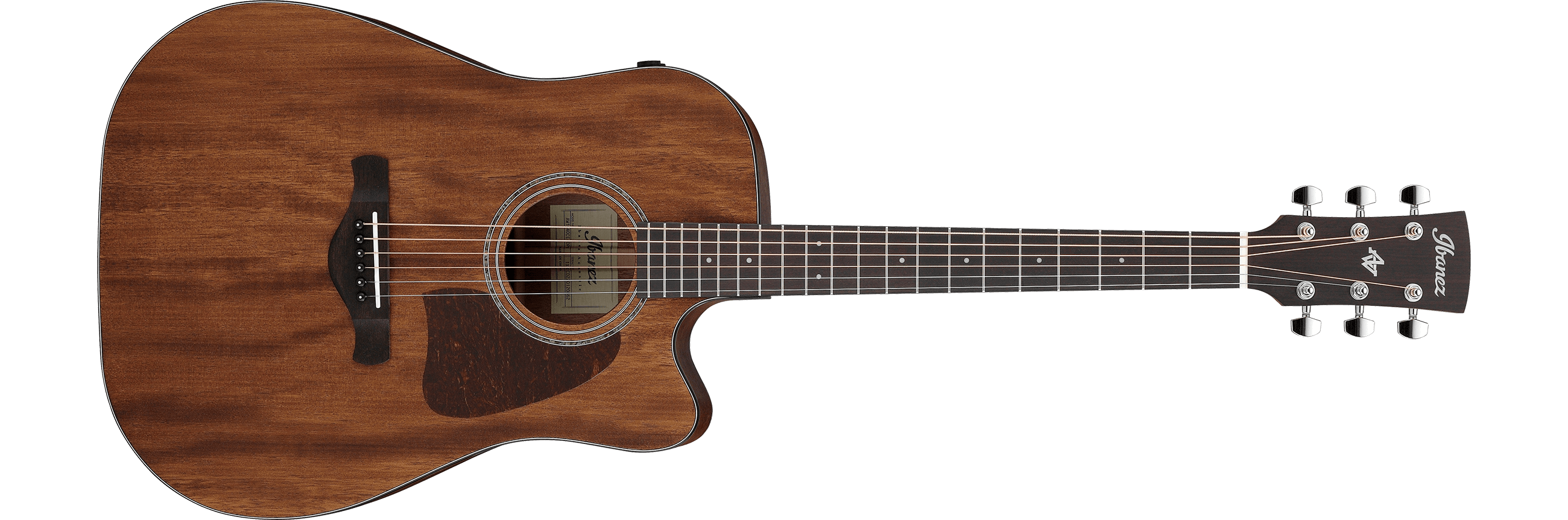

2022 AW1040CE OPN 1X 01
Open Pore Natural
Additional details
2022 AW1040CE WK 1X 01 back
Back

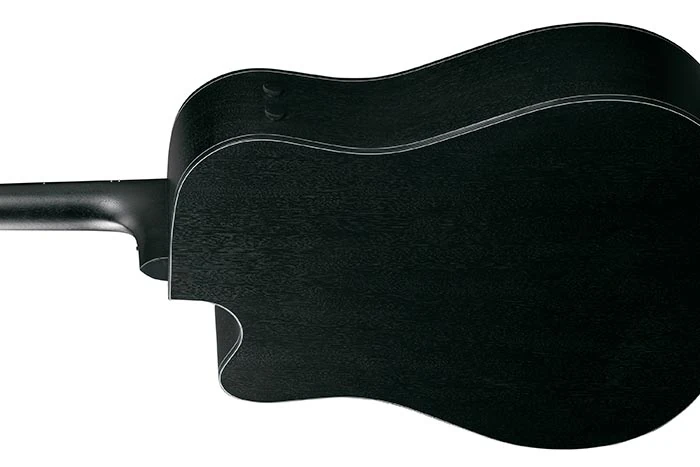

2022 AW1040CE WK 1X 01 body-back-top
Back & top side

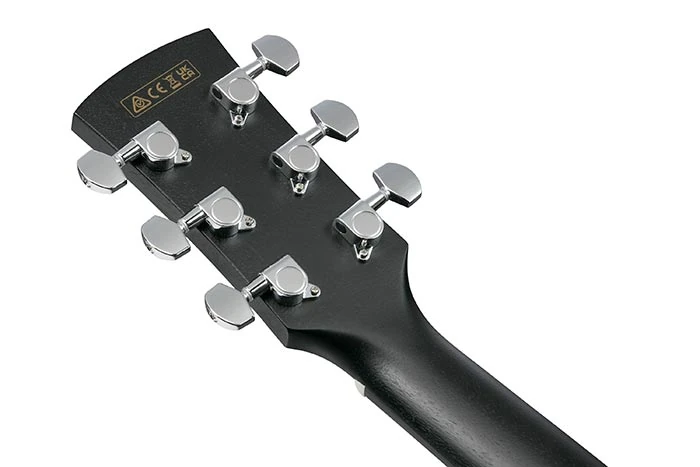

2022 AW1040CE WK 1X 01 headstock-rear
Headstock back & tuners
Controls VT AdvancedAcoustic
Volume & tone control
