2015 AVT2E NT 41 01

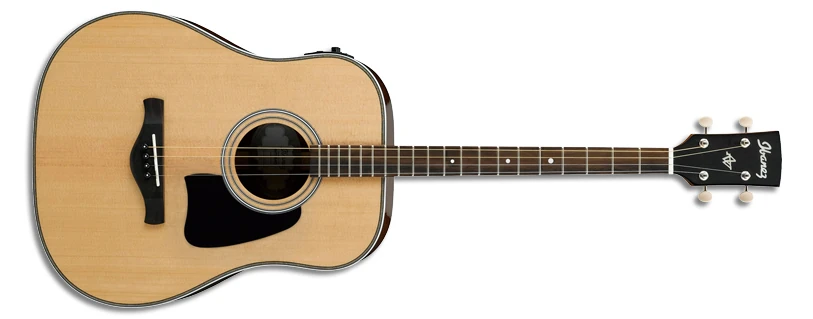

AVT2E Natural High Gloss Red copyright sprite

The AVT2E is an Artwood Vintage series acoustic-electric tenor guitar model introduced by Ibanez for 2015. It was made in China.

The AVT2E features a mini dreadnought body shape with a solid Sitka spruce top on mahogany back and sides with a gloss finish. The soundhole is round with a black and white multi rosette and the top is bordered with herringbone purfling and white binding. It has a satin finished mahogany neck with a 20-fret rosewood fingerboard with white dot position markers. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut and chrome Ibanez open gear tuning machines with ivory buttons.

Electronics consist of a Fishman Sonicore under saddle pickup with an Ibanez AEQ-SP2 preamp with onboard tuner powered by a 9V battery and balanced XLR and ¼" stereo outputs.

The AVT2 is a related acoustic-only tenor model with a mini parlor body.

The AVT2E was discontinued after 2016.

Specifications[]

Specifications for AVT2E
Name: AVT2E
Year(s) offered: 2015–2016
Sold in: Japan 2015 / USA
Made in: China
Price: MSRP: US$599.99 (2015)[1] | ¥65,000 (2015)[2]
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Mini dreadnought
Dimensions:
  Body length: 413mm/ 16¼"
  Width: 343mm/ 13½""
  Depth: 102mm/ 4"
Top:
  Material: Solid Sitka spruce
  Bracing: X Bracing
  Finish: Gloss
  Binding: Tortoiseshell binding
Back/sides:
  Material: Mahogany
  Finish: Gloss
Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
AVT2E
Neck material:
1-piece mahogany
Neck finish:
Satin
Scale length:
580mm/ 22.8"
Fingerboard:
Rosewood
Inlays:
White dot
Frets:
20
Nut:
Bone
Machine heads:
Ibanez open gear w/ ivory buttons
Strings (factory):
.010/.014/.022/.032 (D'Addario J-66 80/20 bronze)
Factory tuning:
1A,2D,3G,4C
Electronics/ components
Pickup:
Fishman Sonicore
Preamp:
Ibanez AEQ-SP2 w/ onboard tuner
Output jack(s):
XLR & ¼" stereo (balanced)
Battery:
9V
Bridge:
Rosewood
Bridge pins:
Ibanez Advantage (black with white dot)
Saddle:
Bone compensated (11mm string spacing)
Hardware color:
Chrome

Images[]

Additional details
AEQ-SP2 preamp
AEQ-SP2 preamp
XLR quarter-inch output
XLR & ¼" balanced output
AEQ-SP2 preamp diagram
AEQ-SP2 preamp diagram
