2019 AVNB1E BV 1X 02
AVNB1E Brown Violin Semi-Gloss Red copyright sprite

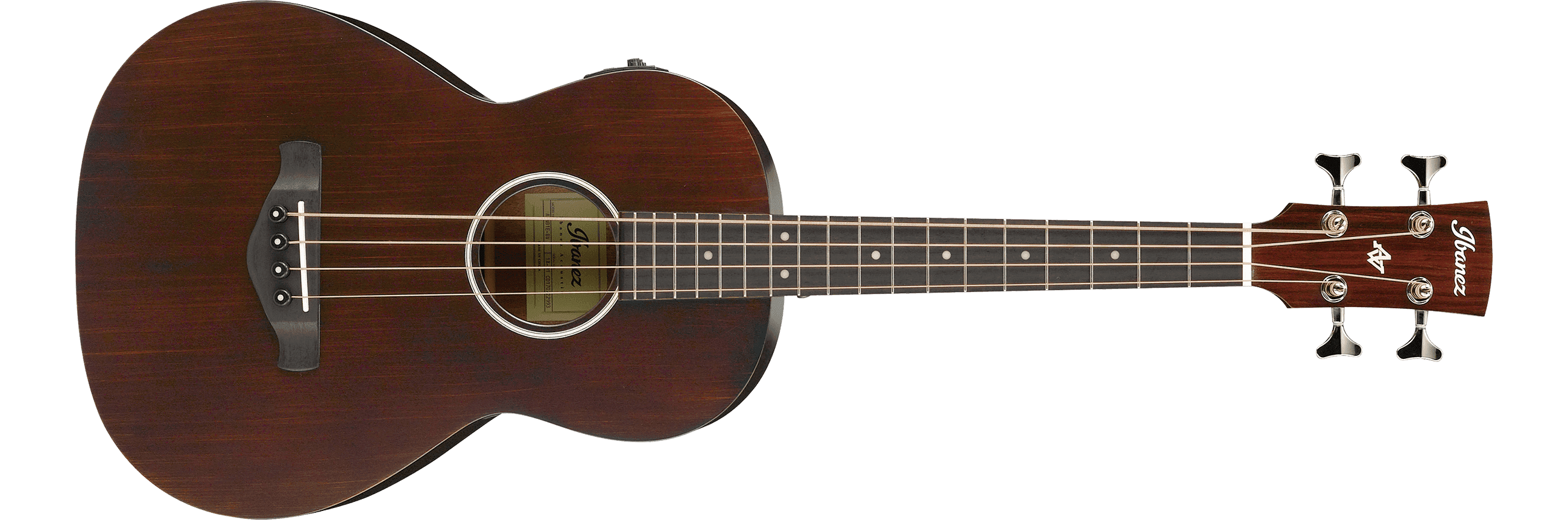

The AVNB1E is an Artwood Vintage series acoustic/electric bass guitar model introduced by Ibanez for 2019. It was made in China.

The AVNB1E features a parlor body shape with a solid Sitka spruce top with okoume back and sides with a semi-gloss finish. The soundhole is round with a wooden rosette and the top is bordered with black binding. It has nyatoh neck with an 18-fret ovangkol fingerboard with white dot position markers. Components include a compensated bone saddle in an ovangkol bridge with black Ibanez Advantage bridge pins, a bone nut and cosmo black Ibanez tuning machines. Electronics include an AEQ-SP2 preamp with onboard tuner, a Fishman Sonicore undersaddle pickup, a 9V battery, and balanced XLR and ¼" stereo outputs.

For 2019 the back and sides were changed from mahogany to okoume and the mahogany neck was replaced with nyatoh.

The AVNB1FE is a fretless version with an ovangkol fretboard and bridge. The AVNB2E is a similar model with a different finish, chrome tuners and other minor differences.

The AVNB1E was discontinued after 2019.

Specifications[]

Related content: Artwood Vintage series | Acoustic bass series | Models-icon
Specifications for AVNB1E
Name: AVNB1E
Year(s) offered: 2018–2019
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: China
Price: MSRP: US$749.99 (2018)[1]
Finishes: Brown Violin Semi-Gloss (BV)
Body
Body type:
Acoustic
Body shape:
Parlor
Dimensions:
  Body length: 489mm/ 19¼"
  Width: 356mm/ 14"
  Depth: 105mm/ 4⅛"
Top:
  Material: Sitka spruce
  Bracing: X
  Finish: Semi-gloss
  Binding: Black
Back/sides:
  Material: 2018: Mahogany
                2019: Okoume
  Finish: Semi-gloss
Soundhole shape:
Round
Soundhole rosette:
Wooden
Neck
Neck profile:
AEWB C-shape
Neck material:
2018: 1-piece mahogany
2019: 1-piece nyatoh
Neck finish:
Satin
Neck joint:
Dovetail
Scale length:
634mm/ 25"
Fingerboard:
Ovangkol
Inlays:
White dot
Frets:
18 nickel silver
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
Ibanez AEQ-SP2 w/ onboard tuner
Output jack(s):
Balanced XLR & ¼" stereo
Battery:
9V
Bridge:
Ovangkol (19mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dot)
Saddle:
Bone compensated
Hardware color:
Cosmo black
Strings (factory):
.037/.055/.062/.090 (D'Addario EXPPBB190GS)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

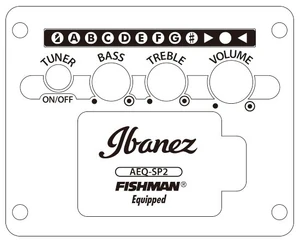

AEQ-SP2 preamp diagram
Fishman AEQ-SP preamp Red copyright sprite
