2019 AVN9SPE NT 1X 02
AVN9SPE Natural High Gloss Red copyright sprite

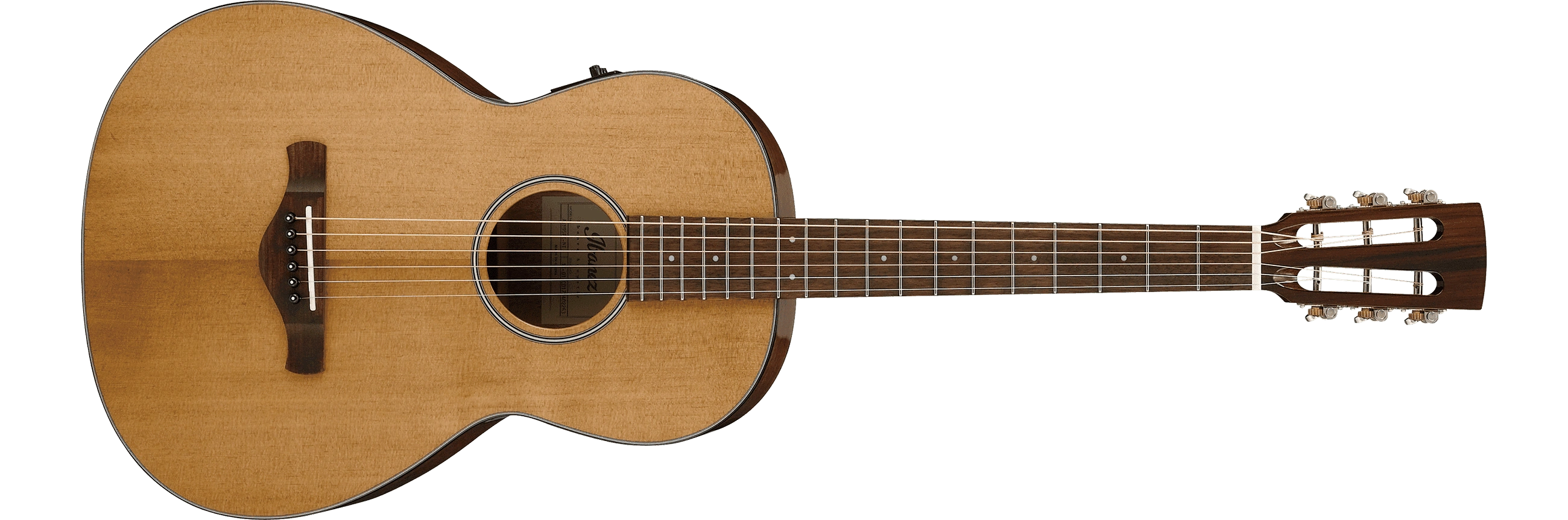

The AVN9SPE is an Artwood Vintage series acoustic/electric guitar model introduced by Ibanez in mid 2017. It was made in China.

The AVN9SPE features a parlor body shape with a solid Thermo Aged Sitka spruce top with Thermo Aged spruce X bracing and mahogany back and sides with a high gloss finish. The soundhole is round with a black and white multi rosette and the top is bordered with tortoiseshell binding. It has a satin finished soft-V shaped mahogany neck with an 18-fret ovangkol fingerboard with white dot position markers. Components include a bone saddle in an ovangkol bridge with black Ibanez Advantage bridge pins, a bone nut and a slotted headstock with antique chrome Ibanez open gear tuning machines. Electronics include an AEQ-AP2 preamp with onboard tuner, a Fishman Sonicore undersaddle pickup, a 9V battery, and balanced XLR and ¼" outputs.

For 2018 the AEQ-AP2 preamp was replaced with an AEQ-SP2. For 2019 the mahogany back and sides were replaced with okoume and the mahogany neck was replaced with nyatoh.

The AVN9 is a similar traditional acoustic model.

The AVN9SPE was discontinued after 2019.

Specifications

Specifications for AVN9SPE
Years: 2017–2019
Areas: USA
Made in: China
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Parlor
Dimensions:
  Length: 489mm/ 19¼"
  Width: 356mm/ 14"
  Depth: 105mm/ 4⅛"
Top:

  Material: Solid Thermo Aged Sitka spruce
  Bracing: Thermo Aged Spruce X & Thermo Aged maple bridge plate
  Finish: High gloss
  Binding: Tortoiseshell

Back/sides:

  Material: 2017–2018: Mahogany
                2019: Okoume

Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
AVN soft-V shape
Neck material:
2017–2018: 1-piece mahogany
2019: 1-piece nyatoh
Neck finish:
Satin
Scale length:
634mm/ 25"
Fingerboard:
Ovangkol
Inlays:
White dot
Frets:
18
Nut:
Bone
Machine heads:
Ibanez open gear w/ butterbean buttons
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
2017: Ibanez AEQ-AP2 w/ onboard tuner
2018–2019: Ibanez AEQ-SP2 w/ onboard tuner
Output jack(s):
Balanced XLR & ¼"
Battery:
9V
Bridge:
Ovangkol (11mm string spacing)
Bridge pins:
Ibanez Advantage (black)
Saddle:
Bone compensated
Hardware color:
Chrome
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP16)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

AEQ-SP2 preamp diagram
Fishman AEQ-SP preamp Red copyright sprite

Video

Ibanez Thermo Aged™ Acoustic Electric Guitars (AVD9CE, AVC9CE, AVN9SPE)

Ibanez Thermo Aged™ Acoustic Electric Guitars (AVD9CE, AVC9CE, AVN9SPE)
