2019 AVN9 OPN 1X 03
AVN9 Open Pore Natural Red copyright sprite

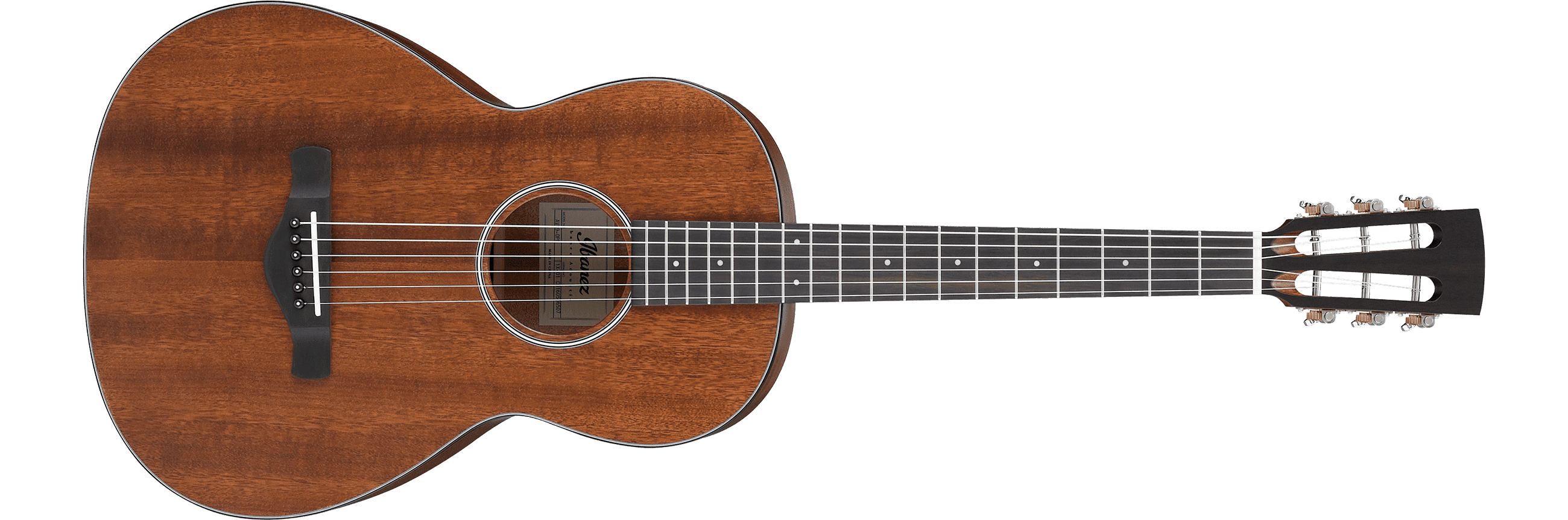

The AVN9 is an Artwood Vintage series acoustic guitar model introduced by Ibanez in mid 2016. It is made in China.

The AVN9 features a parlor body shape with a solid Thermo Aged mahogany top with Thermo Aged spruce X bracing and mahogany back and sides with an open pore finish. The soundhole is round with a black and white multi rosette and the top is bordered with a tortoiseshell binding. It has a satin finished soft-V shaped mahogany neck with an 18-fret rosewood fingerboard with white dot position markers. Components include a bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut and a slotted headstock with antique chrome Ibanez open gear tuning machines.

For 2018 the rosewood bridge and fretboard were replaced with ovangkol. For 2019 the top was replaced with Thermo Aged solid okoume, the mahogany back and sides were replaced with okoume and the mahogany neck was replaced with nyatoh. For 2021 the Thermo aged maple bridge plate was eliminated.

The AVN9SPE is a similar acoustic/ electric model. The AVN11 is a related model with a Thermo Aged Caucasian spruce top.

The AVN9 was discontinued after 2021 along with the entire Artwood Vintage line.

Specifications[]

Specifications for AVN9
Name: AVN9
Year(s) offered: 2016–2021
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: China
Price: MSRP: US$599.99 (2016)[1]
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Parlor
Dimensions:
  Length: 489mm/ 19¼"
  Width: 356mm/ 14"
  Depth: 105mm/ 4⅛"
Top:
  Material: 2016–2018: Solid Thermo Aged mahogany
                2019–2021: Solid Thermo Aged okoume
  Bracing: 2016–2020: Thermo Aged Spruce X & Thermo Aged maple bridge plate
2021: Thermo Aged Spruce X
  Finish: Open pore
  Binding: Tortoiseshell binding
Back/sides:
  Material: 2016–2018: Mahogany
                2019–2021: Okoume
Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
AVN soft-V shape
Neck material:
2016–2018: 1-piece mahogany
2019-2021: 1-piece nyatoh
Neck finish:
Satin
Scale length:
634mm/ 25"
Fingerboard:
2016–2017: Rosewood
2018–2021: Ovangkol
Inlays:
White dot
Frets:
18 nickel silver
Nut:
Bone
Machine heads:
Ibanez open gear w/ butterbean buttons
Components
Bridge:
2016–2017: Rosewood
2018–2021: Ovangkol (11mm string spacing)
Bridge pins:
Ibanez Advantage (black)
Saddle:
Bone compensated
Hardware color:
Chrome
Strings (factory):
2016–2019: .012/.016/.024/.032/.042/.053 (D'Addario EXP16)
2020–2021: .012/.016/.024/.032/.042/.053 (D'Addario XTAPB1253)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

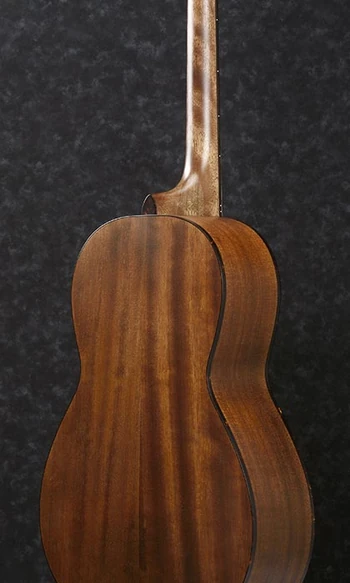

2017 AVN9 OPN 1X 01 CU Body Back
Body and neck back and side
2017 AVN9 OPN 1X 01 CU Head Back
Chrome open gear tuners with butterbean buttons
ArtcoreVintageThermo X-bracing
Thermo Aged solid top and spruce X bracing

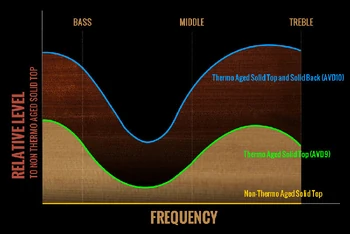

Thermo-Aged comparison
Tone comparison versus non-Thermo Aged top & back

Video[]

Sources[]

  • AVN9 product page, Ibanez USA, archived June 2017
  • 2018 Europe catalog (p. 101)
  • AVN9 product page, Ibanez USA, archived November 2019
  • AVN9 product page, Ibanez Europe, archived January 2020
  • AVN9 product page, Ibanez Asia & Africa, archived January 2021
