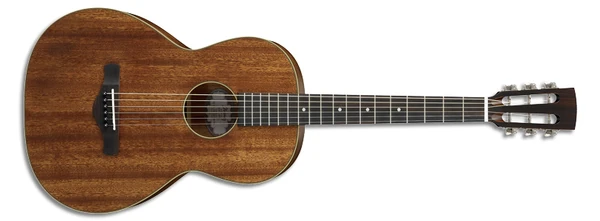

2016 AVN5 OPN 1X 01
AVN5 Open Pore Natural Red copyright sprite

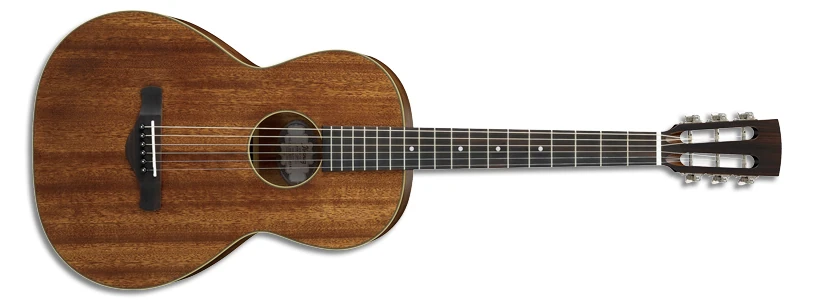

The AVN5 is an Artwood Vintage series acoustic guitar model introduced by Ibanez for 2016. It was made in China.

The AVN5 features a parlor body shape with a solid mahogany top with cream binding on mahogany back and sides with an open pore finish. The soundhole is round with a simple black and cream rosette. It has a soft-V shaped mahogany neck with an 18-fret rosewood fingerboard with mother of pearl dot position markers and a slotted headstock. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut, and chrome Ibanez open gear tuning machines with ivory buttons.

The AVN6 is a similar model with a Sitka spruce top, a distressed finish and aged components.

The AVN5 was discontinued in 2017.

Specifications[]

Specifications for AVN5
Name: AVN5
Year(s) offered: 2016–2017
Sold in: USA
Made in: China
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Parlor
Dimensions:
  Body length: 495mm/ 19½"
  Width: 387mm/ 15¼"
  Depth: 127mm/ 5"
Top:
  Material: Solid mahogany
  Finish: Open Pore
  Binding: Cream
Back/sides:
  Material: Mahogany
  Finish: Open Pore
Soundhole shape:
Round
Neck
Neck profile:
AVN soft-V shape w/ diamond volute
Neck material:
1-piece mahogany
Neck joint:
Dovetail
Scale length:
634mm/ 25"
Fingerboard:
Rosewood
Inlays:
Mother of pearl dot
Frets:
18 nickel silver
Nut:
Bone
Machine heads:
Ibanez open gear w/ ivory (plastic) buttons
Components
Bridge:
Rosewood (11mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dot)
Saddle:
Bone compensated
Hardware color:
Chrome
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
