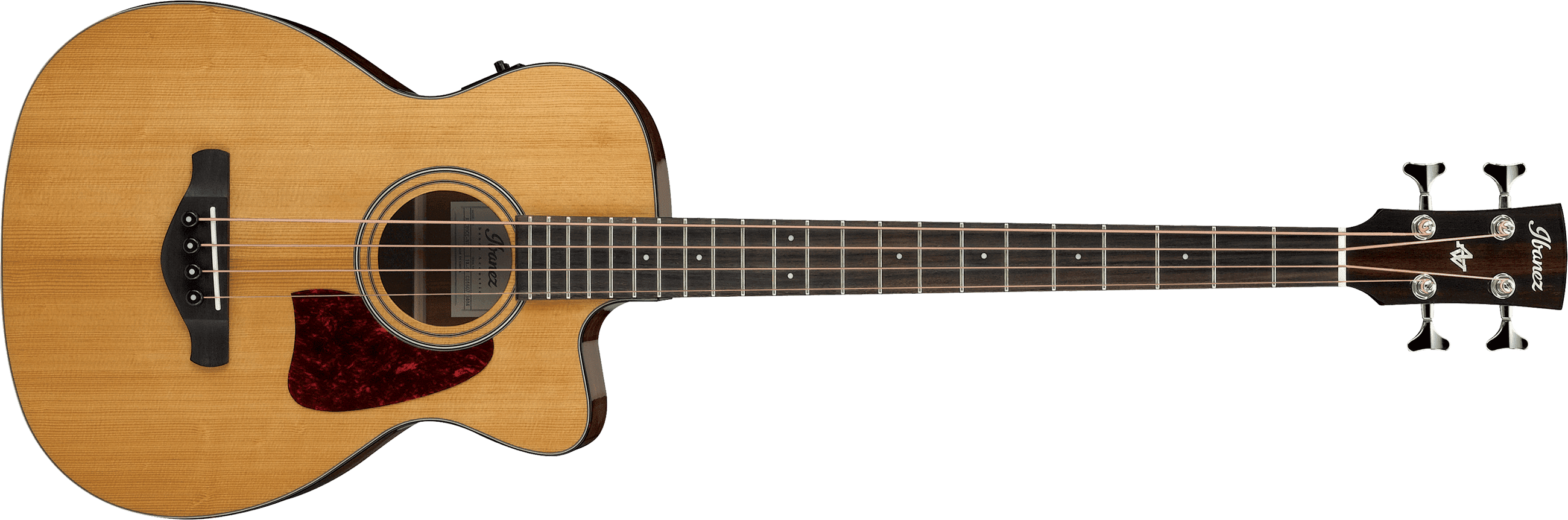

2019 AVCB9CE NT 1X 03
AVCB9CE Natural High Gloss Red copyright sprite

The AVCB9CE is an Artwood Vintage series acoustic/electric bass guitar model introduced by Ibanez for 2017. It is made in China.

The AVCB9CE features a grand concert body shape with a Venetian cutaway and a solid Thermo Aged Sitka spruce top with Thermo Aged spruce X bracing and mahogany back and sides with a high gloss finish. The soundhole is round with a black & white multi rosette and a red tortoise pickguard and the top is bordered with tortoiseshell binding. It has a C-shaped mahogany neck with a 22-fret rosewood fingerboard with white dot position markers. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut and chrome Ibanez tuning machines. Electronics include an AEQ-SP2 preamp with onboard tuner, a Fishman Sonicore undersaddle pickup, a 9V battery, and balanced XLR and ¼" stereo outputs.

For 2018 the rosewood fretboard and bridge were replaced with ovangkol. For 2019 the mahogany back and sides were replaced with okoume and the mahogany neck was replaced with nyatoh.

Specifications

Specifications for AVCB9CE
Years: 2017–2020
Areas: Asia & Africa / China / Europe / North & South America and Oceania / USA
Made in: China
Finishes: Natural High Gloss (NT)
Body
Body type:
Acoustic
Body shape:
Grand concert w/ Venetian cutaway
Dimensions:
  Length: 489mm/ 19¼"
  Width: 387mm/ 15¼"
  Depth: 108mm/ 4¼"
Top:

  Material: Solid Thermo Aged Sitka spruce
  Bracing: Thermo Aged Spruce X & Thermo Aged maple bridge plate
  Finish: High gloss
  Binding: Tortoiseshell

Back/sides:

  Material: 2017–2018: Mahogany
                2019–2020: Okoume
  Finish: High gloss

Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
AVCB C shape
Neck material:
2017–2018: 1-piece mahogany
2019–2020: 1-piece nyatoh
Neck joint:
Dovetail
Scale length:
812.8mm / 32"
Fingerboard:
2017: Rosewood
2018–2020: Ovangkol
Inlays:
White dot
Frets:
22
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
Ibanez AEQ-SP2 w/ onboard tuner
Output jack(s):
Balanced XLR & ¼" stereo
Battery:
9V
Bridge:
2017: Rosewood
2018–2020: Ovangkol (19mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dot)
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Red tortoise
Strings (factory):
.045/.065/.080/.100 (D'Addario EXPPBB170)
Factory tuning:
1G,2D,3A,4E
