2019 AVC9CE OPN 1X 02
AVC9CE Open Pore Natural Red copyright sprite

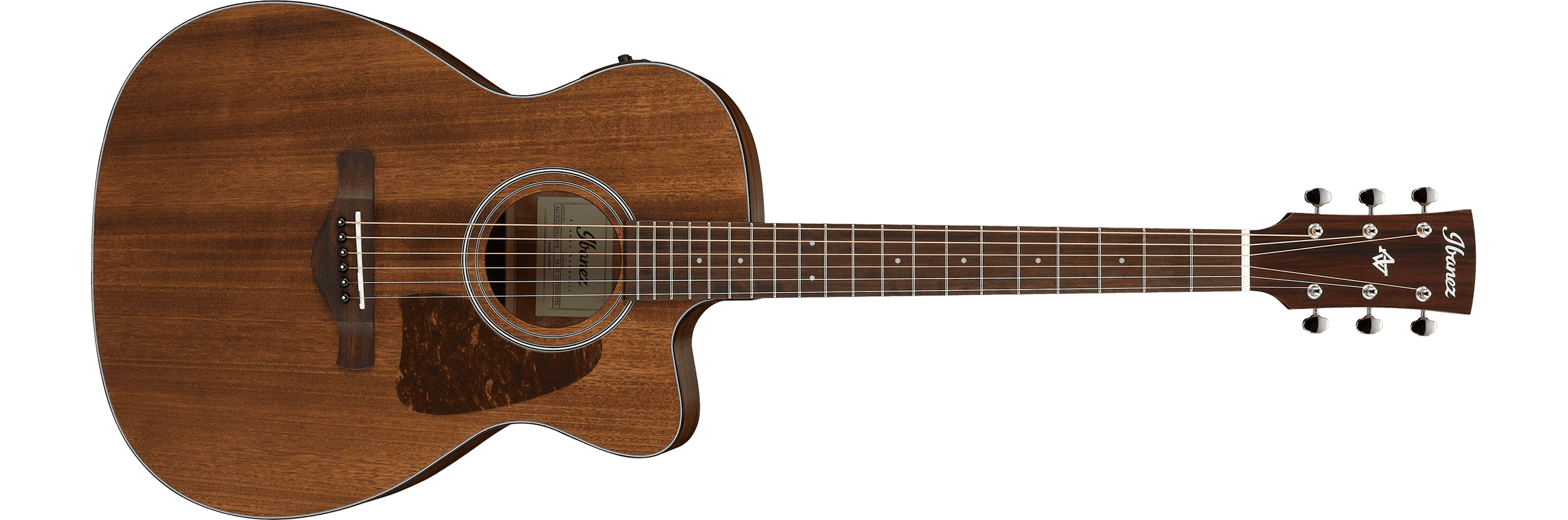

The AVC9CE is an Artwood Vintage series acoustic/electric guitar model introduced by Ibanez in mid 2017. It is made in China.

The AVC9CE features a grand concert body shape with a solid Thermo Aged mahogany top with Thermo Aged spruce X bracing and tortoiseshell binding on mahogany back and sides with an open pore finish. The soundhole is round with a black & white multi rosette and a red tortoise pickguard. It has a soft-V shaped mahogany neck with a 20-fret ovangkol fingerboard with white dot position markers. Components include a compensated bone saddle in an ovangkol bridge with black Ibanez Advantage bridge pins, a bone nut, and chrome Ibanez open gear tuning machines. Electronics include an AEQ-AP2 preamp with onboard tuner, a Fishman Sonicore undersaddle pickup, a 9V battery, and balanced XLR and ¼" outputs.

For 2019 the AEQ-AP2 preamp was replaced with an AEQ-SP2. For 2019 the top was replaced with solid Thermo Aged okoume, the back and sides were replaced with okoume and the mahogany neck was replaced with nyatoh.

The AVC9 is a traditional acoustic version. The AVD9CE is a similar model with a dreadnought body shape and slightly longer scale neck.

Specifications

Specifications for AVC9CE
Years: 2017–2020
Areas: Asia & Africa / China / Europe / North & South America and Oceania / USA
Made in: China
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Cutaway grand concert
Dimensions:
  Length: 489mm/ 19¼"
  Width: 387mm/ 15¼"
  Depth: 108mm/ 4¼"
Top:

  Material: 2017–2018: Solid Thermo Aged mahogany
                2019–2020: Solid Thermo Aged okoume
  Bracing: Thermo Aged Spruce X
  Finish: Open Pore
  Binding: Tortoiseshell

Back/sides:

  Material: 2017–2018: Mahogany
                2019–2020: Okoume
  Finish: Open Pore

Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
AVC soft-V shape
Neck material:
2017–2018: 1-piece mahogany
2019–2020: 1-piece nyatoh
Neck joint:
Dovetail
Scale length:
634mm/ 25"
Fingerboard:
Ovangkol
Inlays:
White dot
Frets:
20
Nut:
Bone
Machine heads:
Ibanez open gear w/ butterbean buttons
Electronics/ Components
Pickup:
Fishman Sonicore
Preamp:
2017: Ibanez AEQ-AP2 w/ onboard tuner
2018–2020: Ibanez AEQ-SP2 w/ onboard tuner
Output jack(s):
Balanced XLR & ¼"
Battery:
9V
Bridge:
Ovangkol (11mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dot)
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Red tortoise
Strings (factory):
2017–2019: .012/.016/.024/.032/.042/.053 (D'Addario EXP16)
2020 .012/.016/.024/.032/.042/.053 (D'Addario XTAPB1253)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
