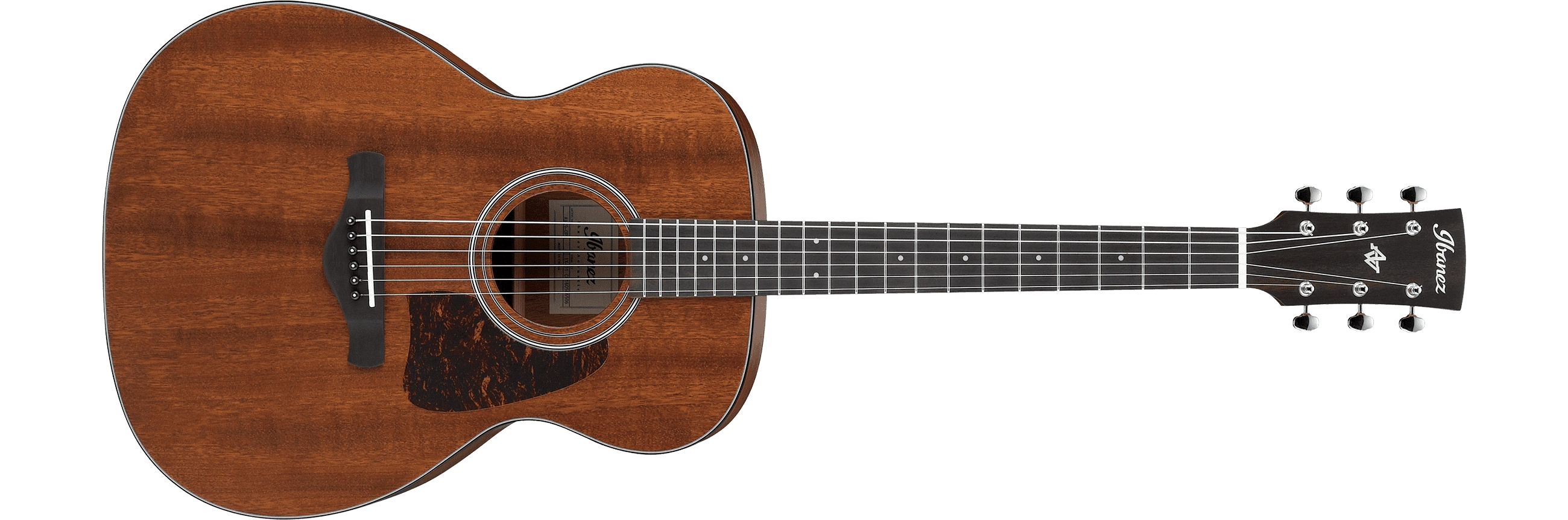

2019 AVC9 OPN 1X 03
AVC9 Open Pore Natural Red copyright sprite

The AVC9 is an Artwood Vintage series acoustic guitar model introduced by Ibanez in mid 2016. It was made in China.

The AVC9 features a grand concert body shape with a solid Thermo Aged mahogany top with Thermo Aged spruce X bracing and mahogany back and sides with an open pore finish. The soundhole is round with a black & white multi rosette and the top is bordered with tortoiseshell binding and a red tortoise pickguard. It has a soft-V shaped mahogany neck with a 20-fret rosewood fingerboard with white dot position markers. Components include a compensated bone saddle in a rosewood bridge with black Ibanez Advantage bridge pins, a bone nut, and chrome Ibanez open gear tuning machines.

For 2018 the rosewood bridge and fretboard were replaced with ovangkol. For 2019 the mahogany back and sides were replaced with okoume, the mahogany neck was replaced with nyatoh and the body length was slightly increased.

The AVC9CE is an acoustic/ electric version. The AVC9L is a left-handed version. The AVD9 is a similar model with a dreadnought body shape and slightly longer scale neck. The AVC10MH is a related model with a solid Thermo Aged mahogany back and Grover tuners. The AVD11 is a related model with a Thermo Aged Caucasian spruce top.

The AVC9 was discontinued after 2019.

Specifications[]

Specifications for AVC9
Name: AVC9
Year(s) offered: 2016–2019
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: China
Price: MSRP: US$599.99 (2016)[1]
Finishes: Open Pore Natural (OPN)
Body
Body type:
Acoustic
Body shape:
Grand Concert
Dimensions:
  Body length: 2016–2018: 489mm/ 19¼"
2019: 495mm/ 19½"
  Width: 387mm/ 15¼"
  Depth: 108mm/ 4¼"
Top:
  Material: Solid Thermo Aged mahogany
  Bracing: Thermo Aged Spruce X & Thermo Aged maple bridge plate
  Finish: Open Pore
  Binding: Tortoiseshell
Back/sides:
  Material:
    2016–2018: Mahogany
    2019: Okoume
  Finish: Open Pore
Soundhole shape:
Round
Soundhole rosette:
Black & white multi
Neck
Neck profile:
AVC soft-V shape
Neck material:
    2016–2018: 1-piece mahogany
    2019: 1-piece nyatoh
Neck joint:
Dovetail
Scale length:
634mm/ 25"
Fingerboard:
2016–2017: Rosewood
2018–2019: Ovangkol
Inlays:
White dot
Frets:
20 nickel silver
Nut:
Bone
Machine heads:
Ibanez open gear (18:1 ratio) w/ butterbean buttons
Components
Bridge:
2016–2017: Rosewood
2018–2019: Ovangkol (11mm string spacing)
Bridge pins:
Ibanez Advantage (black w/ white dot)
Saddle:
Bone compensated
Hardware color:
Chrome
Pickguard:
Red tortoise
Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP16)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

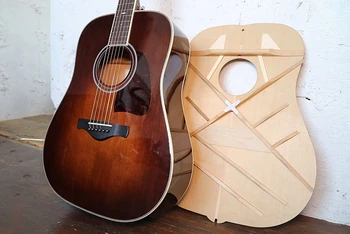

ArtcoreVintageThermo X-bracing
Thermo Aged solid top and spruce X bracing
Thermo-Aged comparison
Tone comparison versus non-Thermo Aged top & back
ArtcoreVintage Grover-tuners
Chrome open gear tuners with butterbean buttons
