AV5D

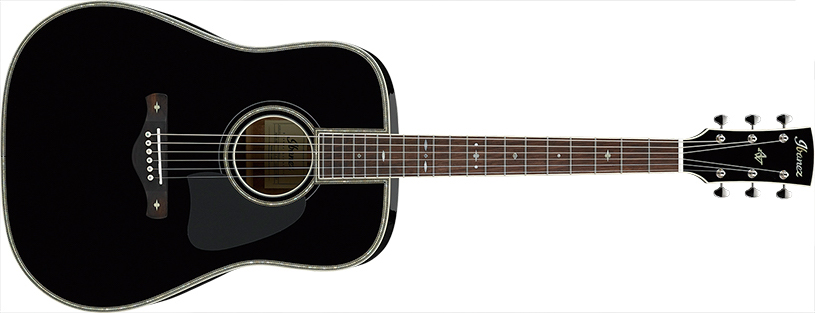

AV5D Black High Gloss

The AV5D is an Artwood Vintage series acoustic guitar model introduced by Ibanez in mid-2017. It was a spot model which was made in China.

The AV5D features a dreadnought body shape with a solid Thermo-Aged Adirondack spruce top with herringbone purfling and ivory binding on mahogany sides and two-piece back with a gloss finish. The soundhole is round with a herringbone rosette. It has a soft-V shaped mahogany neck with a 20-fret rosewood fingerboard with special position markers. Components include a compensated bone saddle in a rosewood bridge with ivory plastic bridge pins, a bone nut, and nickel Grover open gear tuning machines.

The AV5C is a related model with a grand concert body. The AVD6 is a related model with a Sitka spruce top, a non-slotted headstock and a sunburst open pore finish.

The AV5D was offered only in 2017.

Specifications[]

Related content: Artwood Vintage series | Artwood series |

Specifications for AV5D

Name: AV5D

Year(s) offered: 2017

Sold in: USA

Made in: China

Finishes: Black High Gloss (BK)

Body

Body type:
Acoustic

Body shape:
Dreadnought

Dimensions:
  Body length: 508mm/ 20"
  Width: 400mm/ 15¾"
  Depth: 127mm/ 5"

Top:
  Material: Solid Thermo-Aged Adirondack spruce
  Finish: Gloss
  Binding: Herringbone purfling & ivory binding

Back/sides:
  Material: Mahogany
  Strip inlay: Herringbone
  Finish: Gloss

Soundhole shape:
Round

Soundhole rosette:
Herringbone

Neck

Neck profile:
AVD soft-V shape

Neck material:
1-piece mahogany

Neck joint:
Dovetail

Scale length:
651mm/ 25⅝"

Fingerboard:
Rosewood

Inlays:
Special

Frets:
20 nickel silver

Nut:
Bone (45mm)

Machine heads:
Grover open gear

Strings (factory):
.012/.016/.024/.032/.042/.053 (D'Addario EXP11) coated 80/20 bronze

Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Components

Bridge:
Rosewood (11mm string spacing)

Bridge pins:
Plastic (ivory w/ abalone dot)

Saddle:
Bone compensated

Hardware color:
Nickel

Images[]

Additional details

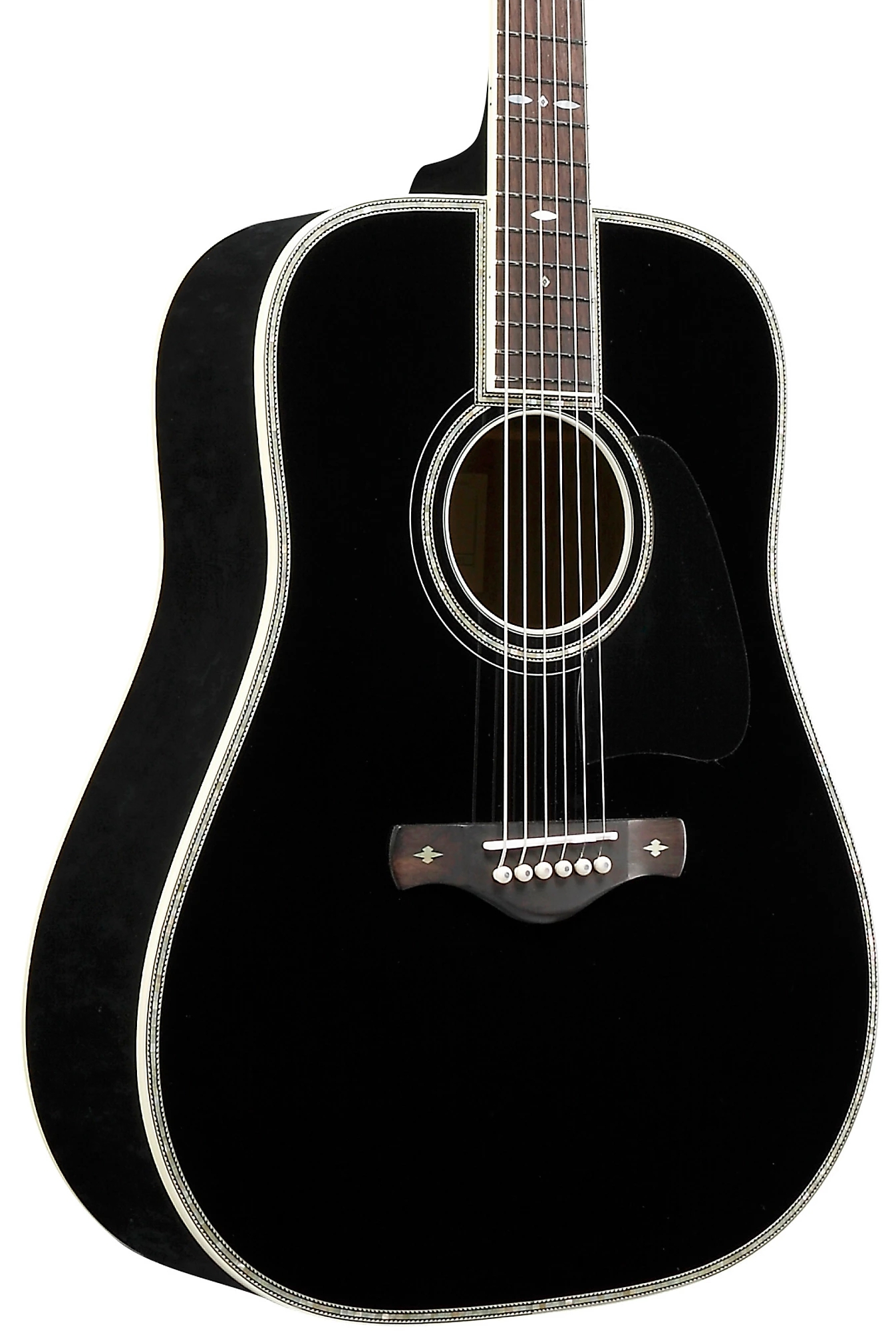

Body front

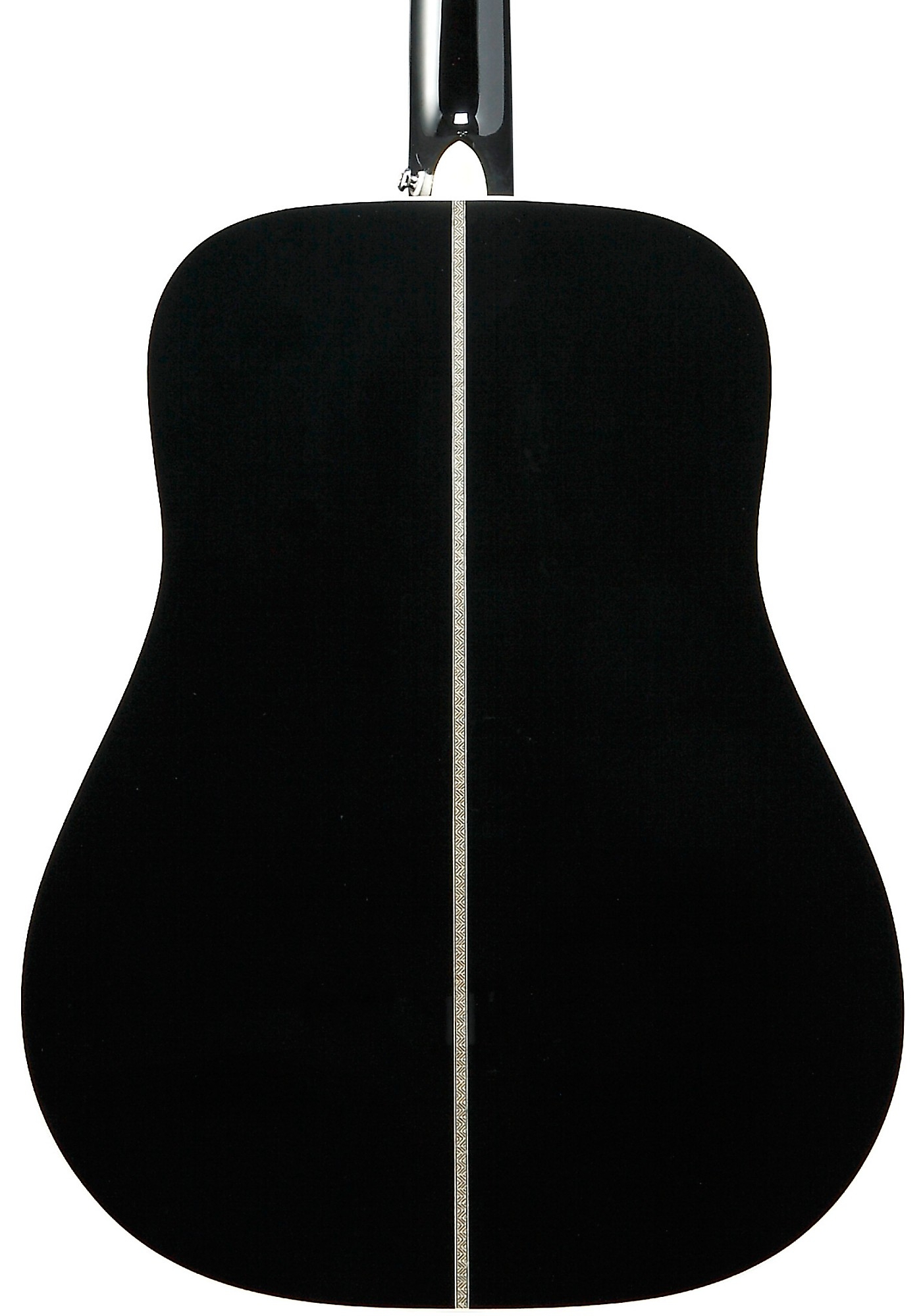

Body rear

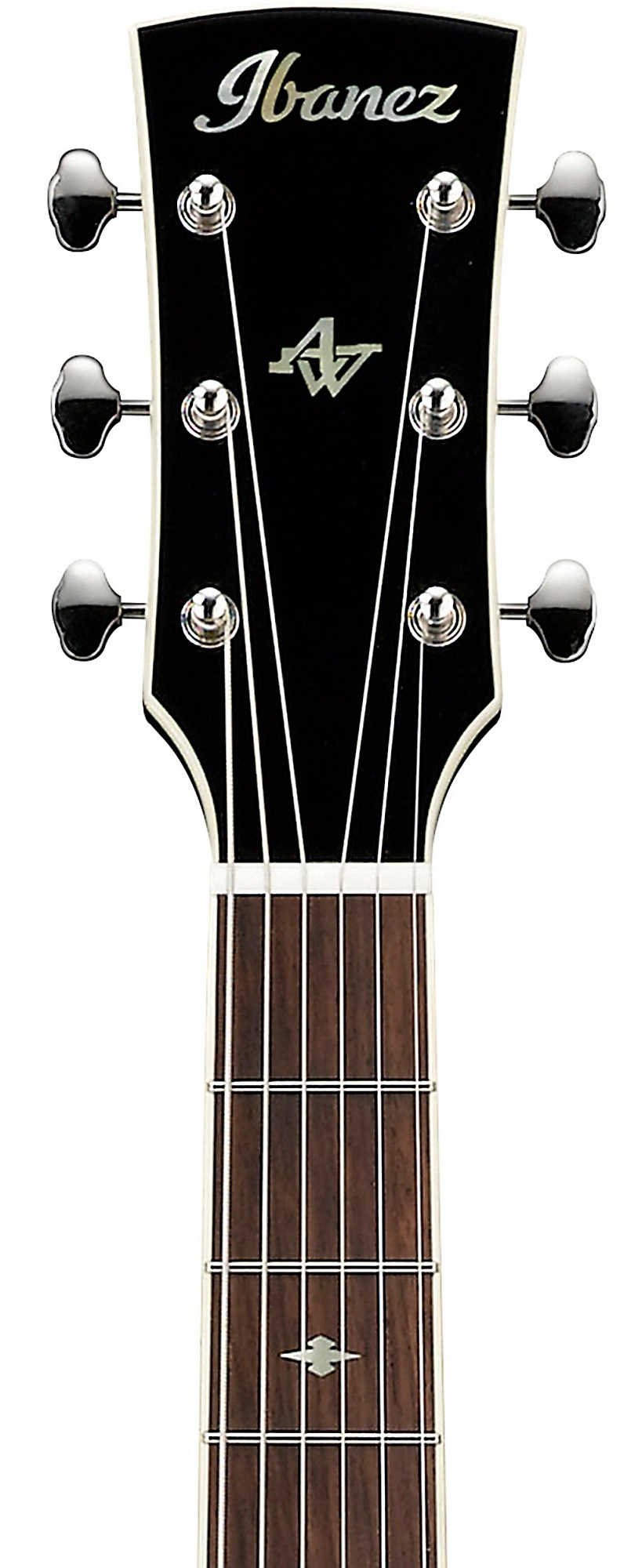

Headstock

Sources[]

AV5D parts list, Hoshino parts catalog, archived December 2022
AV5DBK product listing, Musician's Friend (US retailer), archived December 2022
