2019 ATZ100 SBT 00 01
ATZ100 Sunburst Flat Red copyright sprite

The ATZ100 is a solid body electric guitar model introduced by Ibanez in 2019. It is a signature model of American guitarist Andy Timmons. It is produced in Japan by FujiGen.

The ATZ100 is the first Timmons signature model based on the AZ series; his previous signature guitars have been based on the RG/RT series and the SA series.

The ATZ100 features an alder body bolted to an S-Tech roasted maple neck with a 22-fret roasted maple fingerboard with black dot position markers and Luminlay side dots. Components include a classic Wilkinson/Gotoh VSVG synchronized tremolo bridge with only 4 of 6 screws installed, a set of three DiMarzio Cruiser single-coil-sized humbucking pickups, a bone nut, and Gotoh height adjustable locking tuning machines. A hardshell case is included.

For 2023 the name of the neck profile was changed, but the dimensions remained consistent.

THe ATZ300 is a related model with an HSS pickup configuration.

Specifications[]

Specifications for ATZ100
Model name: ATZ100
Year(s) offered: 2019–2024
Sold in: Worldwide
Made in: Japan
Price: MSRP: JP¥ 350,000 (2019[1]–2021[2]) / JP¥ 390,000 (2024)[3] • SMAP: US$2,799.99 (2024[4])
Finish(es): Sunburst Flat (SBT)
Body
Body type:
Solid body
Body material:
Alder
Neck joint:
AANJ
Bridge:
Wilkinson/Gotoh VSVG tremolo (10.8mm string spacing)
Pickguard:
White
Knob style:
Plastic top hat (white)
Hardware color:
Chrome
Neck
Neck type:
2019–2022: ATZ Prestige
2023–2024: AT Prestige
Neck material:
One-piece S-Tech roasted maple
Scale length:
648mm/ 25½"
Fingerboard material:
S-Tech roasted maple
Fingerboard inlays:
Black dot
Luminlay side dots
Frets:
22 / jumbo stainless steel
Nut:
Oil impregnated bone (42mm)
Machine heads:
Gotoh SG381 H.A.P.-M locking
Electronics/ Strings
Pickup configuration:
SSS
Bridge pickup:
DiMarzio The Cruiser bridge (S) passive/ ceramic
Middle pickup:
DiMarzio The Cruiser middle (S) passive/ ceramic
Neck pickup:
DiMarzio The Cruiser neck (S) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

ATZ100 features and details
2021 ATZ100 SBT 00 01 back
Rear of body

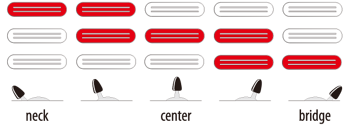

ATZ100 pickup switching
Pickup switching
ATZ100 control layout
Controls layout

Video[]

Ibanez ATZ100 Electric Guitar - Andy Timmons New Signature Model


Sources[]

  1. ATZ100 product page, Ibanez Japan, archived August 2019
  2. ATZ100 product page, Ibanez Japan, archived October 2021
  3. ATZ100 product page, Ibanez China, archived January 2024
  4. ATZ100 product listing, Sweetwater (US retailer), archived February 2024
  • Andy Timmons artist signature page, Ibanez Americas & Oceania, archived June 2022
  • ATZ100 product page, Ibanez USA, archived January 2019
  • ATZ100 product page, Ibanez Europe, archived January 2020
  • ATZ100 product page, Ibanez Japan, archived January 2021
  • ATZ100 product page, Ibanez Asia & Africa, archived May 2022
  • ATZ100 product page, Ibanez Americas & Oceania, archived January 2023
  • ATZ100 product page, Ibanez China, archived January 2024
