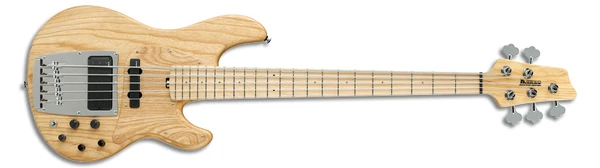

2015 ATK815 NTF 1P 01
ATK815 Natural Flat Red copyright sprite

The ATK815 is an ATK series solid body electric bass model introduced by Ibanez for 2015. It was made in Indonesia as part of the Premium range. In the US it was referred to as the ATK815E.

The ATK815 features an asymmetric double-cutaway ash body bolted to a maple neck with a 22-fret maple fingerboard with black dot position markers. Components include a pair of CAP Sonic passive pickups mounted in a solid ash pickguard, an Ibanez 3-band EQ powered by a 9V battery, an ATK5 bridge with 18mm string spacing, a Graph Tech TUSQ nut and Hipshot open tuning machines with clover keys.

The ATK810 is a four string version. The ATK805 is a very similar model with a different finish.

The ATK815 was discontinued after 2018 along with the entire ATK line.

Specifications[]

Related content: ATK series | Models-icon
Specifications for ATK815/ ATK815E
Model name: ATK815/ ATK815E
Year(s) offered: 2015–2018
Sold in: Japan 2016–2017 / USA
Made in: Indonesia
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Ash
Neck joint:
AANJ
Bridge:
ATK5 fixed (18mm string spacing)
Pickguard:
Solid ash
Knob style:
Black plastic - two B20, three B15
Hardware color:
Chrome
Neck
Neck type:
ATK5
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
22 / medium (Premium edge treatment)
Nut:
Graph Tech Black TUSQ XL (45mm)
Machine heads:
Hipshot 20675KC open w/ clover key
Electronics/ Strings
Bridge pickup:
CAP Double Humbucker passive
Neck pickup:
CAP Sonic Arch5 passive
Electronics:
BEQ 3-band EQ
Controls:
Volume / balancer / bass, treble and mid boost/cut / 3-way pickup selector
Battery:
9V
Output jack:
¼" stereo barrel (side mount)
String gauge (factory):
.045/.065/.085/.105/.130 (D'Addario EXL165 + .130)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details
ATK Hipshot tuners
Hipshot tuners
CAP Double humbucker switching
CAP Double humbucker switching
Controls-layout ATKN3
Controls layout
Freq-response BEQ-3-band
Frequency response charts
