2016 ATK810 NTF 1P 01

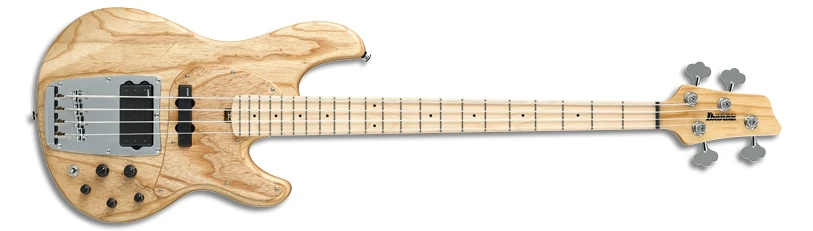

ATK810 Natural Flat Red copyright sprite

The ATK810 is an ATK series solid body electric bass model introduced by Ibanez for 2015. It was made in Indonesia as part of the Premium range. In the US it was referred to as the ATK810E.

The ATK810 features an asymmetric double-cutaway ash body bolted to a maple neck with a 22-fret maple fingerboard with black dot position markers. Components include a pair of CAP Sonic passive pickups mounted in a solid ash pickguard, an Ibanez 3-band EQ powered by a 9V battery, an ATK4 bridge with 19mm string spacing, a Graph Tech TUSQ nut and Hipshot open tuning machines with clover keys.

The ATK815 is a five string version. The ATK800 is a very similar model with a different finish and a rosewood pickguard.

The ATK810 was discontinued after 2018 along with the entire ATK line.

Specifications[]

Related content: Premium series | ATK series | Models-icon
Specifications for ATK810/ ATK810E
Model name: ATK810/ ATK810E
Year(s) offered: 2015–2018
Sold in: Americas & Oceania 2016–2018 / Asia & Africa 2016–2018 / China 2017–2018 / Europe 2016–2018 / Japan 2016–2018 / USA
Made in: Indonesia
Finish(es): Natural Flat (NTF)
Body
Body type:
Solid body
Body material:
Ash
Neck joint:
AANJ
Bridge:
ATK4 fixed (19mm string spacing)
Pickguard:
Solid ash
Knob style:
Black plastic - two B20, three B15
Hardware color:
Chrome
Neck
Neck type:
ATK4
Neck material:
1-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
22 / medium (Premium edge treatment)
Nut:
Graph Tech Black TUSQ XL (42mm)
Machine heads:
Hipshot 20675KC open w/ clover key
Electronics/ Strings
Bridge pickup:
CAP Double Humbucker passive
Neck pickup:
CAP Sonic Arch4 passive
Electronics:
Ibanez BEQ3 3-band
Controls:
Volume / balancer / bass, treble and mid boost/cut / 3-way humbucker coil toggle
Battery:
9V
Output jack:
¼" stereo barrel (side mount)
String gauge (factory):
.045/.065/.085/.105 (D'Addario EXL165)
Factory tuning:
1G,2D,3A,4E (E standard)

Images[]

Additional details
ATK Hipshot tuners
Hipshot tuners
CAP Double humbucker switching
CAP Double humbucker switching
Controls-layout ATKN3
Controls layout
Freq-response BEQ-3-band
Frequency response charts
