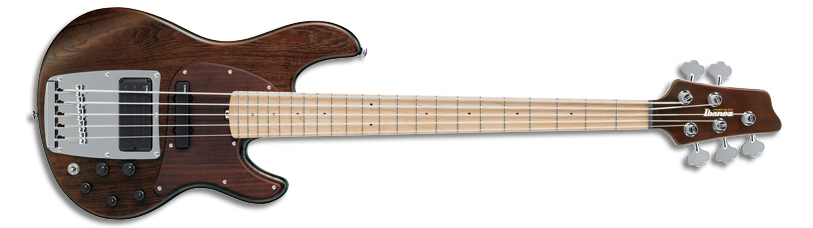

| ATK805 Walnut Flat |
|
The ATK805 is an ATK series solid body electric bass model introduced by Ibanez in mid-2012. It was made in Indonesia as part of the Premium range. In the US it was referred to as the ATK800E.
The ATK805 features an asymmetric double-cutaway ash body bolted to a maple neck with a 22-fret maple fingerboard with black dot position markers. Components include a pair of CAP Sonic passive pickups mounted in a rosewood pickguard, an Ibanez 3-band EQ powered by a 9V battery, an ATK5 bridge with 18mm string spacing, a Graph Tech TUSQ nut and Hipshot open tuning machines with clover keys.
The ATK800 is a four string version. The ATK815 is a very similar model with a different finish and an ash pickguard.
The ATK805 was discontinued after 2015.
Specifications[]
Related content: ATK series |
Specifications for ATK805/ ATK805E
| ||||||||||||||||||||||||||||
|
|
| ||||||||||||||||||||||||||
Images[]
Additional details

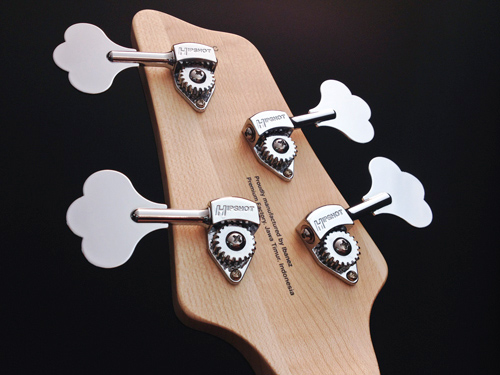

Hipshot tuners

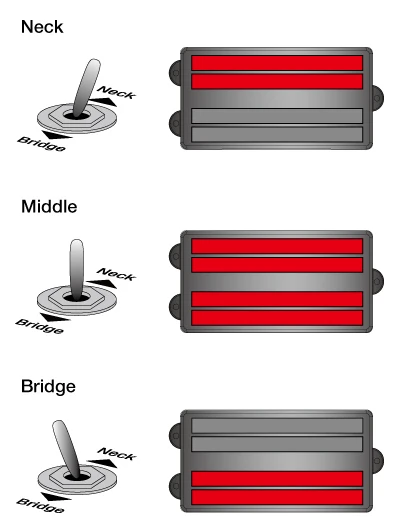

CAP Double humbucker switching
Controls layout

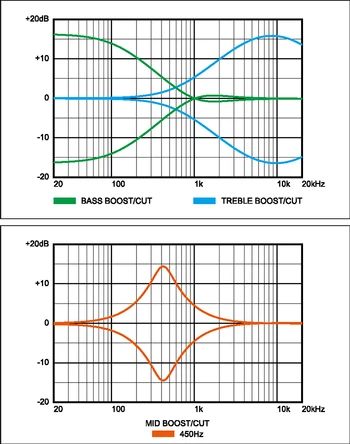

Frequency response charts
Sources[]
- ATK805E product page, Ibanez USA, archived October 2012
- 2013 Japan catalog (p. 55)
- 2015 USA catalog (p. 79)
- ATK805E product page, Ibanez USA, archived February 2015
