ATK700 (2000)

For the later model with the same name, see ATK700 .

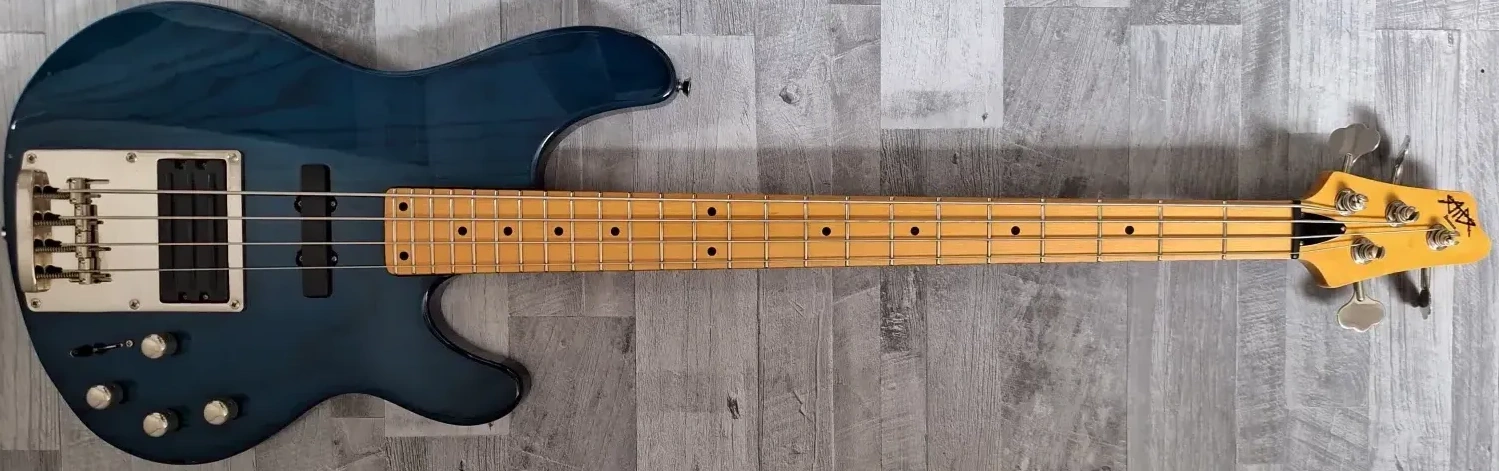

ATK700 Transparent Blue (more images)

The ATK700 is an ATK series solid body electric bass model introduced by Ibanez for 2000. It was produced in Japan by FujiGen as part of the Standard line

The ATK700 features an asymmetric double-cutaway mahogany body with ash top bolted to a laminated maple neck with a 24-fret maple fingerboard with black dot position markers. Components include an ATK-J pickup on the neck position and a single ATK-A triple-coil humbucker pickup mounted in the ATK4 bridge and feeding an Ibanez ATK 3-band EQ powered by a 9V battery, a plastic nut and Wilkinson open gear tuning machines.

The ATK705 is the five-string version.

The ATK700 was discontinued after 2000.

Specifications[]

Related content: ATK series |

Specifications for ATK700 (2000)

Model name: ATK700 (2000)

Year(s) offered: 2000

Sold in: EU / Japan

Made in: Japan

Price: MSRP: ¥ 70.000 (2000)

Finish(es): Transparent Blue (TBL) / Transparent Red (TRD) Japan only

Body

Body type:
Solid body

Body material:
Mahogany w/ Ash top

Neck joint:
AANJ

Bridge:
ATK4 (19mm string spacing)

Knob style:
Knurled metal dome

Hardware color:
nickel

Neck

Neck type:
ATK4

Neck material:
5-piece maple/ walnut

Scale length:
864mm / 34"

Fingerboard material:
maple

Fingerboard inlays:
black dot

Frets:
24 / medium

Nut:
Plastic (42.5mm)

Machine heads:
Wilkinson open gear w/ clover key

Factory tuning:
1G,2D,3A,4E (E standard)

Electronics

Pickup configuration:
HS

Bridge pickup:
ATK-A (H) triple coil

Neck pickup:
ATK-J (S)

Electronics:
ATK 3-band

Controls:
Volume / 3-band EQ (bass, treble and mid boost/cut) / 5-way triple humbucker coil selector

Battery:
9V

Output jack:
¼" stereo barrel (side mount)

About this table

Images[]

Other available finishes

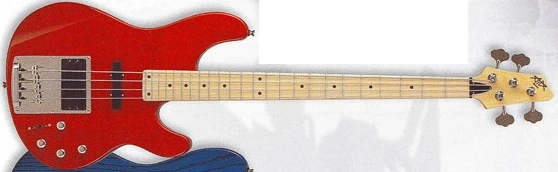

Transparent Red

Additional details

ATK (3-band EQ)

ATK triple coil pickup
