ATK400

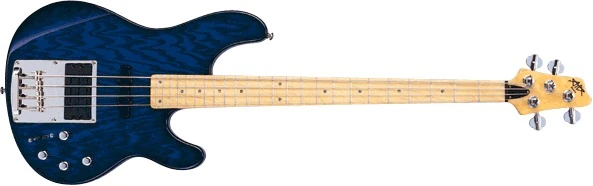

ATK400 Transparent Blue (more images)

The ATK400 is an ATK series solid body electric bass model introduced by Ibanez in 2001. It was made in South Korea as part of the Standard range.

The ATK400 features an asymmetric double-cutaway mahogany body with ash top bolted to a laminated maple neck with a 24-fret maple fingerboard with mother of pearl dot position markers. Components include a single CAP triple humbucker pickup mounted in the ATK4 bridge and feeding an Ibanez ATK 3-band EQ powered by a 9V battery, a plastic nut and Wilkinson open gear tuning machines.

The ATK405 is a five string version.

The ATK400 was discontinued after 2003.

Specifications

Related content: ATK series |

Specifications for ATK400

Model name: ATK400 Year(s) offered: 2001–2003 Sold in: Asia & South America 2003 / Europe / Japan Made in: South Korea Price: MSRP: JP¥: 55,000 (2002–2003) Transparent Blue finish / JP¥ 65,000 (2002–2003) Sunburst finish Finish(es): Sunburst (SB) / Transparent Blue (TB)
Body Body type: Solid body Body material: Mahogany w/ Ash top Neck joint: AANJ Bridge: ATK4 (19mm string spacing) Knob style: Knurled metal dome Hardware color: Chrome	Neck Neck type: ATK4 Neck material: 3-piece maple Scale length: 864mm / 34" Fingerboard material: Maple Fingerboard inlays: Mother of Pearl dot Frets: 24 / medium Nut: Plastic (42mm) Machine heads: Wilkinson open gear w/ clover key	Electronics/ Strings Pickup configuration: J/H Bridge pickup: ATK (H) triple coil Neck pickup: ATK (J) Electronics: ATK 3-band Controls: Volume / 3-band EQ (bass, treble and mid boost/cut) / 5-way triple humbucker coil selector Battery: 9V Output jack: ¼" stereo barrel (side mount) Factory tuning: 1G,2D,3A,4E (E standard)

About this table

Images

Available finishes

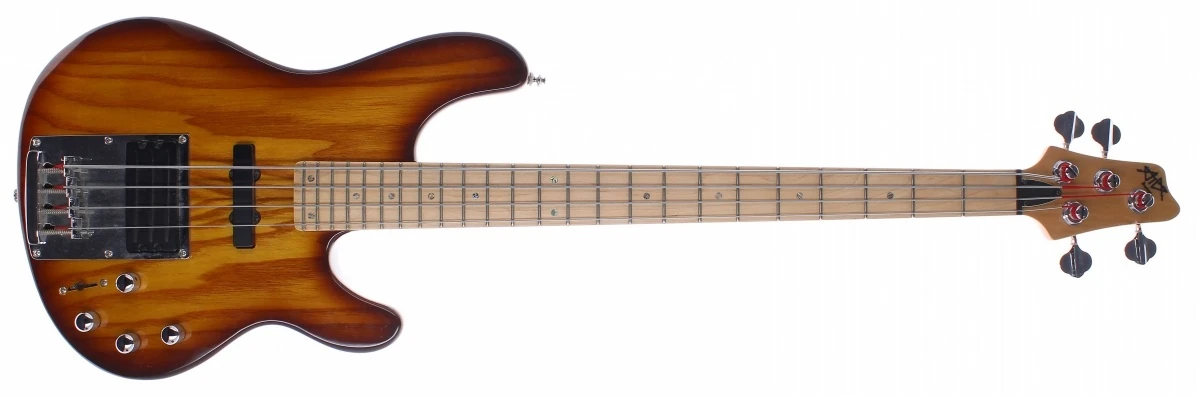

Sunburst

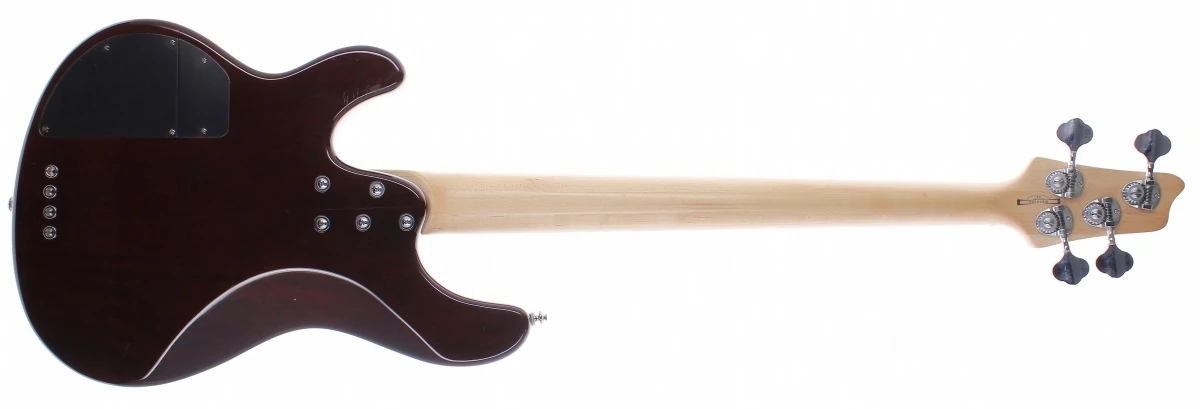

Sunburst (rear)

Video

Ibanez ATK400 ( Demo by "Brooksy's Bass Corner" )

Sources

• 2002 Europe catalog (p. 41)
• 2002 Japan catalog (p. 5)
• 2003 Europe catalog (p. 48)
• 2003 Japan catalog (p. 42)
• 2003 World catalog (p. 48)
