ATK300 (2007–2010)

For the earlier model with the same name, see ATK300 (1994–1999).

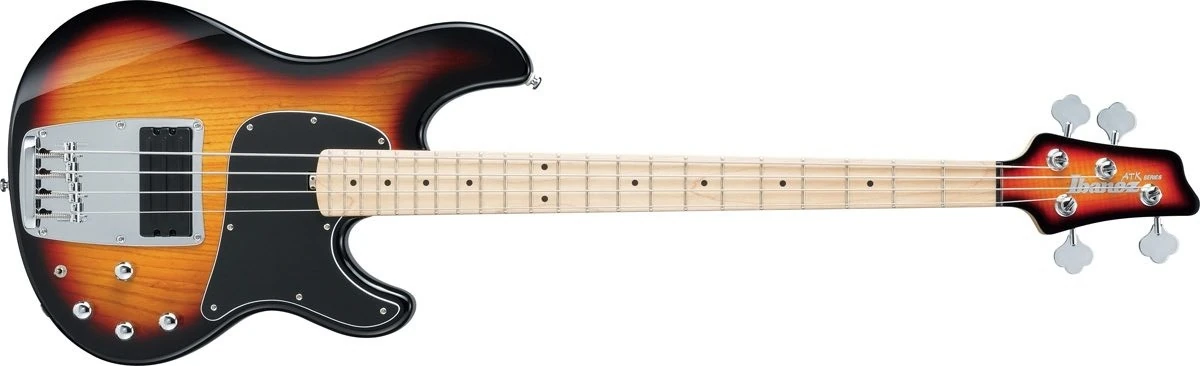

ATK300 Trifade Burst (more images)

The ATK300 is an ATK series solid body electric bass model introduced by Ibanez for 2007. It was produced in Indonesia as part of the Standard line

The ATK300 features an asymmetric double-cutaway light ash body bolted to a laminated maple neck with a 22-fret maple fingerboard with black dot position markers. Components include a single ATK-A triple-coil humbucker pickup mounted in the ATK4 bridge and feeding an Ibanez ATK 3-band EQ powered by a 9V battery, a plastic nut, a white pearloid or black pickguard (dependent on the finish), and Wilkinson open gear tuning machines.

The ATK305 is a five-string version. The ATK300R is a related model with a rosewood fretboard and a metal pickguard.

The ATK300 was discontinued after 2010.

Specifications

Related content: ATK series |

Specifications for ATK300 (2007–2010)

Model name: ATK300 (2007–2010) Year(s) offered: 2007–2010 Sold in: Americas & Oceania / Asia & South America 2007 / Europe / USA Made in: Indonesia Finish(es): Black (BK) / Bright Blue (BBL) 2008 / Natural (NT) / Red Sparkle (RSP) 2008–2010 USA only / Trifade Burst (TBF) 2007 only
Body Body type: Solid body Body material: Light ash Neck joint: AANJ Bridge: ATK4 (19mm string spacing) Pickguard: Black (NT & SB finishes) White pearloid (BK, BBL & RSD finishes) Strap buttons: Standard metal button Knob style: Knurled metal dome Hardware color: Chrome	Neck Neck type: ATK4 Neck material: 3-piece maple Scale length: 864mm / 34" Fingerboard material: Maple Fingerboard inlays: Black dot Frets: 22 nickel silver Nut: Plastic (42.5mm) Machine heads: Wilkinson open gear w/ clover key Factory tuning: 1G,2D,3A,4E (E standard)	Electronics/ case Pickup configuration: H Bridge pickup: ATK-A (H) triple coil Electronics: ATK 3-band Controls: Volume / 3-band EQ (bass, treble and mid boost/cut) / 3-way triple humbucker coil selector Battery: 9V Output jack: ¼" stereo barrel (side mounted) Recommended case: W50BTB

About this table

Images

Other available finishes

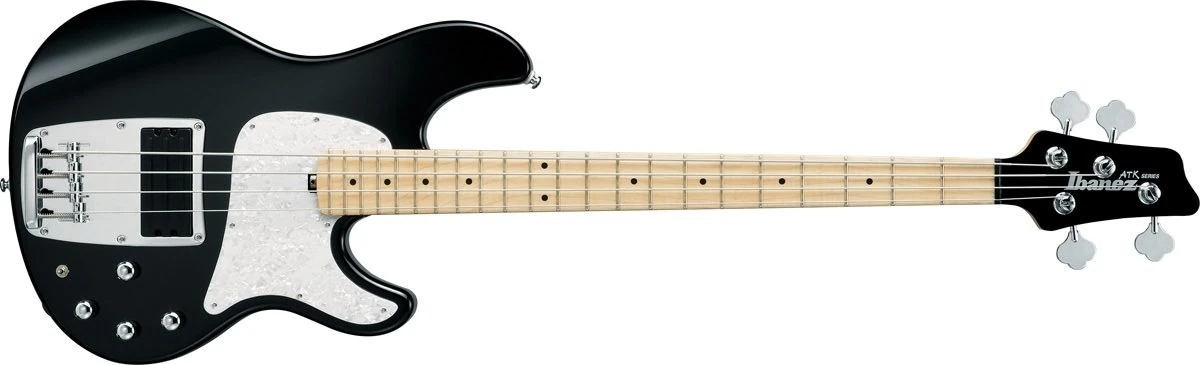

Black

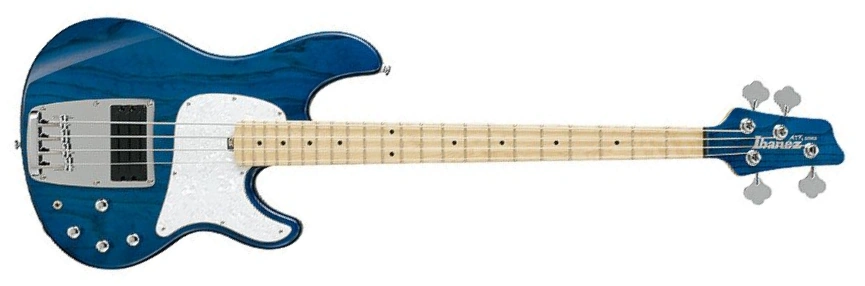

Bright Blue

Natural

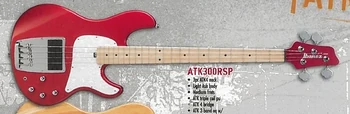

Red Sparkle

Additional details

ATK (3-band EQ)

ATK triple coil pickup

Sources

• 2007 USA electric bass catalog (p. 22)
• 2007 World catalog (p. 60)
• 2007 Europe electrics catalog (p. 60)
• 2007 North America electrics catalog (p. 60)
• 2008 USA electric bass catalog (p. 29)
• 2008 Europe electrics catalog (p. 63)
• 2008 Americas & Oceania electrics catalog (p. 55)
• 2009 Europe electrics catalog (p. 64)
• 2009 Americas & Oceania electrics catalog (p. 72)
• 2010 Europe electrics catalog (p. 62)
• 2010 USA electrics catalog (p. 90)
