ATK300R (1997–1999)

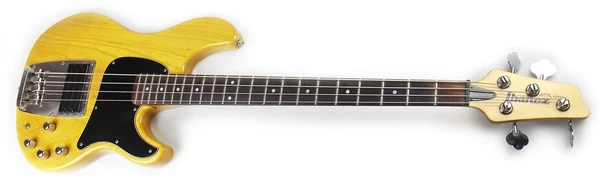

ATK300R Natural (more images)

The ATK300R is an ATK series solid body electric bass model introduced by Ibanez for 1997. It was made in Japan by FujiGen as part of the Standard line

The ATK300R (also referred to as ATK300-R) features an asymmetric double-cutaway light ash body bolted to a laminated maple neck with a 22-fret rosewood fingerboard with pearloid dot position markers. Components include a single ATK-A triple humbucker pickup mounted in the ATK4 bridge and feeding an Ibanez ATK 3-band EQ powered by a 9V battery, a plastic nut and Wilkinson open gear tuning machines.

The ATK300 is a related model with maple fretboard. The ATK300FL is a fretless version.

The ATK300R was discontinued after 1999.

Specifications[]

Related content: ATK series |

Specifications for ATK300R / ATK300-R

Model name: ATK300R / ATK300-R

Year(s) offered: 1997–1999

Sold in: Japan

Made in: Japan

Price: MSRP: JP¥:60,000 (1997–1998) ; JP¥:65,000 (1999)

Finish(es): Natural (NT) / Sunburst (SB) / Transparent Black (TK) 1997 only

Body

Body type:
Solid body

Body material:
Light ash

Neck joint:
AANJ

Bridge:
ATK4 (19mm string spacing)

Pickguard:
black

Knob style:
Knurled metal dome

Hardware color:
Chrome

Neck

Neck type:
ATK4

Neck material:
3-piece maple

Scale length:
864mm / 34"

Fingerboard material:
Rosewood

Fingerboard inlays:
22 fret-lines w/ white dots

Nut:
Plastic (42mm)

Machine heads:
Wilkinson open gear w/ clover key

Electronics/ Strings

Pickup configuration:
H

Bridge pickup:
ATK-A (H) triple coil

Electronics:
ATK 3-band

Controls:
Volume / 3-band EQ (bass, treble and mid boost/cut) / 3-way triple humbucker coil selector

Battery:
9V

Output jack:
¼" stereo barrel (side mount)

Factory tuning:
1G,2D,3A,4E (E standard)

About this table

Images[]

Other available finishes

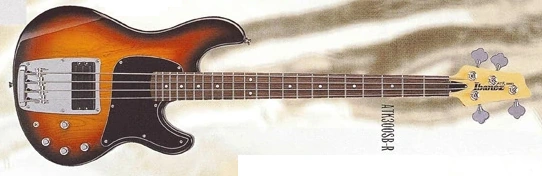

Sunburst

Transparent Black

Additional details

ATK (3-band EQ)

ATK triple coil pickup
