ATK200

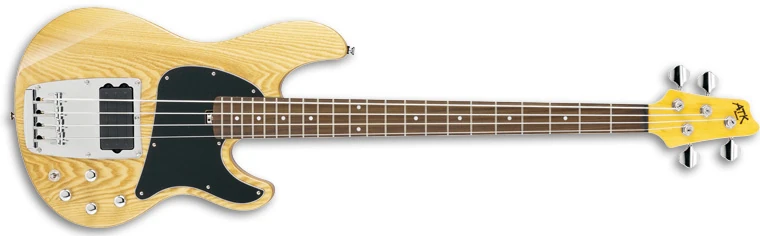

ATK200 Natural (more images)

The ATK200 is an ATK series solid body electric bass model introduced by Ibanez in mid-2010. It was made in China as part of the Standard range.

The ATK200 features an asymmetric double-cutaway ash body bolted to a laminated maple neck with a 22-fret rosewood fingerboard with pearl dot position markers. Components include a single CAP Double humbucker pickup mounted in the ATK4 bridge and feeding an Ibanez ATK N2 3-band EQ powered by a 9V battery, a black pickguard, a plastic nut and Wilkinson open gear tuning machines.

For 2013 the neck dimensions were changed and pearl fretboard inlays were replaced with white acrylic dots.

The ATK205 is a five string version. The ATK200TP is a very similar model with a tortoise pickguard.

The ATK200 was discontinued after 2015.

Specifications

Related content: ATK series |

Specifications for ATK200

Model name: ATK200 Year(s) offered: 2010–2015 Sold in: Americas & Oceania / Europe / Japan / USA 2010–2014 Made in: China Price: MSRP: US$551.10 (2011–2013) / ¥58,000 (2011–2014) / ¥65,000 (2015) • SMAP: €369 (2015) Finish(es): Black (BK) 2010–2013 / Natural (NT) / Soda Blue (SOB) 2011
Body Body type: Solid body Body material: Ash Neck joint: AANJ Bridge: ATK4 (19mm string spacing) Pickguard: 3-ply black/ white/ black Knob style: Knurled metal dome Hardware color: Chrome	Neck Neck type: ATK4 Neck material: 3-piece maple Scale length: 864mm / 34" Fingerboard material: Rosewood Fingerboard inlays: 2010–2012: Pearl dot 2013–2015: White acrylic dot Frets: 22 / medium Nut: Plastic (43mm) Machine heads: Wilkinson open gear w/ clover key	Electronics/ Strings Bridge pickup: CAP Double Humbucker passive Electronics: ATK N2 3-band Controls: Volume / 3-band EQ (bass, treble and mid boost/cut) / 3-way double humbucker coil selector Battery: 9V Output jack: ¼" stereo barrel (side mount) String gauge (factory): .045/.065/.085/.105 (D'Addario EXL165) Factory tuning: 1G,2D,3A,4E (E standard)

About this table

Images

Available finishes

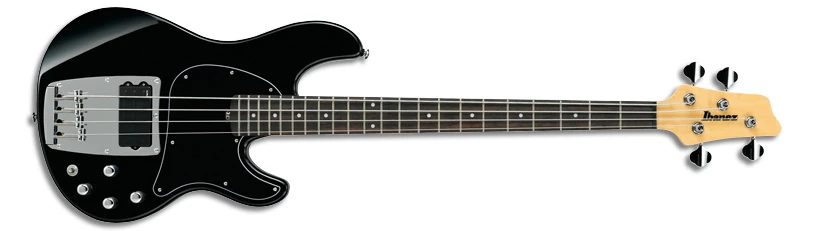

Black

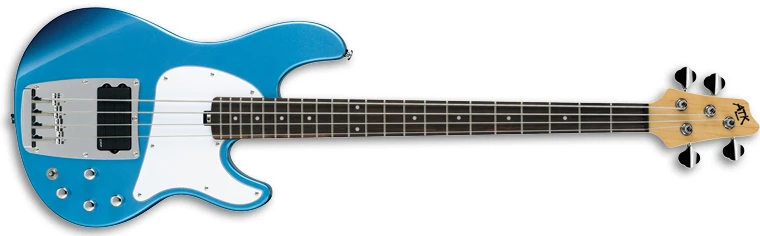

Soda Blue

Additional details

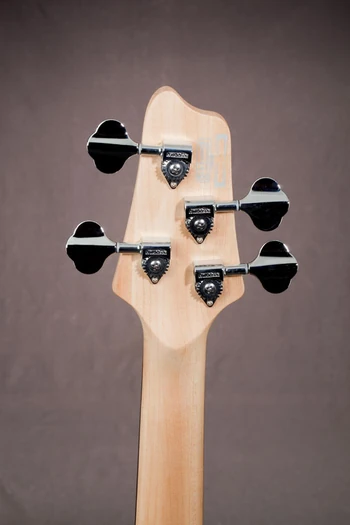

Headstock rear and Wilkinson open gear tuners

CAP Double humbucker switching

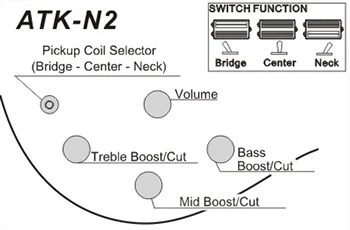

Controls layout

Controls layout

Frequency response

Sources

• ATK200 product page, Ibanez USA, archived September 2011
• 2013 Japan catalog (p. 55)
• ATK200 product page, Ibanez USA, archived April 2013
• 2014 Americas & Oceania catalog (p. 43)
• 2015 USA catalog (p. 79)
