ATK1300

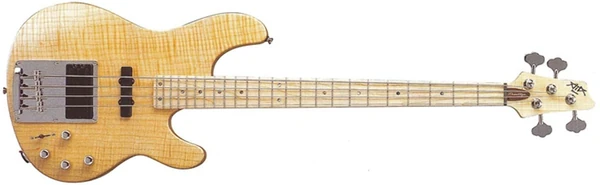

ATK1300 Oil (more images)

The ATK1300 is an ATK series solid body electric bass model introduced by Ibanez for 1999. It was produced in Japan by FujiGen as part of the upscale Prestige line.

The ATK1300 features an asymmetric double-cutaway mahogany body with exquisite AAA flamed maple top bolted to a laminated maple neck with a 24-fret maple fingerboard with mother of pearl dot position markers. Components include an Ibanez ATK-J singel-coil on the neck position and an Ibanez ATK-A triple-coil humbucker pickup mounted in the ATK4 bridge and feeding an Ibanez ATK 3-band EQ powered by a 9V battery, a plastic nut and Wilkinson open gear tuning machines.

The ATK1305 is the five-string version.

The ATK1300 was discontinued after 2000.

Specifications[]

Related content: Prestige series | ATK series |

Specifications for ATK1300

Model name: ATK1300

Year(s) offered: 1999–2000

Sold in: Europe / Japan

Made in: Japan

Price: MSRP: ¥ 125.000 (1999–2000)

Finish(es): Oil (OL)

Body

Body type:
Solid body

Body material:
Mahogany w/ AAA flamed maple top

Neck joint:
AANJ

Bridge:
ATK4 (19mm string spacing)

Knob style:
Knurled metal dome

Hardware color:
Chrome

Neck

Neck type:
ATK4

Neck material:
3-piece maple

Scale length:
864mm / 34"

Fingerboard material:
maple

Fingerboard inlays:
mother of pearl dot

Frets:
24 / medium (prestige edge treatment)

Nut:
Plastic (42.5mm)

Machine heads:
Wilkinson open gear w/ clover key

Factory tuning:
1G,2D,3A,4E (E standard)

Electronics

Pickup configuration:
HS

Bridge pickup:
IBZ ATK-A (H) triple coil

Neck pickup:
IBZ ATK.J (S)

Electronics:
ATK 3-band

Controls:
Volume / 3-band EQ (bass, treble and mid boost/cut) / 5-way triple humbucker coil selector

Battery:
9V

Output jack:
¼" stereo barrel (side mount)

About this table

Images[]

Additional details

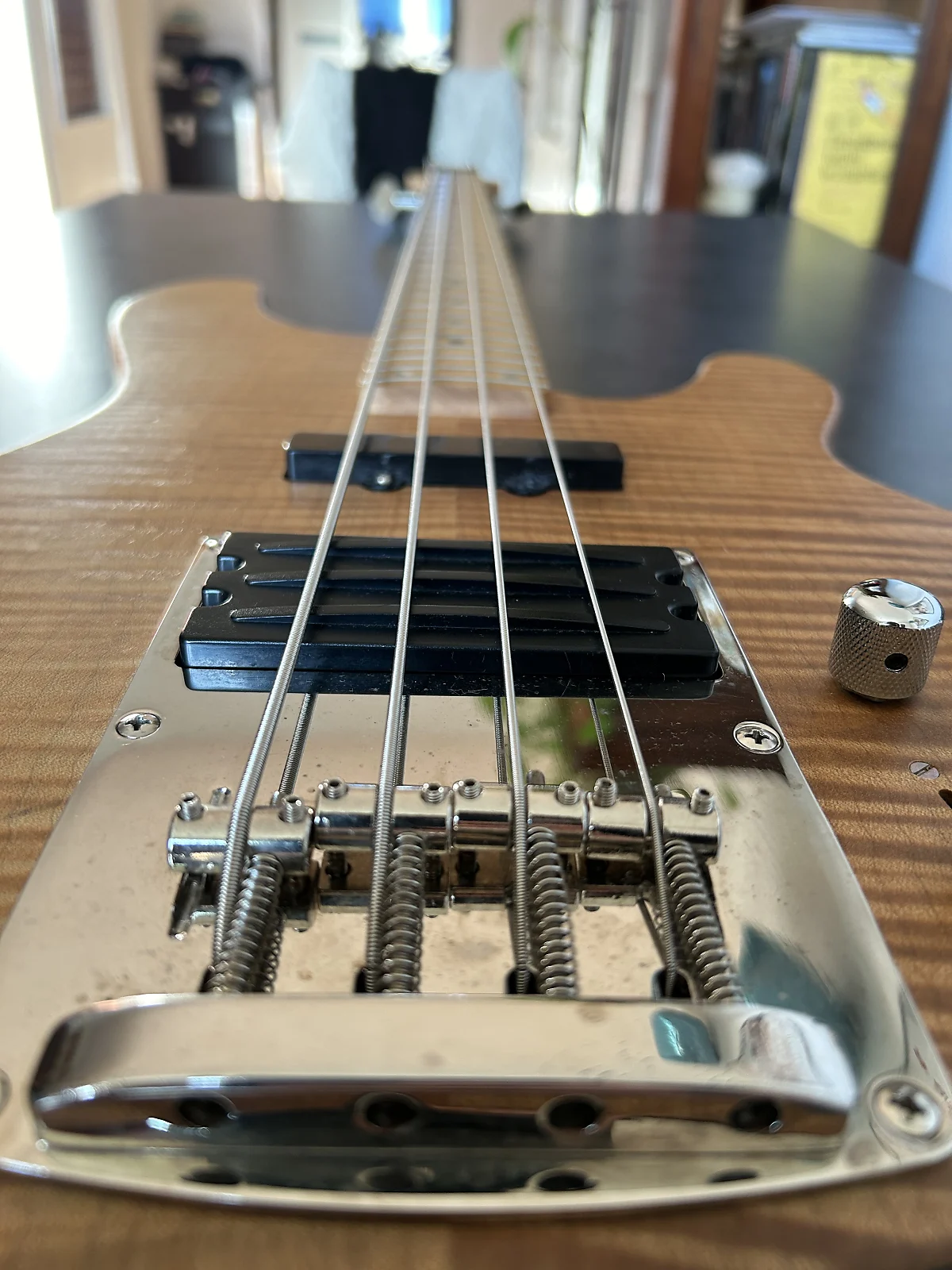

Bridge

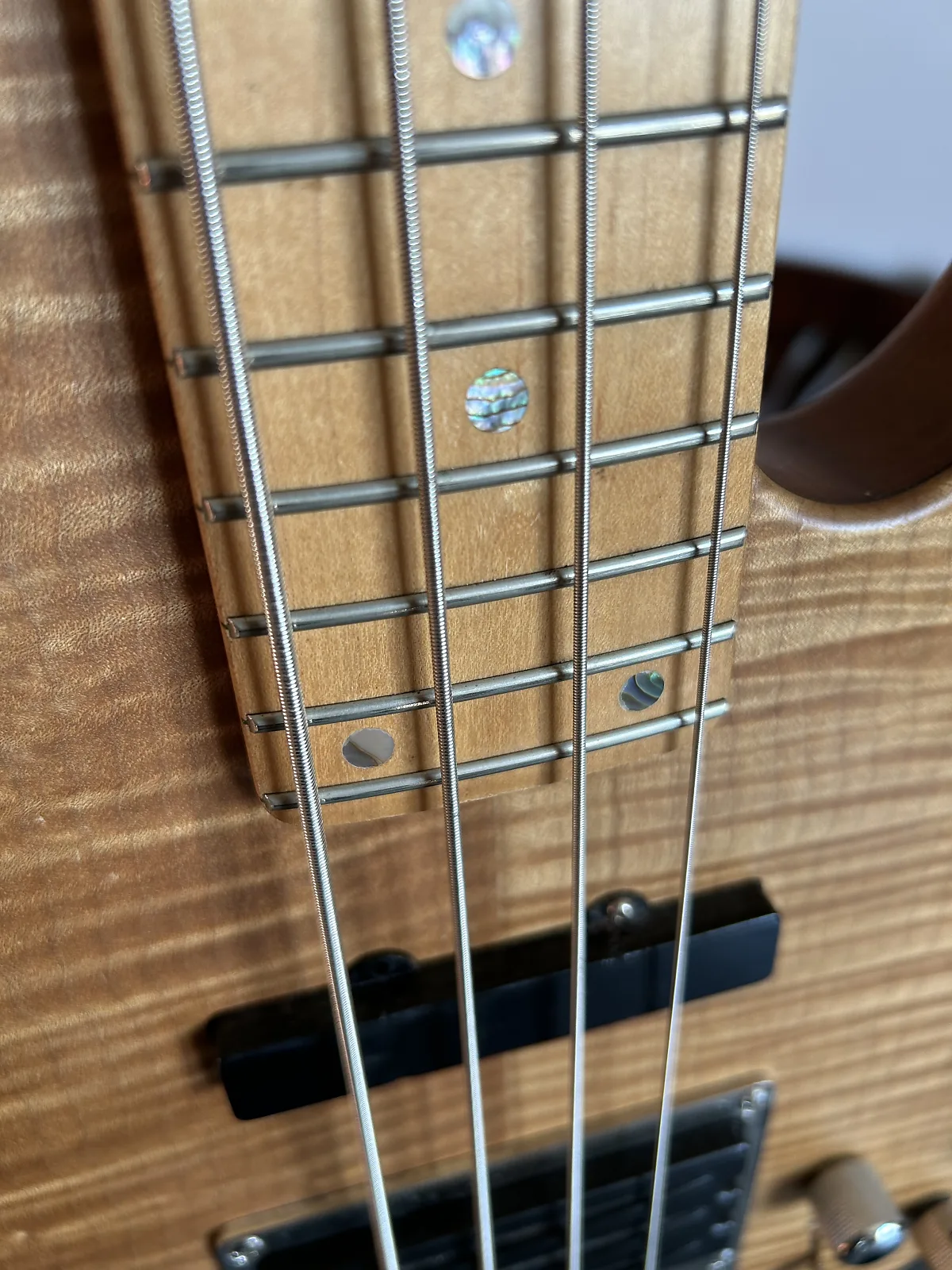

Fretboard inlays

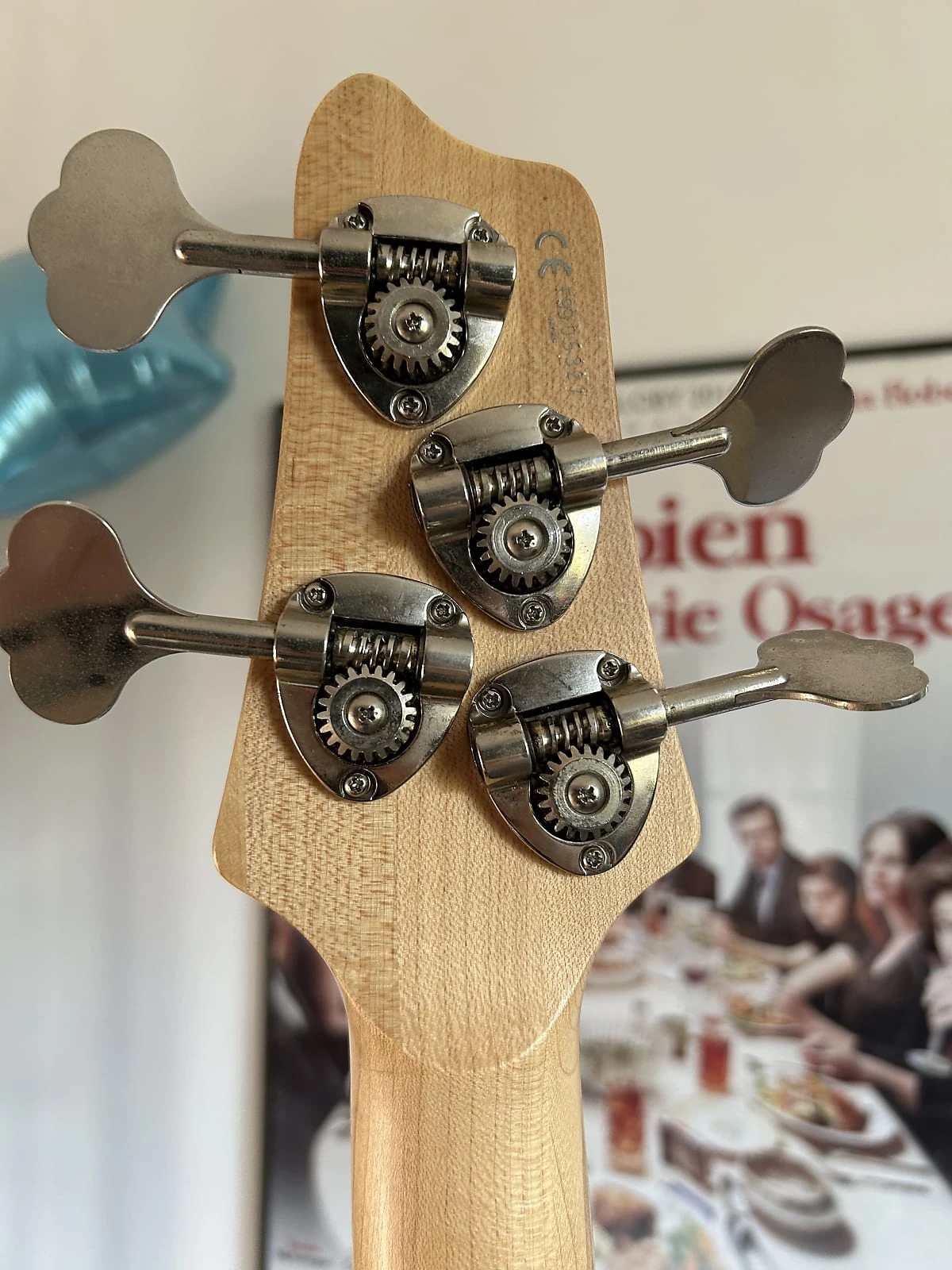

Tuners

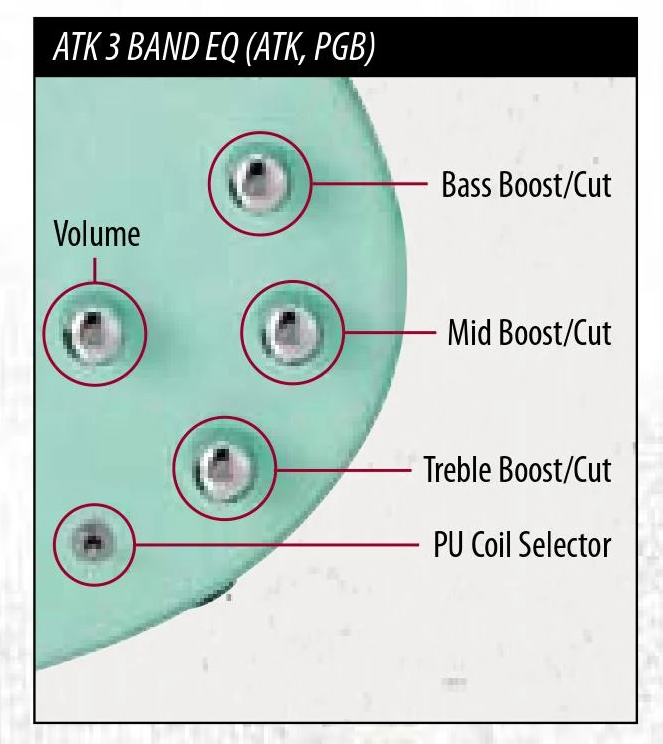

ATK (3-band EQ)

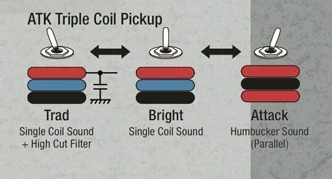

ATK triple coil pickup

ATK1300
