2013 ATK1205 00-01 NT

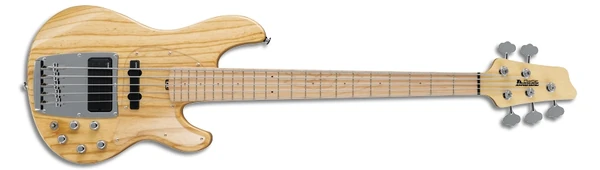

ATK1205 Natural Red copyright sprite

The ATK1205 is a five string ATK series solid body electric bass model introduced by Ibanez for 2011. It was made in Japan by FujiGen as part of the Prestige range.

The ATK1205 features an asymmetric double-cutaway ash body bolted to a maple neck with a 22-fret maple fingerboard with black dot position markers. Components include Ibanez CAP passive pickups with a double humbucker mounted in the bridge plate and a Sonic Arch single-coil mounted in a clear plastic pickguard, an Ibanez ATK N3 preamp with 3-band EQ powered by a 9V battery, an ATK5 bridge with 18mm string spacing, a Graph Tech TUSQ nut and Ibanez open gear tuning machines.

For 2015 the preamp was changed to the Ibanez BEQ3 with 3-band EQ.

The ATK1200 is a four string version.

The ATK1205 was discontinued after 2015.

Specifications[]

Related content: Prestige series | ATK series | Models-icon
Specifications for ATK1205
Model name: ATK1205
Year(s) offered: 2013–2015
Sold in: Japan / USA 2013–2014
Made in: Japan
Price: MSRP: US$2,399.99 (2013)[1] / ¥195,000 (2011)[2] / ¥205,000 (2015)[3]
Finish(es): Natural (NT)
Body
Body type:
Solid body
Body material:
Ash
Neck joint:
AANJ
Bridge:
ATK5 (18mm string spacing)
Pickguard:
Transparent plastic
Knob style:
Knurled metal dome
Hardware color:
Chrome
Neck
Neck type:
ATK5 HP
Neck material:
3-piece maple
Scale length:
864mm / 34"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
22 / medium nickel silver
Nut:
Graph Tech Black TUSQ XL (45mm)
Machine heads:
Ibanez GB11W open gear
Electronics/ Strings
Pickup configuration:
HHS
Bridge pickup:
CAP Double Humbucker passive
Neck pickup:
CAP Sonic Arch5 passive
Electronics:
2013–2014: Ibanez ATK N3 3-band
2015: Ibanez BEQ3 3-band
Controls:
Volume / balancer / bass, treble and mid boost/cut / 3-way humbucker coil toggle
Battery:
9V
Output jack:
¼" stereo barrel (side mount)
String gauge (factory):
.045/.065/.085/.105/.130 (D'Addario EXL165 + .130)
Factory tuning:
1G,2D,3A,4E,5B (E Standard)

Images[]

Additional details
CAP Double humbucker switching
CAP Double humbucker switching
Controls-layout ATKN3
Controls layout

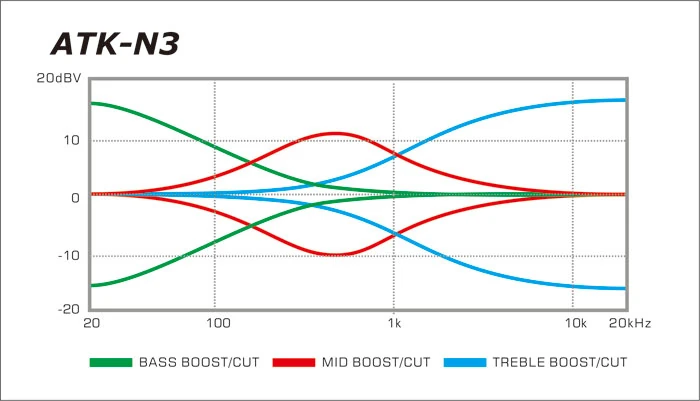

Freq-resp ATK-N3 3bandEQ
Frequency response (ATK N3) 2011–2014

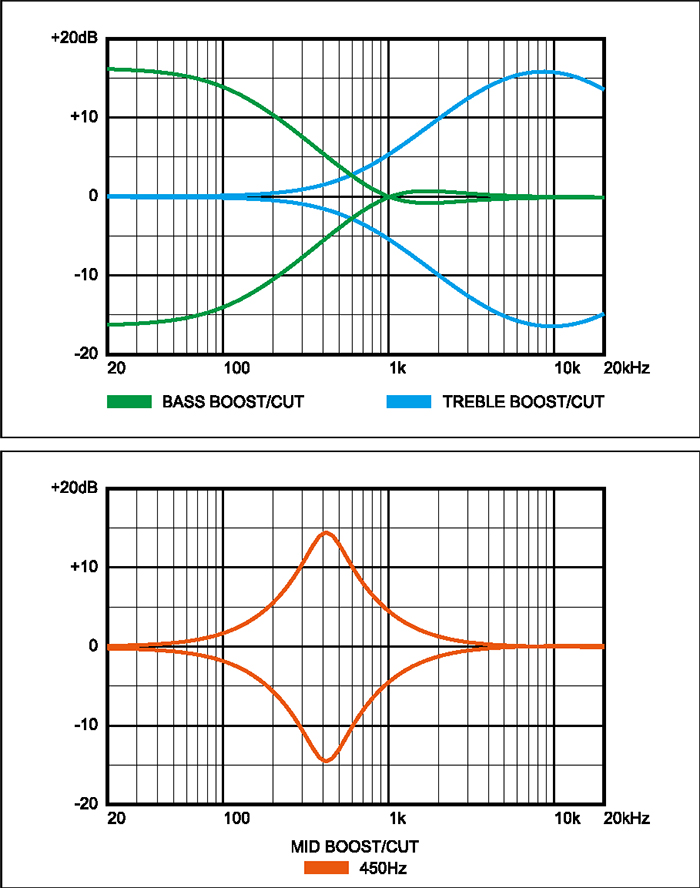

Freq-response BEQ-3-band
Frequency response (BEQ3) 2015
