AT10P SB

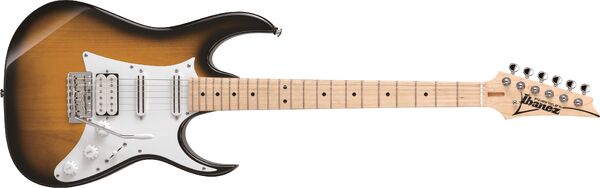

AT10P with Sunburst finish (more images) Red copyright sprite

The AT10P is a solid body electric guitar model introduced by Ibanez in 2013. It is a signature model of American guitarist Andy Timmons. It was produced in Indonesia as part of the Premium line and is a mass-produced version of Timmon's AT100CL.

The RG body shape is used for the AT10P but in terms of specifications it more closely resembles a Fender Stratocaster than a typical RG. It features an alder body bolted to a titanium reinforced maple neck with a 22-fret maple fingerboard with black dot position markers. Components include a Wilkinson WV6 synchronized tremolo bridge with only 4 of 6 screws installed, DiMarzio pickups with a standard humbucker in the bridge position and two single-coil sized humbuckers in the middle and neck positions, and a Graph Tech TUSQ nut.

The AT10RP is a similar model introduced in 2016 with a rosewood fretboard and different finish.

The AT10P was discontinued after 2020.

Specifications[]

Specifications for AT10P
Model name: AT10P
Year(s) offered: 2013–2020
Sold in: Worldwide
Made in: Indonesia
Finish(es): Sunburst (SB)
Body
Body type:
Solid body
Body material:
Alder
Neck joint:
AANJ
Bridge:
Wilkinson WV6-SB tremolo (10.8mm string spacing)
Pickguard:
White
Knob style:
Plastic top hat (white)
Hardware color:
Chrome w/ white knobs
Neck
Neck type:
AT Premium
Neck material:
1-piece maple w/ KTS titanium rods
Scale length:
648mm/ 25½"
Fingerboard material:
Maple
Fingerboard inlays:
Black dot
Frets:
22 / jumbo nickel silver (Premium edge treatment)
Nut:
Graph Tech White TUSQ (40.5mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HSS
Bridge pickup:
DiMarzio AT-1 (H) passive/ alnico
Middle pickup:
DiMarzio The Cruiser middle (H) passive/ ceramic
Neck pickup:
DiMarzio The Cruiser neck (H) passive/ ceramic
Controls:
Master volume / master tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details

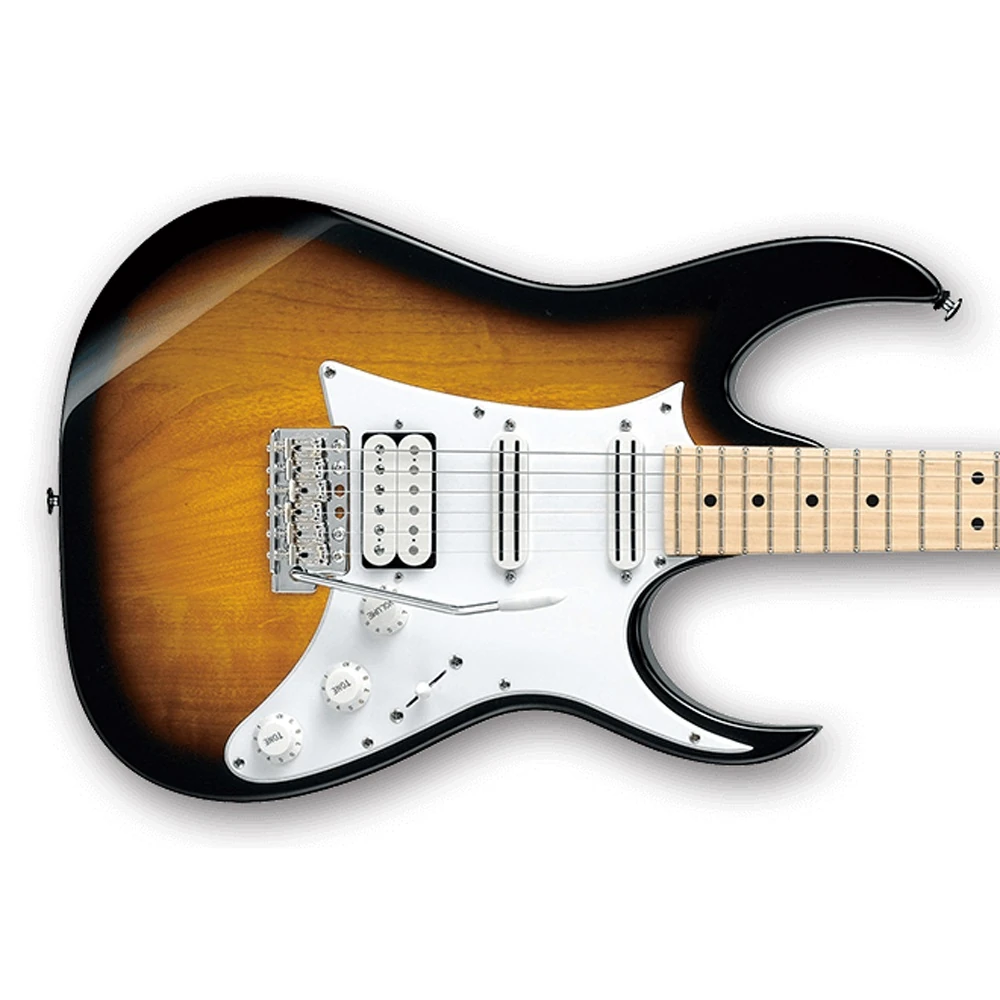

AT10P front
Front of body

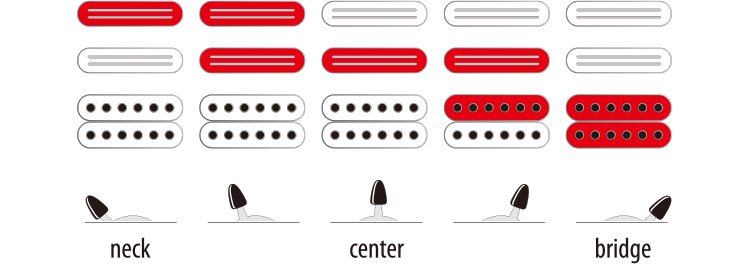

HSS 5-way humbuckers
Pickup switching

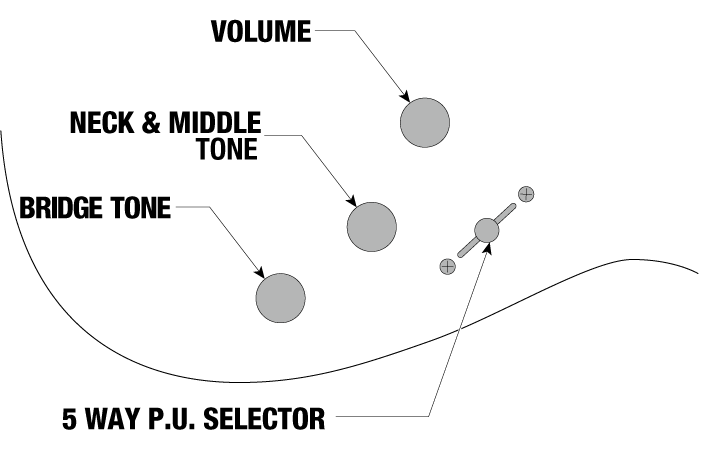

Controls V2T5
Controls layout

Video[]

Andy Timmons on the features and design of his AT10P Ibanez signature model


Sources[]

  • Andy Timmons artist page, Ibanez Europe, archived November 2017
  • AT10P product page, Ibanez USA, archived May 2013
  • 2013 USA catalog (p. 9)
  • AT10P product page, Ibanez USA, archived May 2016
  • 2017 Europe catalog (p. 11)
  • AT10P product page, Ibanez Europe, archived November 2017
  • AT10P product page, Ibanez USA, archived January 2018
  • AT10P product page, Ibanez USA, archived January 2019
  • AT10P product page, Ibanez Europe, archived January 2020
