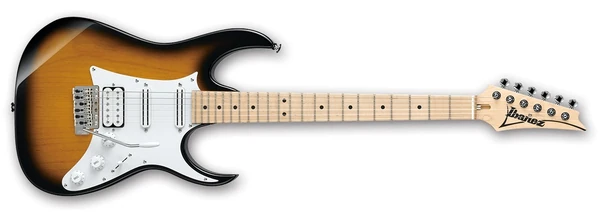

AT100CL SB.gif
AT100CL Sunburst Red copyright sprite.png

The AT100CL is a solid body electric guitar model introduced by Ibanez in 2009. It is a signature model of American guitarist Andy Timmons. It is produced in Japan by FujiGen.

The AT100CL is a re-creation of the first signature model Ibanez made for Timmons, the AT100. The AT100 was sold in very limited numbers in 1999, but the AT100CL is a regular production model.

The RG body is used for the AT100CL but in terms of specifications it more closely resembles a Fender Stratocaster than a typical RG; it was originally based off the RT series. It features an alder body bolted to a maple neck with a 22-fret maple fingerboard with black dot position markers. Components include a classic Wilkinson/Gotoh VSVG synchronized tremolo bridge with only 4 of 6 screws installed, DiMarzio pickups with a standard humbucker in the bridge position and two single-coil sized humbuckers in the middle and neck positions, a bone nut and Gotoh height adjustable locking tuning machines.

The AT10P and AT10RP are similar mass-market models which are made in Indonesia.


Specifications for AT100CL
Model name: AT100CL
Year(s) produced: 2009–2021
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: Japan
Finish(es): Sunburst (SB)
Body type:
Solid body
Body material:
Neck joint:
Wilkinson/Gotoh VSVG tremolo (10.8mm string spacing)
Knob style:
Plastic top hat (white)
Hardware color:
Neck type:
AT Prestige
Neck material:
1-piece maple
Scale length:
648mm/ 25½"
Fingerboard material:
Fingerboard inlays:
Black dot
22 / jumbo (Prestige edge treatment)
Bone (42mm)
Machine heads:
Gotoh SG381 H.A.P.-M locking
Electronics/ Strings
Pickup configuration:
Bridge pickup:
DiMarzio AT-1 (H) passive/ ceramic
Middle pickup:
DiMarzio The Cruiser middle (H) passive/ ceramic
Neck pickup:
DiMarzio The Cruiser neck (H) passive/ ceramic
Master volume / 2 tone / 5-way lever pickup selector
Output jack:
¼" stereo barrel (side mounted)
String gauge (factory):
.010/.013/.017/.026/.036/.046 (D'Addario EXL110)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)


Additional details
HSS 5-way humbuckers.png
Pickup switching
Controls V2T5.png

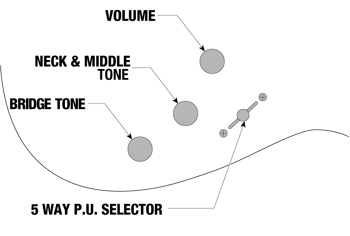

Controls layout
2020 AT100CL SB back.jpg

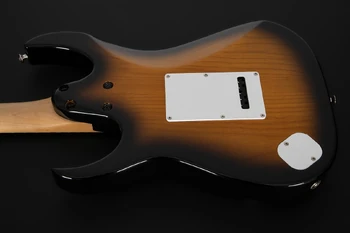

Rear of body
