2020 ASV113 RNT 5B 01.png
ASV113 Resonant Natural Red copyright sprite.png

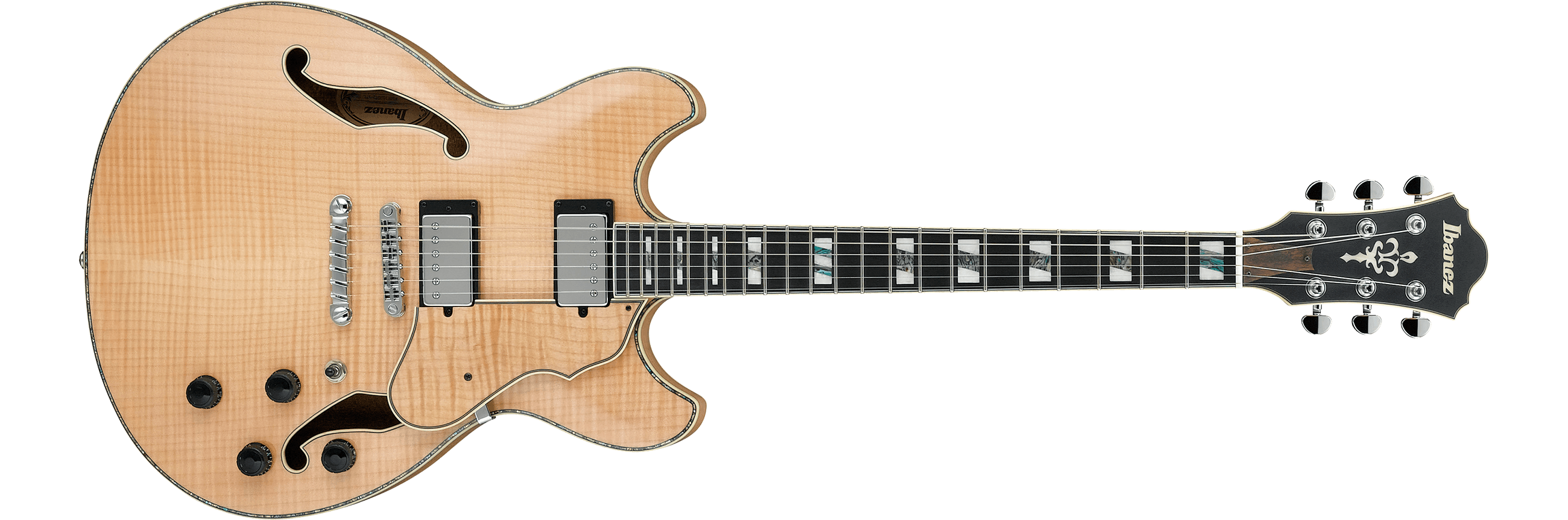

The ASV113 is an Artstar series hollow body electric guitar model introduced by Ibanez for 2020. It is made in Indonesia and sold exclusively in Japan as a spot model.

The ASV113 features a semi-hollow, double-cutaway body design with a laminated flamed maple top with ƒ holes, abalone purfling and ivory binding on flamed maple back and sides mated to a set-in nyatoh and maple neck with a 22-fret ebony fingerboard with ivory binding and acrylic and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with chrome covers and individual volume and tone controls, a Gibraltar Artist tune-o-matic style bridge with a Quik Change III tailpiece, a bone nut, a flamed maple pickguard which matches the body, Sure Grip III knobs, and Ibanez tuning machines.

For 2021 the fretboard material was changed to Macassar ebony.

The ASV103 is a similar model with a spruce top.

Specifications

Specifications for ASV113
Model name: ASV113
Year(s) produced: 2020–2021
Sold in: Japan
Made in: Indonesia
Finish(es): Resonant Natural (RNT)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:

  Material: Spruce (laminated)
  Binding: Abalone purfling and ivory binding

Back/sides:

  Material: Flamed maple

Neck joint:
Set-in
Bridge:
Gibraltar Artist (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
Flamed maple w/ ivory multi-binding
Knob style:
Sure Grip III (Black)
Hardware color:
Chrome
Neck
Neck type:
Artstar
Neck material:
3-piece nyatoh/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
2020: Ebony w/ ivory binding
2021: Macassar ebony w/ ivory binding
Fingerboard inlays:
Acrylic & abalone split block
Frets:
22 / medium (Artstar edge treatment)
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle.png
Pickup switching
Controls 2V2T3.png
Control layout
