2016 ASV10A TCL 12 01
ASV10A Tobacco Burst Low Gloss (more images) Red copyright sprite

The ASV10A is a hollow body electric guitar model introduced by Ibanez for 2016. It was made in China as part of the Artcore Vintage series.

The ASV10A features a semi-hollow body, double cutaway design with a laminated maple top with ƒ holes and cream multi-binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with black binding and aged acrylic block position markers. Components include a pair of Ibanez Classic Elite humbucking pickups with antique chrome covers and individual volume and tone controls, a Tune-o-matic style bridge and tailpiece, a plastic nut, a black pickguard, Sure Grip III knobs, and Ibanez tuning machines with half moon buttons. The finish and hardware are lightly reliced to suggest age.

For 2018 the fretboard was changed to treated New Zealand pine.

The ASV10AL is a left-handed version. The AMV10A is a similar version with a slightly smaller body. The AFV10A is a similar full-hollow body model.

The ASV10A was discontinued in 2018.

Specifications[]

Specifications for ASV10A
Year(s) offered: 2016–2018
Sold in: Asia & Africa / China / Europe / USA
Made in: China
Finish(es): Tobacco Burst Low Gloss (TCL) / Transparent Cherry Red Low Gloss (TRL) / Transparent Black Low Gloss (TKL)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:
  Material: Maple (laminated)
  Binding: Black & white multi-ply
Back/sides:
  Material: Maple
Neck joint:
Set-in
Bridge:
ART-1 (10.4mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
3-ply black/ white/ black
Knob style:
Sure Grip III (deep honey)
Hardware color:
Antique chrome
Neck
Neck type:
Artcore ASV
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
2016–2017: Rosewood w/ black binding
2018: Treated New Zealand pine w/ black binding
Fingerboard inlays:
Aged acrylic block
Frets:
22 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Classic Elite bridge (H) w/ antique chrome cover
Neck pickup:
Ibanez Classic Elite neck (H) w/ antique chrome cover
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details

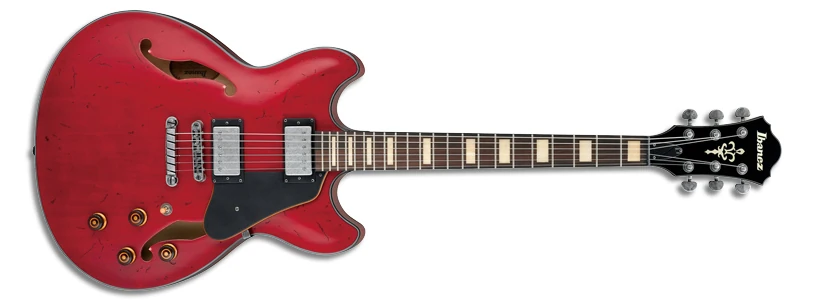

2017 ASV10A TRL 12 02
Transparent Cherry Red Low Gloss

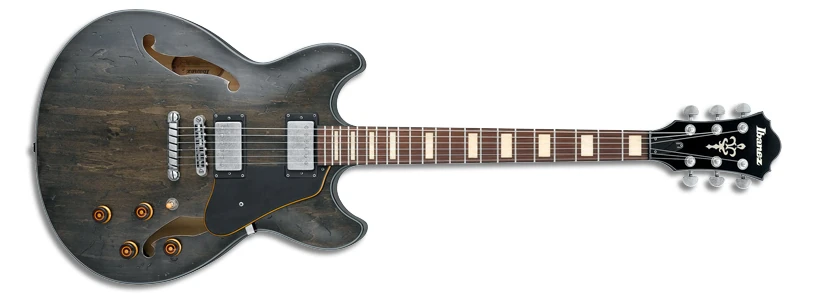

2018 ASV10A TKL 12 02
Transparent Black Low Gloss
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout

Video[]

2016 Ibanez ASV10A-TCL ( Review )
