2011 ASR75V WNB 12 01

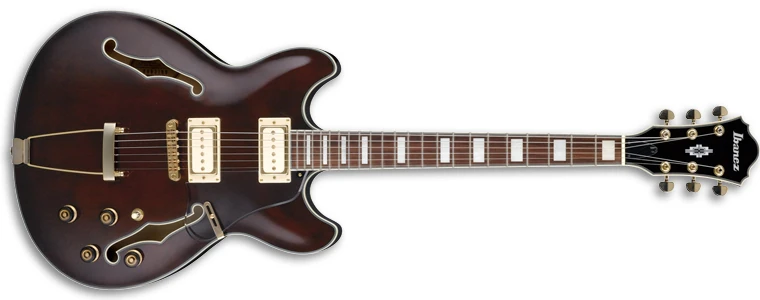

ASR75V Walnut Brown Red copyright sprite

The ASR75V is an Artcore series hollow body electric guitar model introduced by Ibanez for 2011. It was produced in China.

The ASR75V features a double-cutaway, semi-hollow body design with an arched laminated maple top with ƒ holes and ivory binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and acrylic block markers. Components include a pair of Ibanez Artcore P90 single coil pickups with gold rings and ivory covers, a Tune-o-matic style bridge with trapeze tailpiece, a clear plastic pickguard, a plastic nut, Sure Grip III knobs, and Ibanez tuning machines.

The ASR75 is a similar model with chrome hardware. The ASR76T is a related model with humbucking pickups, a vintage vibrato tailpiece and racing stripes.

The ASR75V was discontinued in 2014.

Specifications

Specifications for ASR75V
Year(s) produced: 2011–2014
Sold in: Japan
Made in: China
Finish(es): Walnut Brown (WNB)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝" (43mm at tail)
Top:

  Material: Maple (laminated)
  Binding: Ivory

Back/sides:

  Material: Maple (laminated)

Neck joint:
Set-in
Bridge:
ART-1
Tailpiece:
VT06L trapeze
Pickguard:
Clear plastic
Knob style:
Sure Grip III (gold)
Hardware color:
Gold
Neck
Neck type:
Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Pearl block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
Ibanez ACH8 gold/ ivory (S)
Neck pickup:
Ibanez ACH7 gold/ ivory (S)
Controls:
Master volume / master tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details
SS 3-way
Pickup switching
Controls 2V2T3 hollow
Control layout
