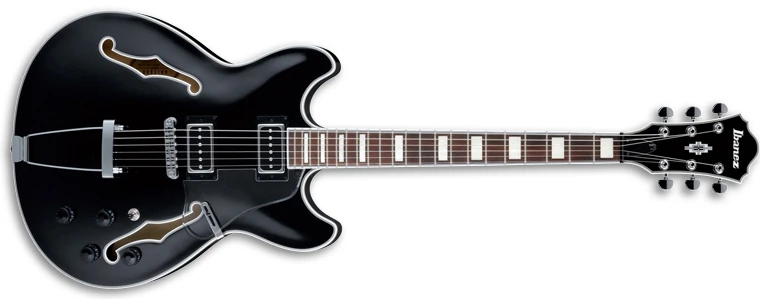

2011 ASR75 BK 12 01
ASR75 Black Red copyright sprite

The ASR75 is an Artcore series hollow body electric guitar model introduced by Ibanez for 2011. It was produced in China.

The ASR75 features a double-cutaway, semi-hollow body design with an arched laminated maple top with ƒ holes and white binding on maple back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with white binding and acrylic block markers. Components include a pair of Ibanez Artcore P90 single coil pickups with chrome rings and black covers, a Tune-o-matic style bridge with trapeze tailpiece, a clear plastic pickguard, a plastic nut, Sure Grip III knobs, and Ibanez tuning machines.

The ASR75V is a similar model with gold hardware and ivory accents.

The ASR75 was discontinued after just one year in production.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for ASR75
Year(s) offered: 2011
Sold in: Japan
Made in: China
Finish(es): Black (BK)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝" (43mm at tail)
Top:
  Material: Maple (laminated)
  Binding: Ivory
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
ART-1
Tailpiece:
VT06L trapeze
Pickguard:
Clear plastic
Knob style:
Sure Grip III (black)
Hardware color:
Chrome
Neck
Neck type:
Artcore
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ white binding
Fingerboard inlays:
Pearl block
Frets:
22 / medium
Nut:
Black plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
SS
Bridge pickup:
Ibanez ACH8 chrome/ black (S)
Neck pickup:
Ibanez ACH7 chrome/ black (S)
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional finishes/ details
SS 3-way
Pickup switching
Controls 2V2T3 hollow
Control layout
