2014 AS93TB TR 12 01

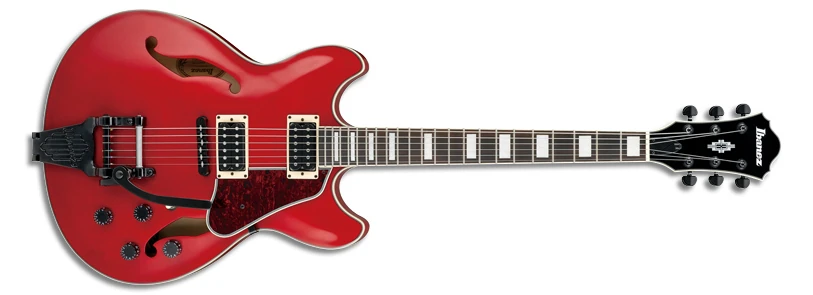

AS93TB Transparent Red (more images) Red copyright sprite

The AS93TB is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez in 2014. It was made in China as a spot model to be sold exclusively by Japanese retailers Shimamura Gakki and Shimokura Gakki.

The AS93TB features a full-sized, double-cutaway, semi-hollow body design with a laminated maple top with ƒ holes and ivory multi-binding on maple back and sides mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with ivory binding and acrylic block position markers. Components include a pair of Ibanez ND2 humbucking pickups with individual volume and tone controls, an ART-2 Tune-o-matic style roller bridge with a Bigsby-style vibrato tailpiece, a plastic nut, speed knobs, a tortoiseshell pickguard and Ibanez tuning machines.

The AS93TG is a similar model with gold hardware. The AS93 is a similar model with a flamed maple body and without the vibrato.

The AS93TB was produced only in 2014.

Specifications

Specifications for AS93TB
Year(s) produced: 2014
Sold in: Japan
Made in: China
Finish(es): Transparent Red (TR)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:

  Material: Maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Maple (laminated)

Neck joint:
Set-in
Bridge:
ART-2 roller (10.5mm string spacing)
Tailpiece:
VBF70 vibrato
Pickguard:
Tortoiseshell
Knob style:
Speed
Hardware color:
Black
Neck
Neck type:
Expressionist AS
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Acrylic block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ND2 bridge (H)
Neck pickup:
Ibanez ND2 neck (H)
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
