2016 AS93L VLS

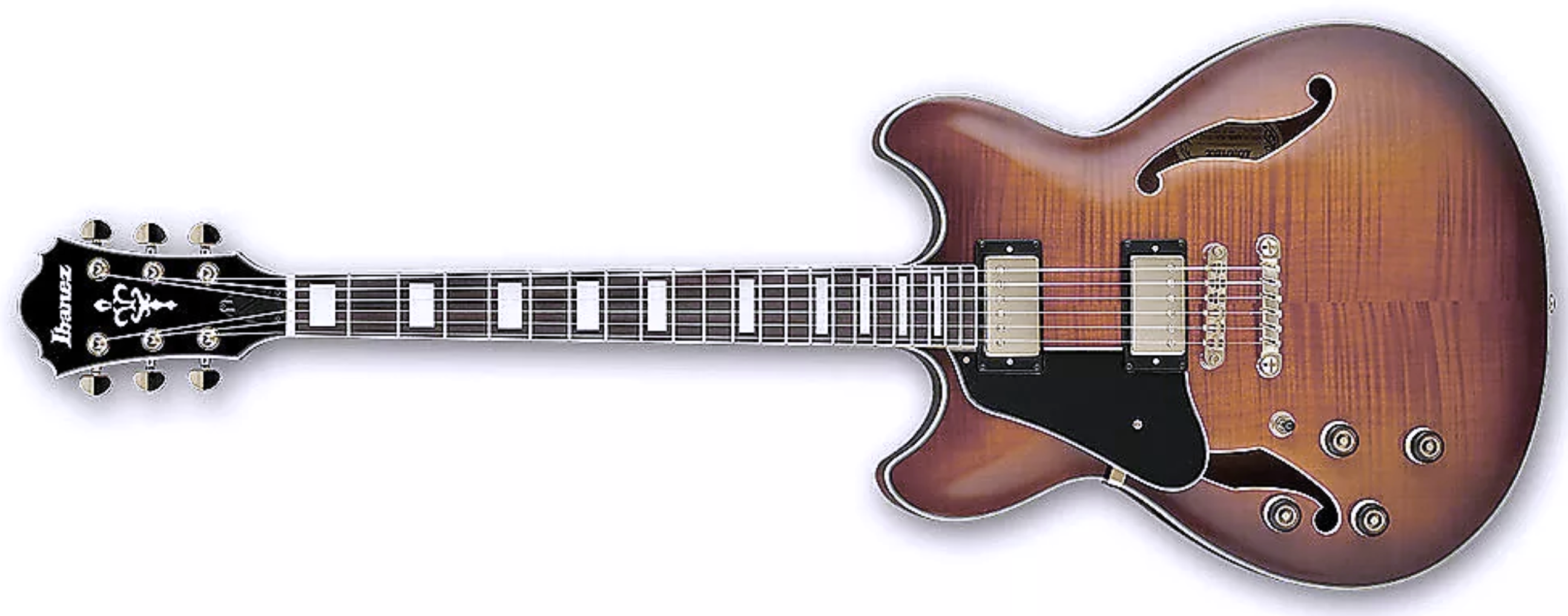

AS93L Violin Sunburst Red copyright sprite

The AS93L is a left-handed Artcore Expressionist series hollow body electric guitar model introduced by Ibanez in mid 2016. It was made in China.

The AS93L features a full-sized, double-cutaway, semi-hollow body design with a laminated flamed maple top with ƒ holes and ivory multi-binding on flamed maple back and sides mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with ivory binding and acrylic block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, Sure Grip III knobs, a black bakelite pickguard and Ibanez tuning machines.

The AS93 is a right-handed version.

The AS93L was discontinued in 2017.

Specifications

Specifications for AS93L
Year(s) produced: 2016–2017
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: China
Finish(es): Violin Sunburst (VLS)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:

  Material: Flamed maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Flamed maple (laminated)

Neck joint:
Set-in
Bridge:
ART-1 (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
Black bakelite
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
Expressionist AS
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Acrylic block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout
