2019 AS93FML VLS 5B 01 en 1.png
AS93FML Violin Sunburst Red copyright sprite.png

The AS93FML is a left-handed Artcore Expressionist series hollow body electric guitar model introduced by Ibanez for 2018. It is made in Indonesia.

The AS93FML features a full-sized, double-cutaway, semi-hollow body design with a laminated flamed maple top with ƒ holes and cream multi-binding on flamed maple back and sides mated to a set-in mahogany and maple neck with a 22-fret ebony fingerboard with cream binding and acrylic block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, a tortoise shell pickguard, Sure Grip III knobs, and Ibanez tuning machines.

For 2019 the mahogany and maple neck was replaced with nyatoh and maple. For 2020 the bridge was swapped to the new Gibraltar Performer. For 2021 the fretboard material was changed to Macassar ebony.

The AS93FM is a right-handed version. The AG95QAL is a related full-hollow body model.

Specifications

Specifications for AS93FML
Model name: AS93FML
Year(s) produced: 2018–2021
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania 2019–2021 / USA
Made in: Indonesia
Finish(es): Violin Sunburst (VLS)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:

  Material: Flamed maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Flamed maple (laminated)

Neck joint:
Set-in
Bridge:
2018–2019: ART-1
2020–2021: Gibraltar Performer (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
Tortoise shell on bakelite w/ ivory binding
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
Expressionist AS
Neck material:
2018: 3-piece mahogany/ maple
2019–2021: 3-piece nyatoh/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
2018–2020: Ebony w/ ivory binding
2021: Macassar ebony w/ ivory binding
Fingerboard inlays:
Acrylic block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle.png
Pickup switching
Controls 2V2T3.png
Controls layout

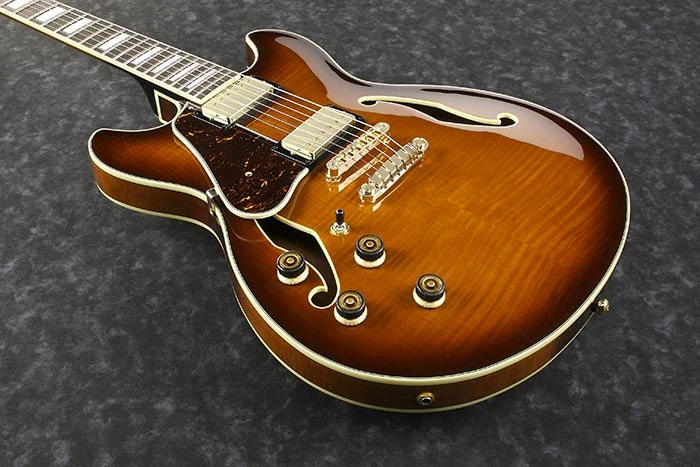

2021 AS93FML VLS 5B 03 front.jpg
Front of body

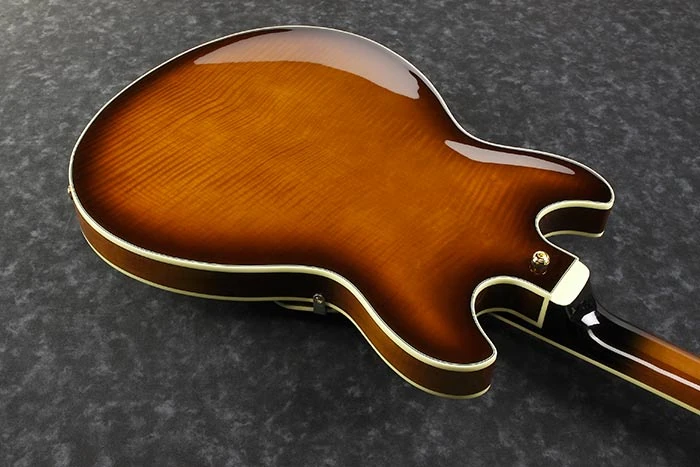

2021 AS93FML VLS 5B 03 back.jpg
Rear of body
