2019 AS93FM TCD 5B 01 en 1

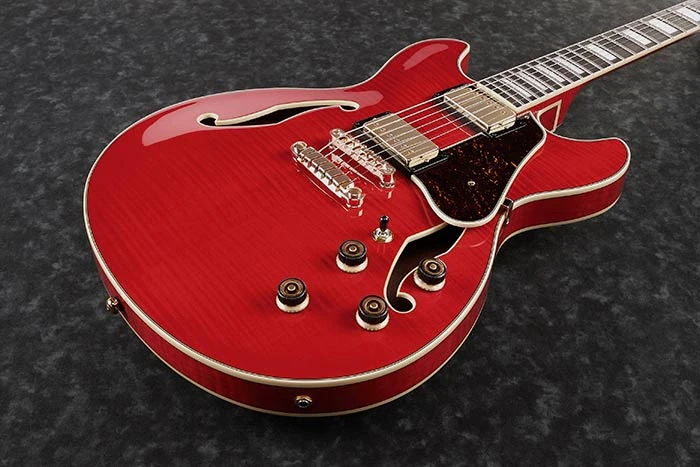

AS93FM Transparent Cherry Red (more images) Red copyright sprite

The AS93FM is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez in 2018. It was made in both China and Indonesia in 2018; Chinese production was halted in mid-2018.

The AS93FM features a full-sized, double-cutaway, semi-hollow body design with a laminated flamed maple top with ƒ holes and ivory multi-binding on flamed maple back and sides mated to a set-in mahogany and maple neck with a 22-fret ebony fingerboard with ivory binding and acrylic block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls, a Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, a tortoise shell pickguard, Sure Grip III knobs, and Ibanez tuning machines.

For 2019 the mahogany and maple neck was replaced with nyatoh and maple. For 2020 the bridge was changed to the new Gibraltar Performer.

The AS93FML is a left-handed version. The AS93ZW is a similar model constructed of zebrawood. The AS83 is a similar model constructed of maple. The AF95FM and AG95QA are related full-hollow body models.

Specifications

Specifications for AS93FM
Year(s) produced: 2018–2020
Sold in: Asia & Africa / China / Europe / Japan / North & South America and Oceania / USA
Made in: China (2018) / Indonesia (2018–2020)
Finish(es): Transparent Cherry Red (TCD) / Violin Sunburst (VLS)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:

  Material: Flamed maple (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Flamed maple (laminated)

Neck joint:
Set-in
Bridge:
2018–2019: ART-1
2020: Gibraltar Performer (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
Tortoise shell on bakelite w/ ivory binding
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
Expressionist AS
Neck material:
2018: 3-piece mahogany/ maple
2019–2020: 3-piece nyatoh/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ ivory binding
Fingerboard inlays:
Acrylic block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional finishes/ details

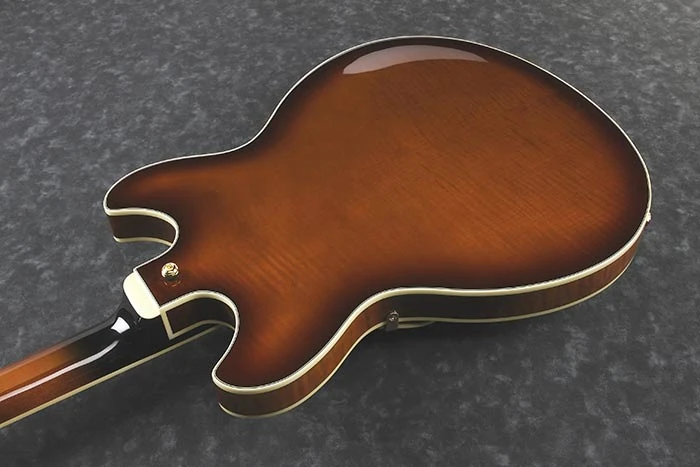

2019 AS93FM VLS 5B 01 en 1
Violin Sunburst
HH 3-way toggle
Pickup switching
Controls 2V2T3
Control layout

Video

Ibanez Hollow Body AS93FM featuring Tom Ibarra

Ibanez Hollow Body AS93FM featuring Tom Ibarra
