2008 AS93C NT 12 01

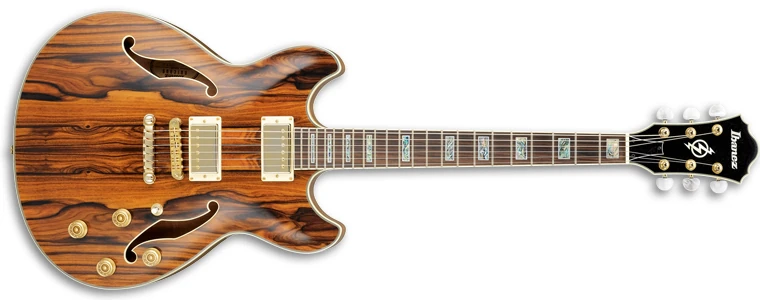

AS93C Natural Red copyright sprite

The AS93C is an Artcore series hollow body electric guitar model introduced by Ibanez for 2008. It was made in China.

The AS93C features a full-sized, double-cutaway, semi-hollow body design with a laminated cocobolo top with ƒ holes and ivory multi-binding on cocobolo back and sides mated to a set-in mahogany and maple neck with a 22-fret rosewood fingerboard with ivory binding and acrylic block position markers. Components include a pair of Ibanez Artcore humbucking pickups with gold covers and individual volume and tone controls, ivory plastic pickup rings, a Tune-o-matic style bridge with a Quik Change tailpiece, a plastic nut, speed knobs, and Ibanez tuning machines.

The AS93 is a similar model with a flamed maple or flamed sycamore body.

This AS93C was discontinued after 2008.

Specifications

Specifications for AS93C
Year(s) produced: 2008
Sold in: Europe
Made in: China
Finish(es): Natural (NT)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝" (43mm at tail)
Top:

  Material: Cocobolo (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Cocobolo (laminated)

Neck joint:
Set-in
Bridge:
ART-1 (10.5mm string spacing)
Tailpiece:
Quik Change III
Knob style:
Speed
Hardware color:
Gold
Neck
Neck type:
Artcore AS
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Abalone block
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez ACH2 (H)
Neck pickup:
Ibanez ACH1 (H)
Controls:
2 volume / 2 tone / 3-way toggle
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle
Pickup switching
Controls 2V2T3 hollow
Control layout
