For other models with the same name, see AS83 (disambiguation).

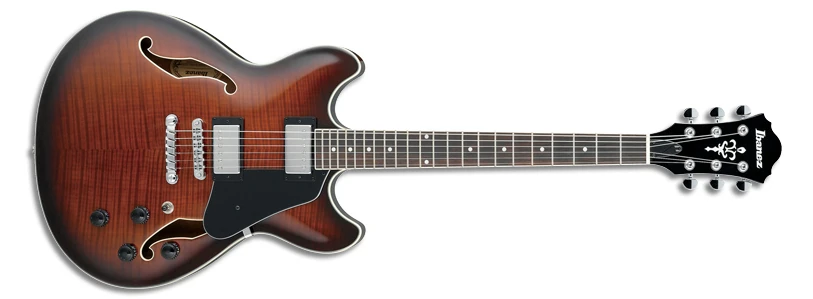

2015 AS83 DVS 12 01.jpg
AS83 Dark Violin Sunburst Red copyright sprite.png

The AS83 is an Artcore Expressionist series hollow body electric guitar model introduced by Ibanez for 2015. It was made in China.

The AS83 features a full-sized, double-cutaway, semi-hollow body design with a laminated flamed sycamore top with ƒ holes and ivory multi-binding on flamed sycamore back and sides mated to a set-in mahogany neck with a 22-fret rosewood fingerboard with ivory binding and acrylic dot position markers. Components include a pair of Ibanez Super 58 humbucking pickups with chrome covers and individual volume and tone controls, black plastic pickup rings, a Tune-o-matic style bridge with a Quik Change tailpiece, an ivory plastic nut, a black bakelite pickguard, Sure Grip III knobs, and Ibanez tuning machines.

This AS83 was discontinued after 2015.

Specifications

Specifications for AS83 (2015)
Model name: AS83 (2015)
Year(s) produced: 2015
Sold in: Japan
Made in: China
Finish(es): Dark Violin Sunburst (DVS)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:

  Material: Flamed sycamore (laminated)
  Binding: Ivory multi-ply

Back/sides:

  Material: Flamed sycamore (laminated)

Neck joint:
Set-in
Bridge:
ART-1 (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
Black bakelite
Knob style:
Sure Grip III (black)
Hardware color:
Chrome
Neck
Neck type:
Expressionist AS
Neck material:
1-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Rosewood w/ ivory binding
Fingerboard inlays:
Acrylic dot
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez w/ half-moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052 (D'Addario EXL140 roundwound)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH 3-way toggle.png
Pickup switching

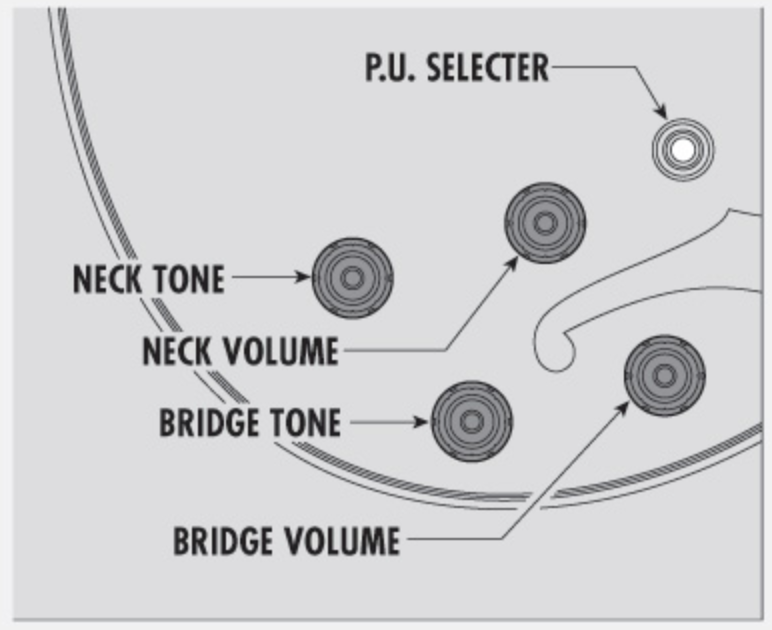

Controls 2V2T3 hollow.png
Control layout
