2019 AS63T SFG 5B 01
AS63T Sea Foam Green Red copyright sprite

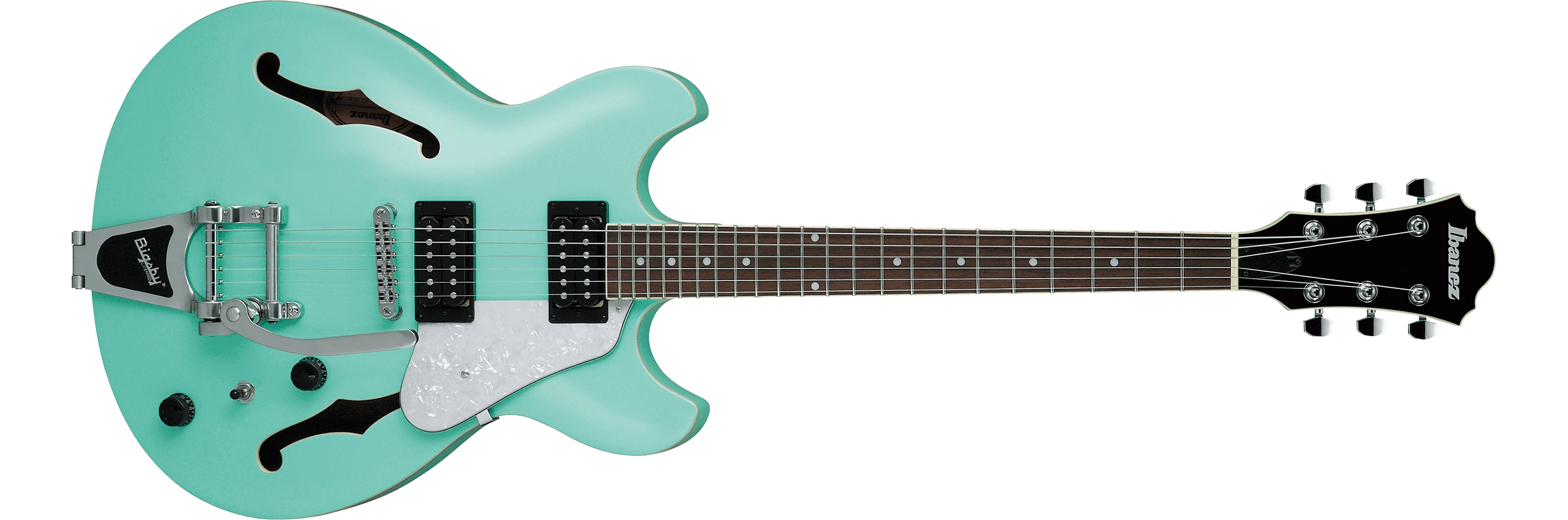

The AS63T is an Artcore series hollow body electric guitar model introduced by Ibanez for 2019. It was produced in Indonesia.

The AS63T was offered in a bright Sea Foam Green finish as part of the new "Artcore Vibrante" line.

The AS63T features a double-cutaway, semi-hollow body design with an arched laminated sapele top with ƒ holes and ivory binding on sapele back and sides mated to a set-in nyatoh neck with a 22-fret laurel fingerboard with ivory binding and acrylic dot position markers. Components include a pair of Ibanez Infinity R humbucking pickups, a Tune-o-matic style roller bridge with a Bigsby vibrato tailpiece, a plastic nut, a white pearloid pickguard, speed knobs, and Ibanez tuning machines.

For 2020 the fretboard was changed to walnut.

The AS63 is a similar model without the vibrato tailpiece.

The AS63T was discontinued after 2020.

Specifications[]

Related content: Artcore series | Models-icon
Specifications for AS63T
Model name: AS63T
Year(s) offered: 2019–2020
Sold in: Americas & Oceania / Asia & Africa / China / Europe / USA
Made in: Indonesia
Finish(es): Sea Foam Green (SFG)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:
  Material: Sapele (laminated)
  Binding: Ivory
Back/sides:
  Material: Sapele (laminated)
Neck joint:
Set-in
Bridge:
ART-2 roller (10.4mm string spacing)
Tailpiece:
Bigsby B70 vibrato
Pickguard:
4-layer: white pearloid/ black/ white/ black
Knob style:
Speed (black)
Hardware color:
Chrome
Neck
Neck type:
AS Artcore
Neck material:
1-piece nyatoh
Scale length:
628mm/ 24¾"
Fingerboard material:
2019: Laurel w/ ivory binding
2020: Walnut w/ ivory binding
Fingerboard inlays:
Acrylic white dot
Frets:
22 / medium
Nut:
Ivory plastic (43mm)
Machine heads:
Ibanez die-cast
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Infinity R bridge (H) passive/ ceramic
Neck pickup:
Ibanez Infinity R neck (H) passive/ ceramic
Controls:
Master volume / master tone / 3-way toggle pickup selector
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Additional details
HH 3-way toggle
Pickup switching
Controls VT3 ARZ
Controls layout
