2015 AS253BM TCR 12 01.jpg
AS253BM Transparent Cherry Red Red copyright sprite.png

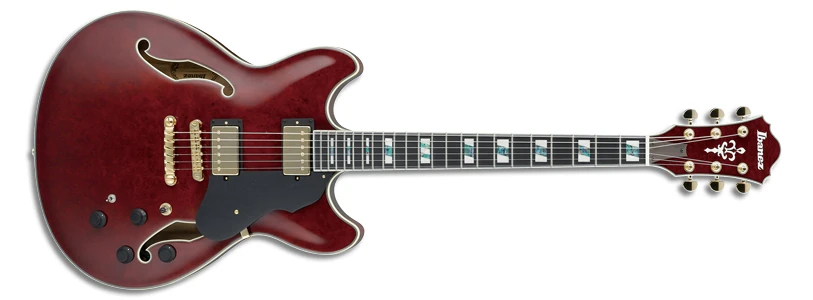

The AS253BM is an Artstar series hollow body electric guitar model introduced by Ibanez in 2015. It is made in China.

The AS253BM features a semi-hollow, double cutaway body design with a burl maple top with ƒ holes and cream multi-binding on burl maple back and sides mated to a set-in mahogany and maple neck with a 22-fret ebony fingerboard with cream binding and acrylic and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls and a Tri-sound switch for the neck, a Tune-o-matic style bridge and tailpiece, a bone nut, a rosewood pickguard, rosewood knobs, and Ibanez tuning machines.

The AS153 is a related model with a flamed maple body and other minor differences. The AF255BM is a related full-hollow body model.

The AS253BM was discontinued after 2016.

Specifications

Specifications for AS253BM
Year(s) produced: 2015–2016
Sold in: USA
Made in: China
Finish(es): Transparent Cherry Red (TCR)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:

  Material: Burl maple
  Binding: 3-ply cream

Back/sides:

  Material: Burl maple

Neck joint:
Set-in
Bridge:
ART-1 (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
Rosewood veneer on bakelite
Knob style:
Rosewood bell
Hardware color:
Gold
Neck
Neck type:
AS Artstar
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ 3-ply cream binding
Fingerboard inlays:
Acrylic/ abalone split block
Frets:
22 / medium (Artstar edge treatment)
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector / Tri-sound switch for neck pickup
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH-3-way single-tri-sound.png
Pickup switching
Controls JSM10.png
Control layout
