2016 AS153B BK 12 01
AS153B Black Red copyright sprite

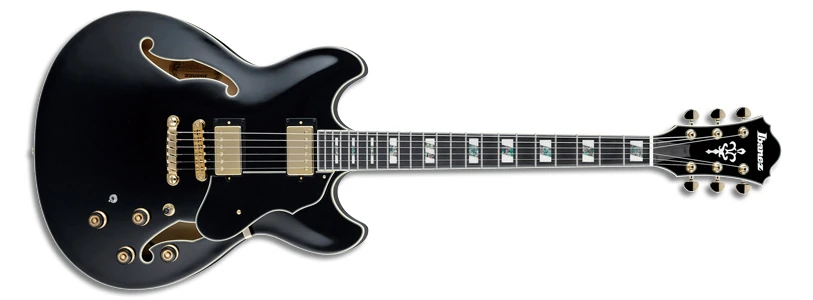

The AS153B is an Artstar series hollow body electric guitar model introduced by Ibanez in 2016. It was made in China.

The AS153B features a semi-hollow, double cutaway body design with a maple top with ƒ holes and cream multi-binding on maple back and sides mated to a set-in mahogany and maple neck with a 22-fret ebony fingerboard with cream binding and pearl/acrylic and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls and a Tri-sound switch for the neck, a Tune-o-matic style bridge and tailpiece, a bone nut, a pickguard with a maple veneer on bakelite painted to match the top, Sure Grip III knobs, and Ibanez tuning machines.

The AS153 is a similar model with a flamed maple body. The AM153 is a related model with a slightly smaller body and a figured bubinga top.

The AS153B was discontinued in 2018.

Specifications

Specifications for AS153B
Year(s) produced: 2016–2018
Sold in: Asia & Africa / Europe
Made in: China
Finish(es): Black (BK)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:

  Material: Maple (laminated)
  Binding: 3-ply cream

Back/sides:

  Material: Maple

Neck joint:
Set-in
Bridge:
ART-1 (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
Maple veneer on bakelite (matching body)
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AS Artstar
Neck material:
3-piece mahogany/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ 3-ply cream binding
Fingerboard inlays:
Acrylic/ abalone split block
Frets:
22 / medium (Artstar edge treatment)
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 (H) passive/alnico
Neck pickup:
Ibanez Super 58 (H) passive/alnico
Controls:
2 volume / 2 tone / 3-way toggle / Tri-sound switch for neck pickup
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images

Additional details
HH-3-way single-tri-sound
Pickup switching
Controls JSM10
Control layout
