2022 AS113T TCD 5B 01

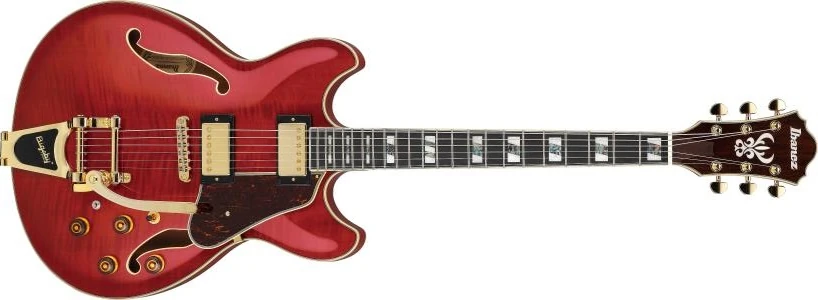

AS113T Transparent Cherry Red Red copyright sprite

The AS113T is an Artstar series hollow body electric guitar model introduced by Ibanez for 2022. It was produced in Indonesia.

The AS113T features a semi-hollow, double cutaway body design constructed of a laminated spruce top with ƒ holes and cream multi-binding on laminated flamed maple sides and back. The set-in nyatoh and maple neck has a 22-fret Macassar ebony fingerboard with binding and acrylic and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls and a Tri-sound switch for the neck, a Tune-o-matic style bridge with a Bigsby vibrato tailpiece, a bone nut, a red tortoise pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AS113 is a similar model without the vibrato tailpiece. The AS103T is a related model with a maple body.

The AS113T was discontinued after 2022.

Specifications[]

Related content: Artstar series | Models-icon
Specifications for AS113T
Model name: AS113T
Year(s) offered: 2022
Sold in: Japan
Made in: Indonesia
Price: SMAP: ¥ 148,500 incl. 10% tax (2022)[1]
Finish(es): Transparent Cherry Red (TCD)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:
  Material: Spruce (laminated)
  Finish: Gloss
  Binding: 3-ply cream
Back/sides:
  Material: Flamed maple (laminated)
  Finish: Gloss
Neck joint:
Set-in
Bridge:
Ibanez ART-2 roller (10.5mm string spacing)
Tailpiece:
Bigsby vibrato
Pickguard:
Red tortoise
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AS Artstar
Neck material:
3-piece nyatoh/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Macassar ebony w/ binding
Fingerboard inlays:
Acrylic/ abalone split block
Frets:
22 / medium nickel silver (Artstar edge treatment)
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics/ case
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector / Tri-sound switch for neck pickup
Output jack:
¼" mono (side mounted)
Recommended gig bag:
IHB541
Included case:
yes

Images[]

Additional details
HH-3-way single-tri-sound
Pickup switching
Controls JSM10
Controls layout

Sources[]

  1. AS113T-TCD product listing, J-Guitar (Japanese retailer), archived July 2025
