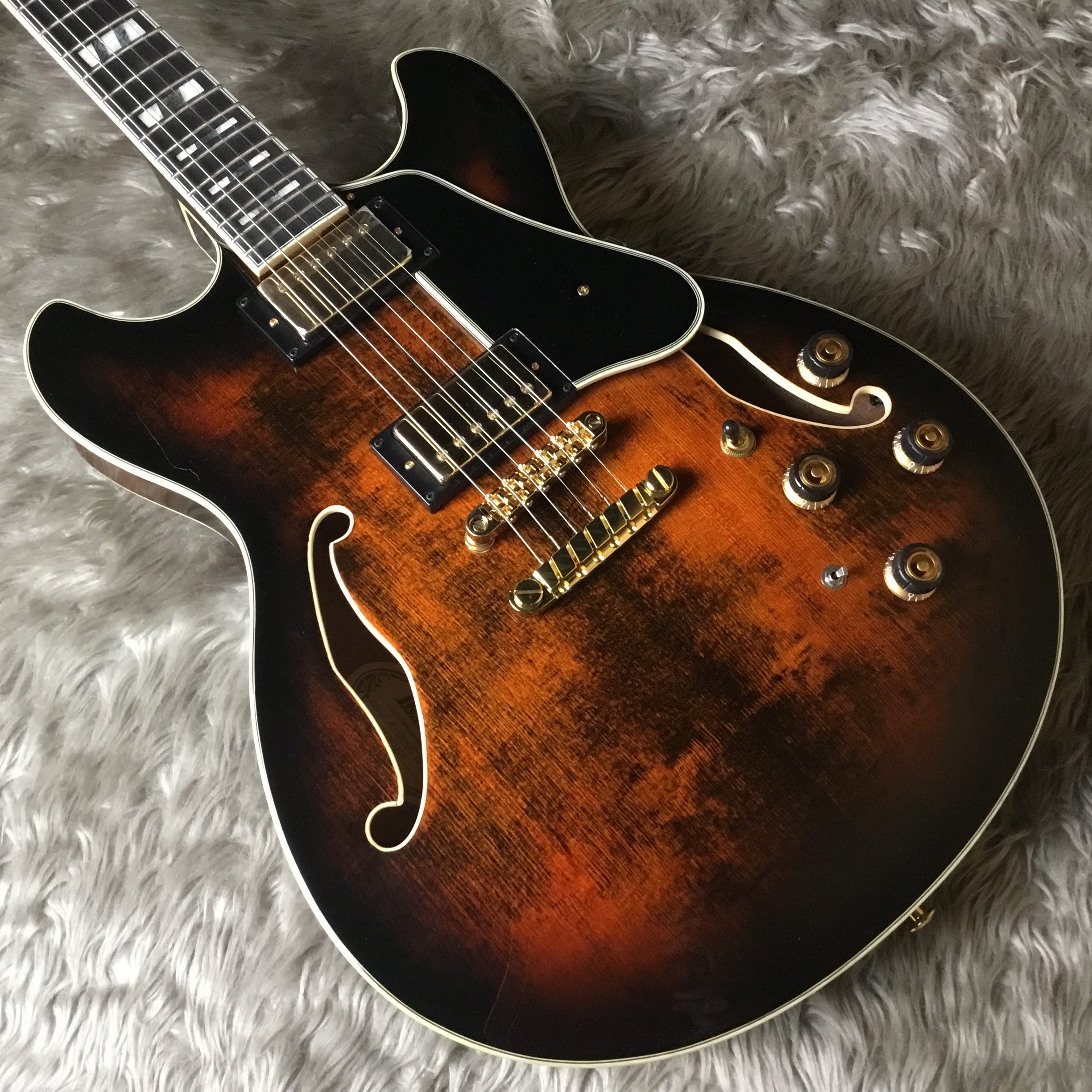

AS113B Tobacco Brown (more images)

The AS113B is an Artstar series hollow body electric guitar model introduced by Ibanez for 2022. It is made in Indonesia as a spot model for sale exclusively through Japanese retailer Shimamura Gakki.

The AS113B features a semi-hollow, double cutaway body design with a spruce top with ƒ holes and cream multi-binding on flamed maple back and sides mated to a set-in nyatoh and maple neck with a 22-fret Macassar ebony fingerboard with binding and acrylic and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls and a Tri-sound switch for the neck, a Tune-o-matic style bridge and tailpiece, a bone nut, a red tortoise pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AS113 is a similar model with a red tortoise pickguard and different finish. The AS103T is a related model with a maple body and a Bigsby vibrato.

Specifications[]

Related content: Artstar series |
Specifications for AS113B
Model name: AS113B
Year(s) offered: 2022
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Price: SMAP: ¥128,000
Finish(es): Tobacco Brown (TBC)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:
  Material: Spruce (laminated)
  Binding: 3-ply cream
Back/sides:
  Material: Flamed maple (laminated)
Neck joint:
Set-in
Bridge:
Gibraltar Artist (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
Black
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AS Artstar
Neck material:
3-piece nyatoh/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Macassar ebony w/ binding
Fingerboard inlays:
Acrylic/ abalone split block
Frets:
22 / medium (Artstar edge treatment)
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector / Tri-sound switch for neck pickup
Output jack:
¼" mono (side mounted)

Images[]

Additional details
Body
Back
Gibraltar Artist bridge
Bone nut
3pc Nyatoh/Maple neck
Pickup switching
Controls layout
