AS113 BS (2022)

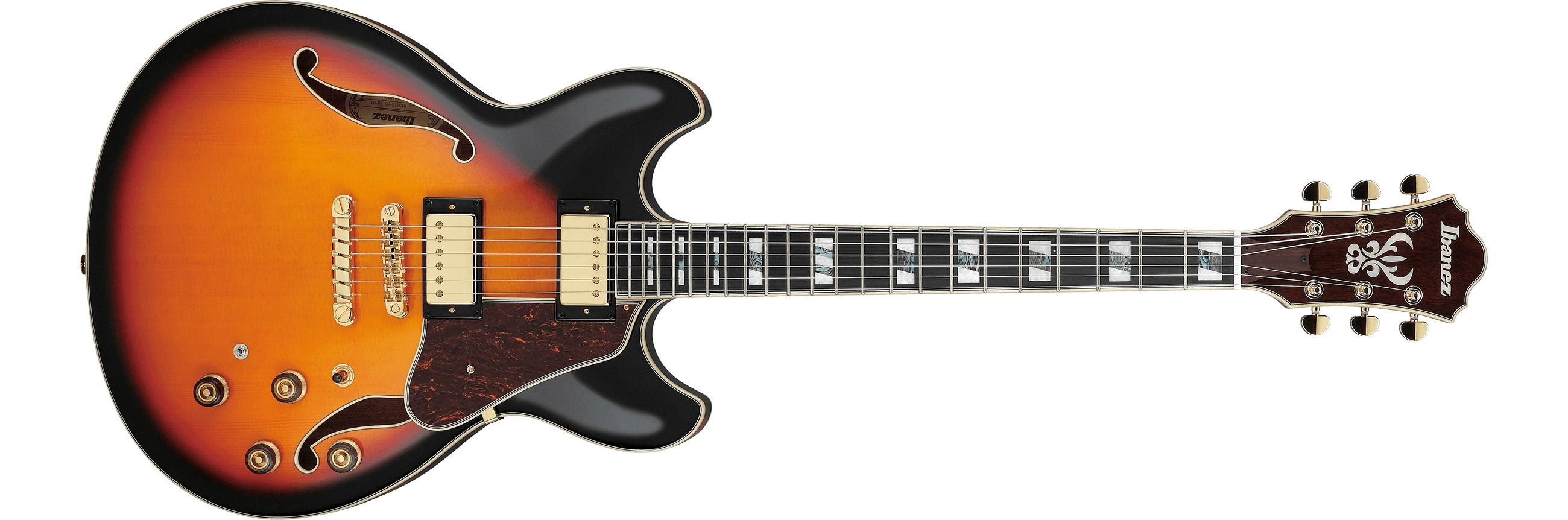

AS113 Brown Sunburst (more images) Red copyright sprite

The AS113 is an Artstar series hollow body electric guitar model introduced by Ibanez for 2022. It is made in Indonesia.

The AS113 features a semi-hollow, double cutaway body design constructed of a laminated spruce top with ƒ holes and cream multi-binding on laminated flamed maple sides and back. The set-in nyatoh and maple neck has a 22-fret Macassar ebony fingerboard with binding and acrylic and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls and a Tri-sound switch for the neck, a Tune-o-matic style bridge and tailpiece, a bone nut, a red tortoise pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AS113B is a similar model with a black pickguard and different finish. The AS103T is a related model with a maple body and a Bigsby vibrato.

Specifications[]

Related content: Artstar series | Models-icon
Specifications for AS113
Model name: AS113
Year(s) offered: 2022–2024
Sold in: Americas & Oceania / Asia & Africa / China / Europe / Japan / USA
Made in: Indonesia
Price: MSRP: JP¥ 155,000 (2023)[1] / JP¥ 185,000 (2024)[2]
Finish(es): Brown Sunburst (BS)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:
  Material: Spruce (laminated)
  Binding: 3-ply cream
Back/sides:
  Material: Flamed maple (laminated)
Neck joint:
Set-in
Bridge:
Gibraltar Artist (10.5mm string spacing)
Tailpiece:
Quik Change III
Pickguard:
Red tortoise
Knob style:
Sure Grip III
Hardware color:
Gold
Neck
Neck type:
AS Artstar
Neck material:
3-piece nyatoh/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Macassar ebony w/ binding
Fingerboard inlays:
Acrylic/ abalone split block
Frets:
22 / medium nickel silver (Artstar edge treatment)
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector / Tri-sound switch for neck pickup
Output jack:
¼" mono (side mounted)
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

AS113 BS 5B rear

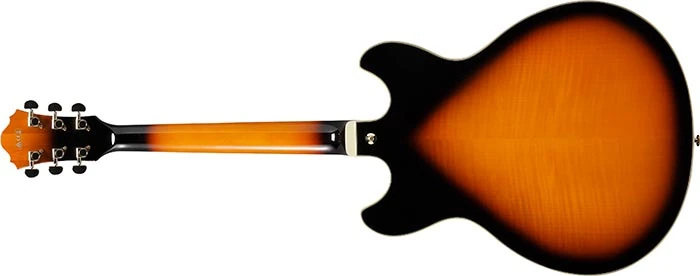

2022 Ibanez AS113 ( Rear: Flamed maple back with a Set-in 3-piece nyatoh/ maple AS Artstar neck & Ibanez die-cast machine heads ) Red copyright sprite
Additional details
AS113 GibraltarArtistBridge

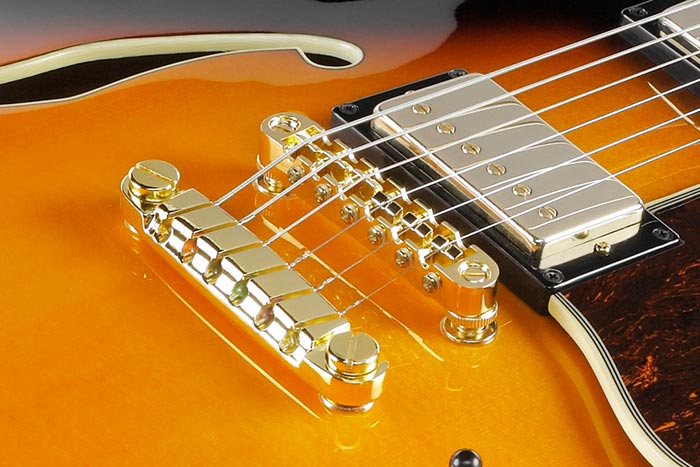

Gibraltar Artist bridge
AS113 nut

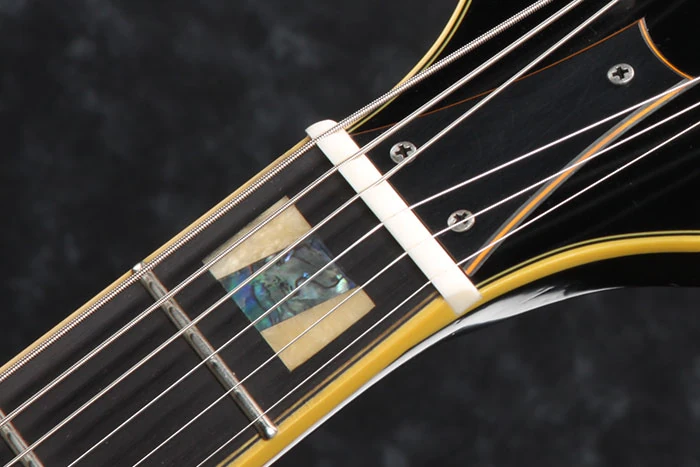

Bone nut
AS113 NECK

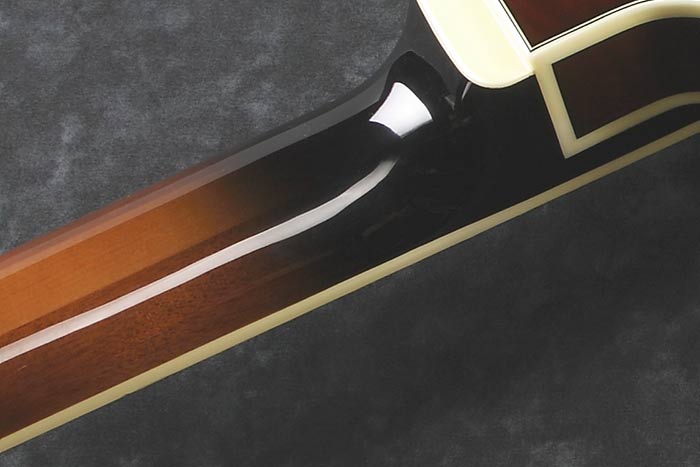

3pc Nyatoh/Maple neck
HH-3-way single-tri-sound

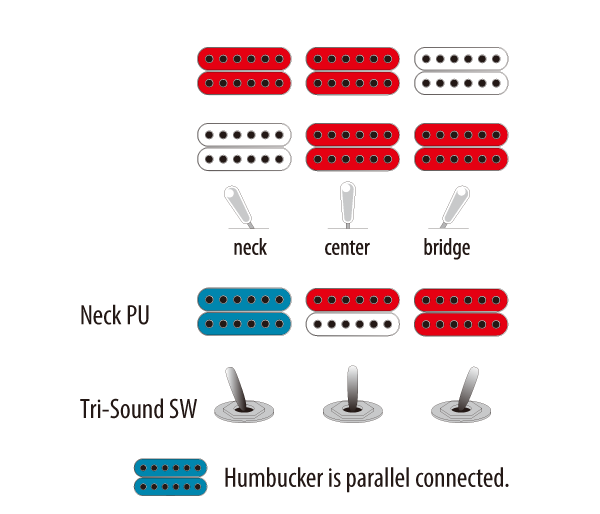

Pickup switching
Controls JSM10

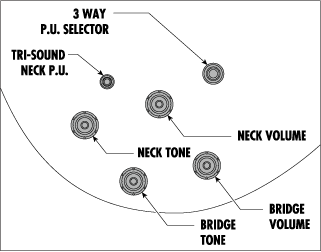

Controls layout

Video[]

AS113-BS demo by Kazuki Isogai


Sources[]

  1. AS113 product page, Ibanez Japan, archived January 2023
  2. AS113 product page, Ibanez Japan, archived January 2024
  • AS113 product page, Ibanez Asia & Africa, archived June 2022
  • AS113 product page, Ibanez Europe, archived January 2024
