2022 AS103T BK 5B 01
AS103T Black Red copyright sprite

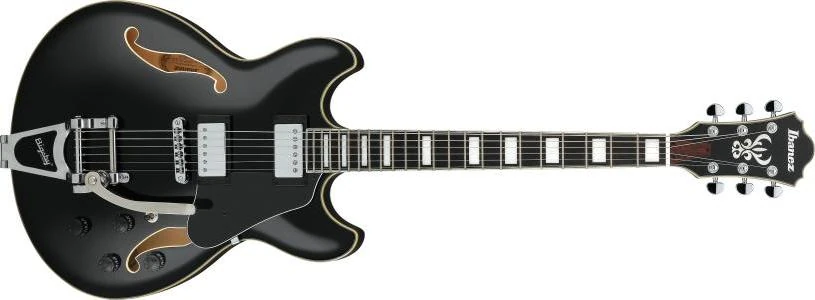

The AS103T is an Artstar series hollow body electric guitar model introduced by Ibanez for 2022. It is made in Indonesia as a spot model available exclusively from Japanese retailer Shimamura Gakki.

The AS103T features a semi-hollow, double cutaway body design with a maple top with ƒ holes and cream multi-binding on maple back and sides mated to a set-in nyatoh and maple neck with a 22-fret Macassar ebony fingerboard with binding and acrylic and abalone split block position markers. Components include a pair of Ibanez Super 58 humbucking pickups with gold covers and individual volume and tone controls and a Tri-sound switch for the neck, a roller bridge and Bigsby vibrato tailpiece, a bone nut, a black pickguard, Sure Grip III knobs, and Ibanez tuning machines.

The AS113 is a related model with a spruce top on flamed maple back and sides and a standard stop tailpiece.

The AS103T was produced only in 2022.

Specifications[]

Related content: Artstar series | Models-icon
Specifications for AS103T
Model name: AS103T
Year(s) offered: 2022
Sold in: Japan
Made in: Indonesia
Finish(es): Black (BK)
Body
Body type:
Hollow body
Dimensions:
  Length: 489mm / 19¼"
  Width: 400mm / 15¾"
  Depth: 67mm / 2⅝"
Top:
  Material: Maple (laminated)
  Binding: 3-ply cream
Back/sides:
  Material: Maple (laminated)
Neck joint:
Set-in
Bridge:
Ibanez ART-2 roller (10.5mm string spacing)
Tailpiece:
Bigsby B70 vibrato
Pickguard:
Red tortoise
Knob style:
Sure Grip III
Hardware color:
Chrome
Neck
Neck type:
AS Artstar
Neck material:
3-piece nyatoh/ maple
Scale length:
628mm/ 24¾"
Fingerboard material:
Macassar ebony w/ cream binding
Fingerboard inlays:
Acrylic/ abalone split block
Frets:
22 / medium (Artstar edge treatment)
Nut:
Bone (43mm)
Machine heads:
Ibanez die-cast w/ half moon buttons
String gauge (factory):
.010/.013/.017/.030/.042/.052
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)
Electronics
Pickup configuration:
HH
Bridge pickup:
Ibanez Super 58 bridge (H) passive/alnico
Neck pickup:
Ibanez Super 58 neck (H) passive/alnico
Controls:
Two volumes / two tones / 3-way toggle pickup selector / Tri-sound switch for neck pickup
Output jack:
¼" mono (side mounted)

Images[]

Additional details
AS113 nut
Bone nut
AS113 NECK
3pc Nyatoh/Maple neck
HH-3-way single-tri-sound
Pickup switching
Controls JSM10
Controls layout
