For the more recent model with the same name, see AS100 (1987–1990).
AS100 (1979)

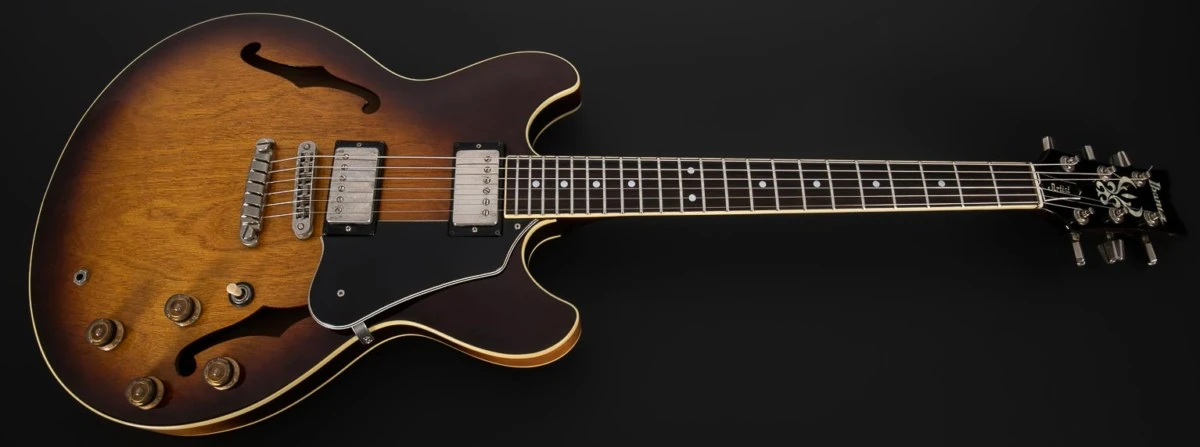

AS100 Antique Violin "1979" (more images) Red copyright sprite

The AS100 is a hollow body electric guitar model introduced by Ibanez for 1979. It was made in Japan by FujiGen and replaced the similar 2629.

The AS100 features a semi-hollow, double cutaway body with a laminated maple or birch top with ƒ holes and ivory binding on maple or birch back and sides with a hard rock maple center block mated to a set-in mahogany neck with a 22-fret ebony fingerboard with ivory binding and pearl dot position markers. Components include a pair of Ibanez Super 58 or Super 70 humbucking pickups with chrome covers and individual volume and tone controls, black pickup rings, a Tune-o-matic style ST bridge, a Quik Change II tailpiece, a bone nut, a black pickguard, Sure Grip II knobs, and Smooth Tuner machine heads.

Several changes were introduced for 1982 including a mahogany neck, Ibanez Super 58 pickups and Sure Grip knobs

The AS50 is a related model with a slightly smaller body, rosewood fretboard and different pickups. The AS200 is a related model with a flamed maple body and different fretboard inlays.

The AS100 was discontinued after 1982. The similar AS80 was introduced for 1983.

Specifications[]

Related content: AS models | Artist series | Models-icon
Specifications for AS100 (1979–1982)
Model name: AS100 (1979–1982)
Year(s) offered: 1979–1982
Sold in: Europe / USA
Made in: Japan
Finish(es): Antique Violin Sunburst (AV) / Cherry (CH) 1981–1982
Body
Body type:
Hollow body
Dimensions:
  Length: 480mm / 16½"[1]
  Width: 406mm / 13⅞"[1]
  Depth: 44mm / 1¾"
Top:
  Material: Maple or Birch (laminated)
  Binding: Ivory
Back/sides:
  Material: Maple or Birch (laminated)
Neck joint:
Set-in
Bridge:
ST
Tailpiece:
Quik Change
Pickguard:
Black bakelite
Knob style:
Sure Grip gold
Hardware color:
Nichrome
Neck
Neck type:
Artstar AS
Neck material:
3-piece mahogany
Scale length:
628mm/ 24¾"
Fingerboard material:
Ebony w/ ivory binding
Fingerboard inlays:
Pearl dot
Frets:
22 / medium nickel silver (VelveTouch edge treatment)
Nut:
Bone (43mm)
Machine heads:
VelveTune II
Electronics/ Strings
Pickup configuration:
HH
Bridge pickup:
1979–1980: Ibanez Super 58 or Super 70 (H)
1981–1982: Ibanez Super 58 (H) passive/ Alnico III
Neck pickup:
1979–1980: Ibanez Super 58 or Super 70 (H)
1981–1982: Ibanez Super 58 (H) passive/ Alnico III
Controls:
Two volumes / two tones / 3-way toggle pickup selector
Output jack:
¼" mono (face mounted)
Factory tuning:
1E,2B,3G,4D,5A,6E (E Std.)

Images[]

Other finishes

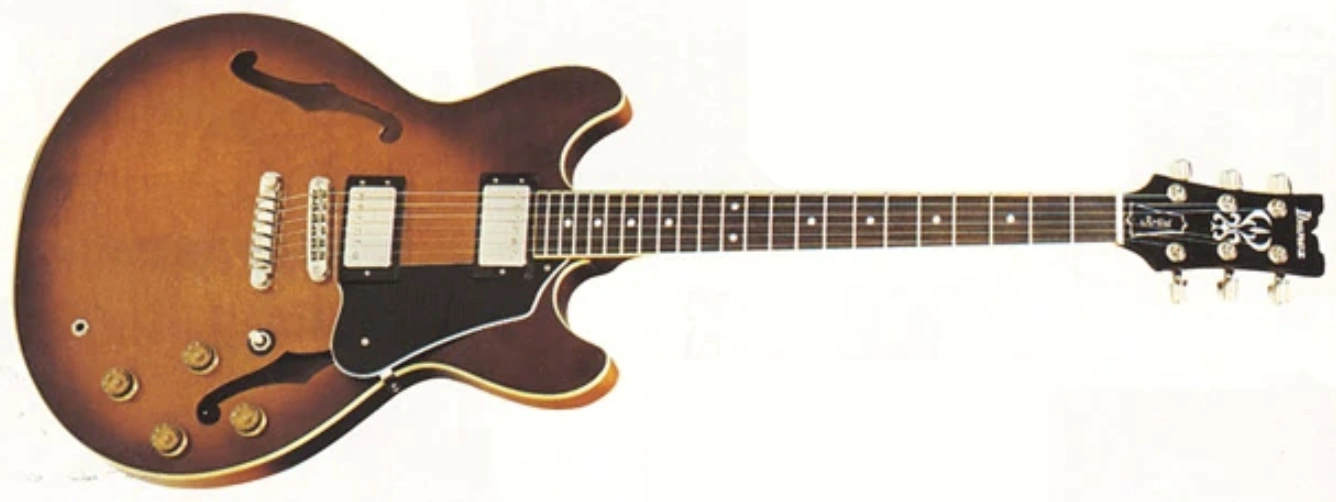

1980 AS100 AV
Antique Violin (catalog 1980)

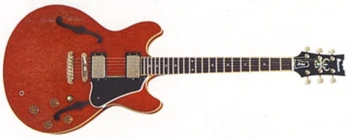

1981 AS100 CH
Cherry
Additional details

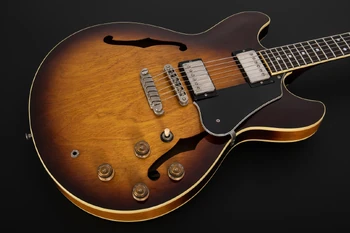

AS100 front
Front of body (AV) 1979

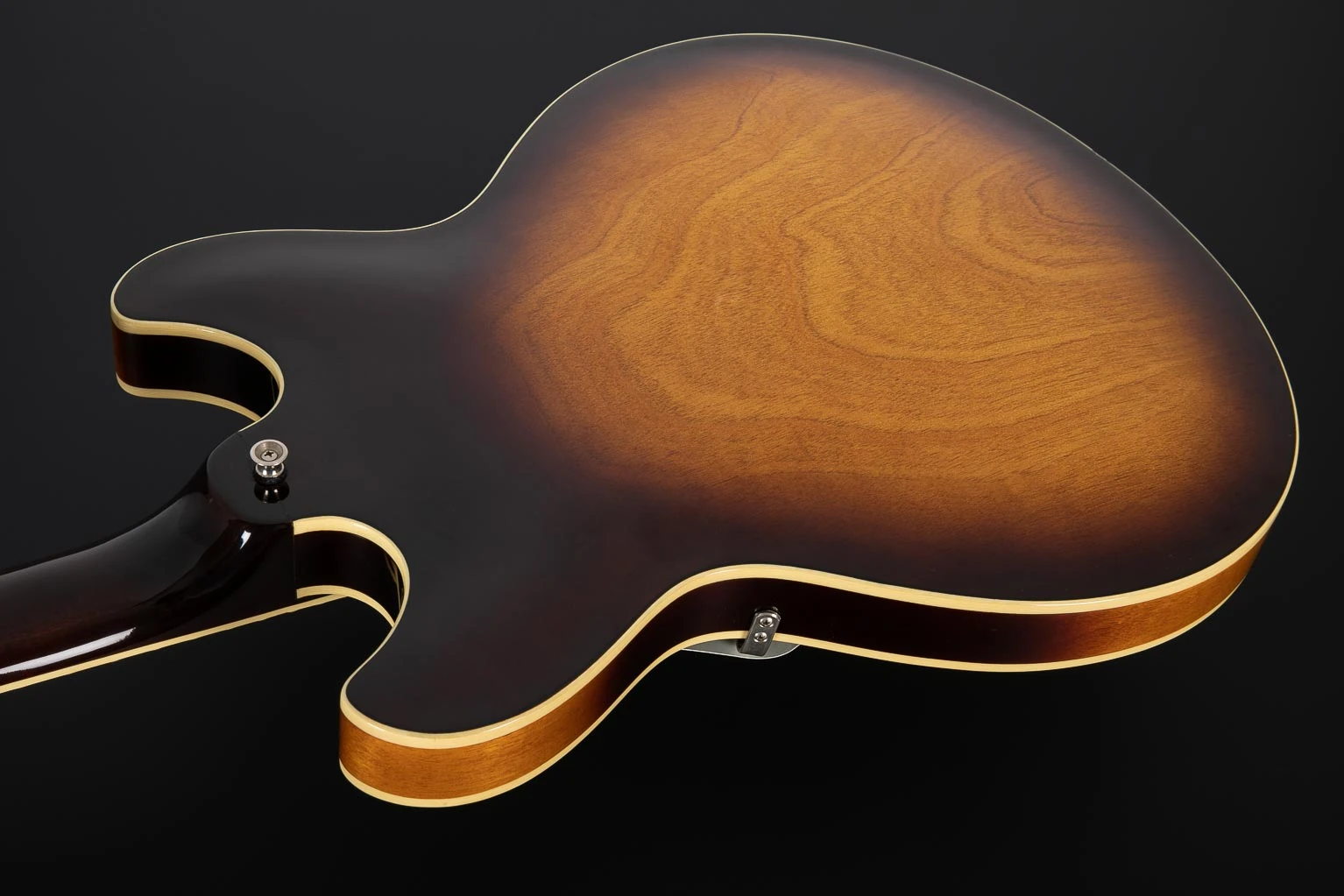

AS100 rear
Rear of body (AV) 1979

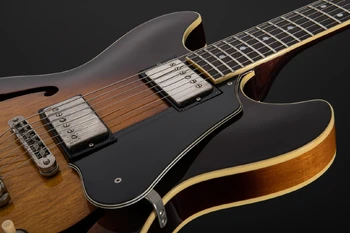

AS100 pu-pg
Super 70 pickups and pickguard

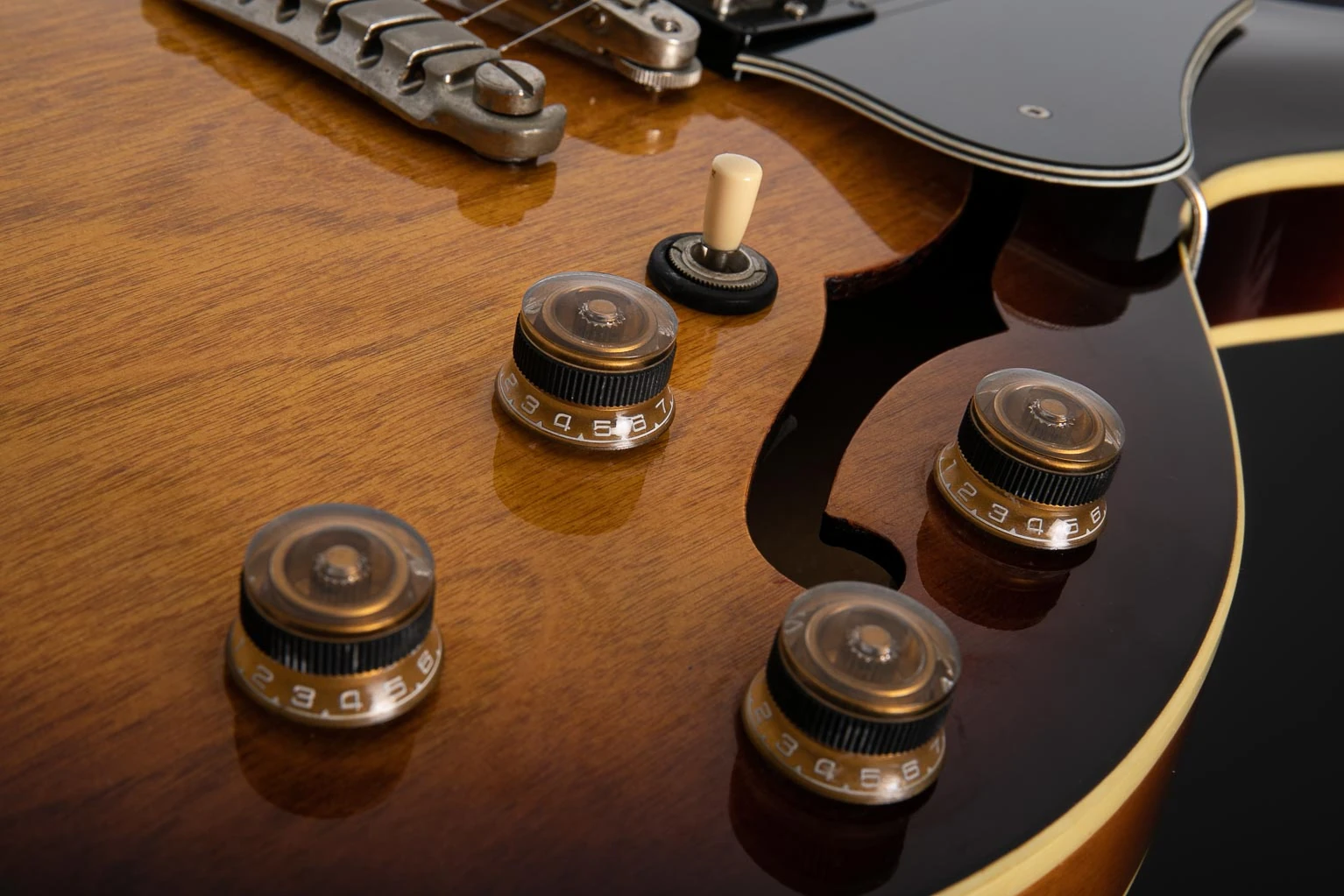

AS100 controls
Controls

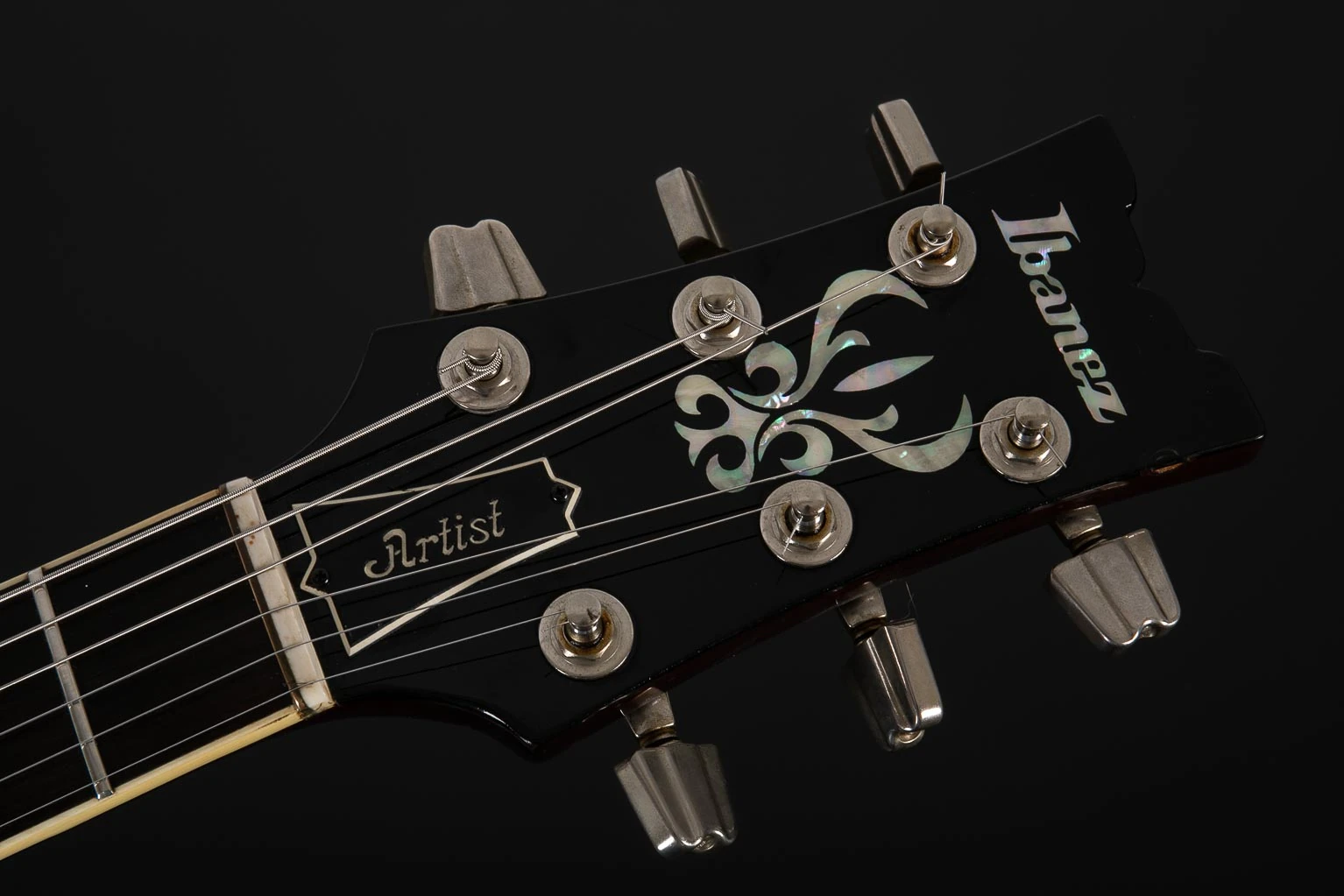

AS100 headstock
Headstock
HH 3-way toggle
Pickup switching
Controls 2V2T3 1982-AS50-AS100
Control layout
